Subsea Multiphase Pump (MPP)

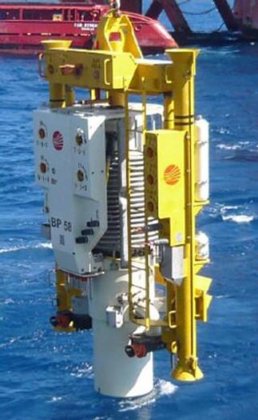

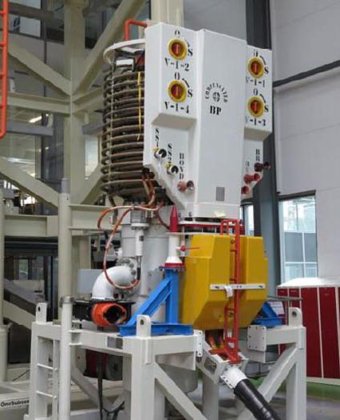

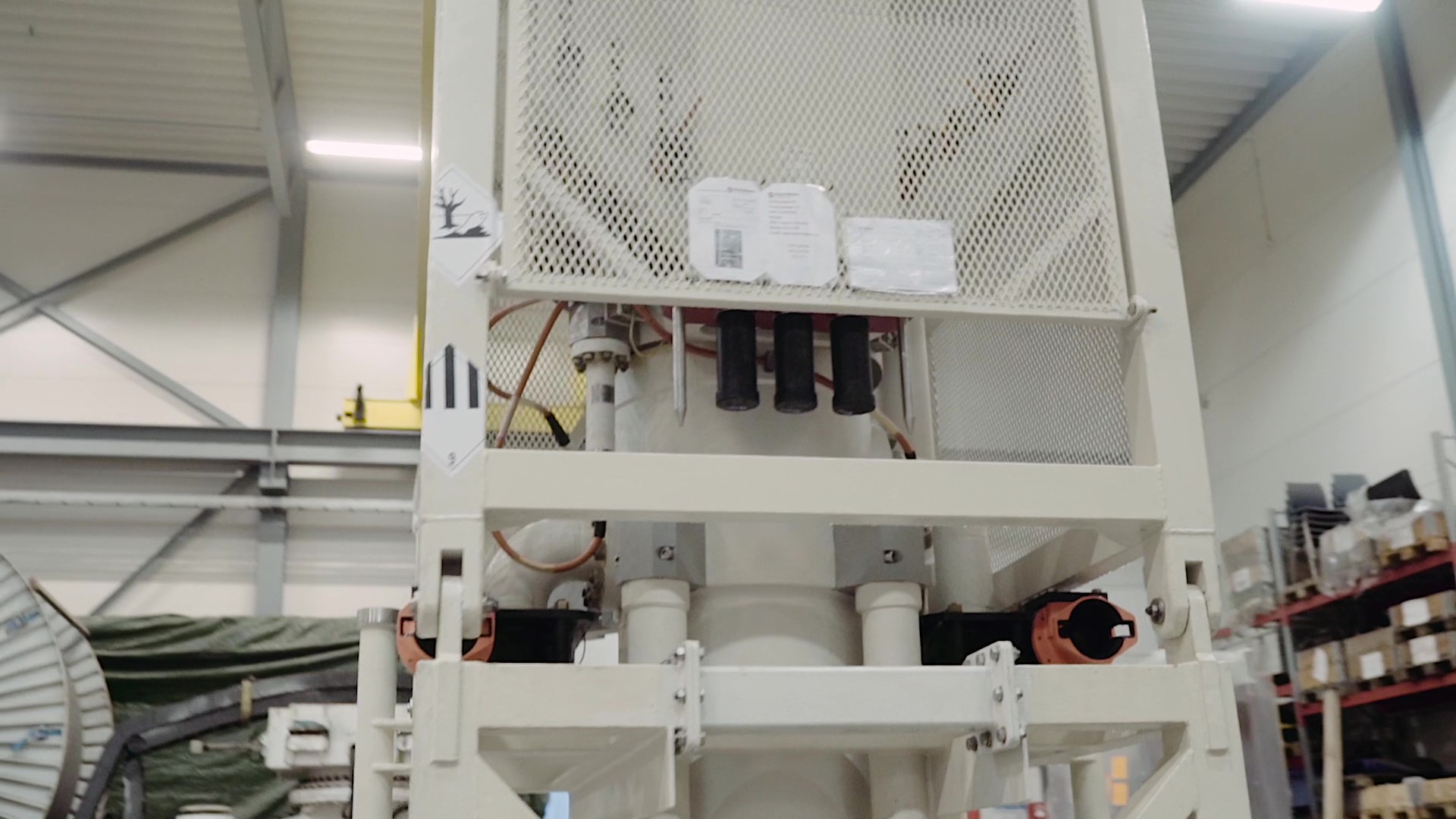

 Framo Multiphase Pump (MPP) housed within the Framo Single Station (FSS). The pump is supplied with its Running Tool, High-Voltage Power Jumper, HV cables, and associated interface equipment. The unit has been overhauled, cleaned, and fully preserved (2014) and has remained in controlled indoor storage.

Key Technical Details

OEM: Framo Engineering
Condition: Used, overhauled, cleaned, preserved

Motor & Pump

• Integrated pressure-balanced motor + helico-axial pump
• Motor rated output: 1,100 kW
• Voltage: 6,000 V
• Speed: 3,562 rpm
• Rated current: 138 A
• Pump type: Poseidon helico-axial, up to 6 stages
• Differential pressure: 50 mbar – 5,000 mbar

Operating Parameters

• Pressure: 5–200 Barg
• Temperature: 70–110°C
• Flow rate: 90,000 bpd (≈ 9,937 L/min)
• Water depth rating: 3000 m

Size & Weight

• Dimensions: 4.44 m × 1.77 m OD
• Dry weight (oil-filled): 15,700 kg
• Wet weight (calculated): 13,700 kg

Included Ancillary Equipment

• MPP Transportation Skid

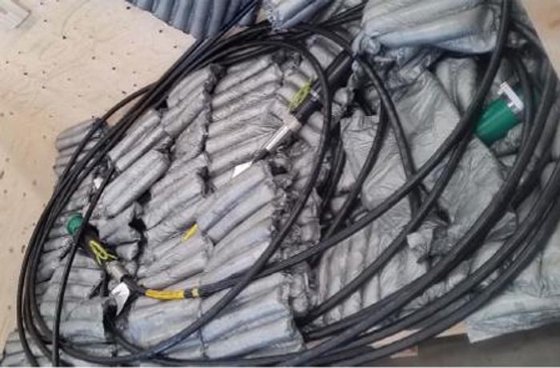

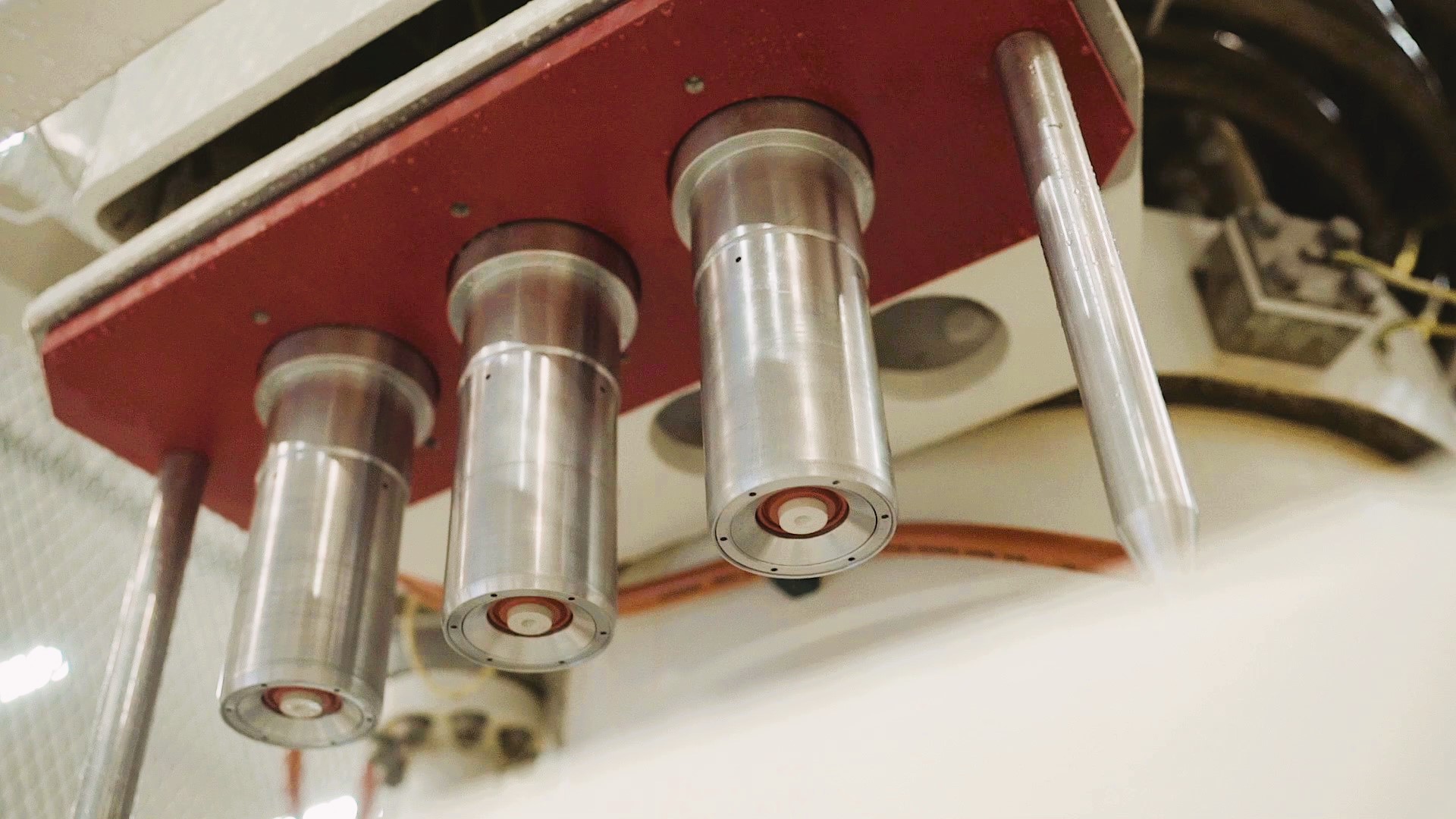

• 4 × 10kV receptacles with 20 m of 150 mm² cable

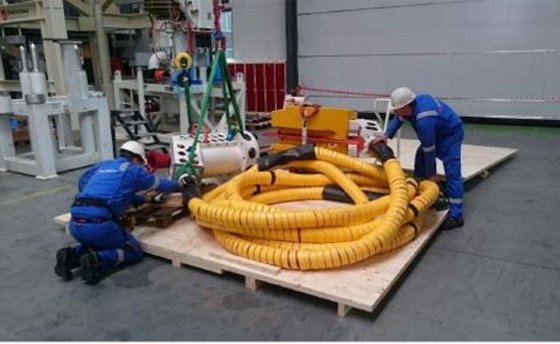

• MPP Power Jumper with Siemens Spectron 10 pressure-compensated connectors
• Umbilical Termination Head (UTA insert)
• MPP Power Jumper Dummy

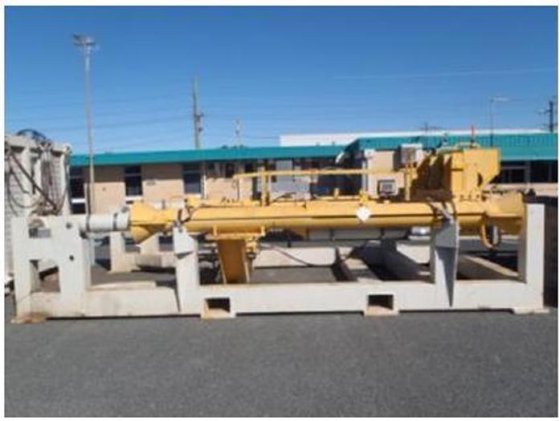

• MPP Skid-Mounted Running Tool

Availability

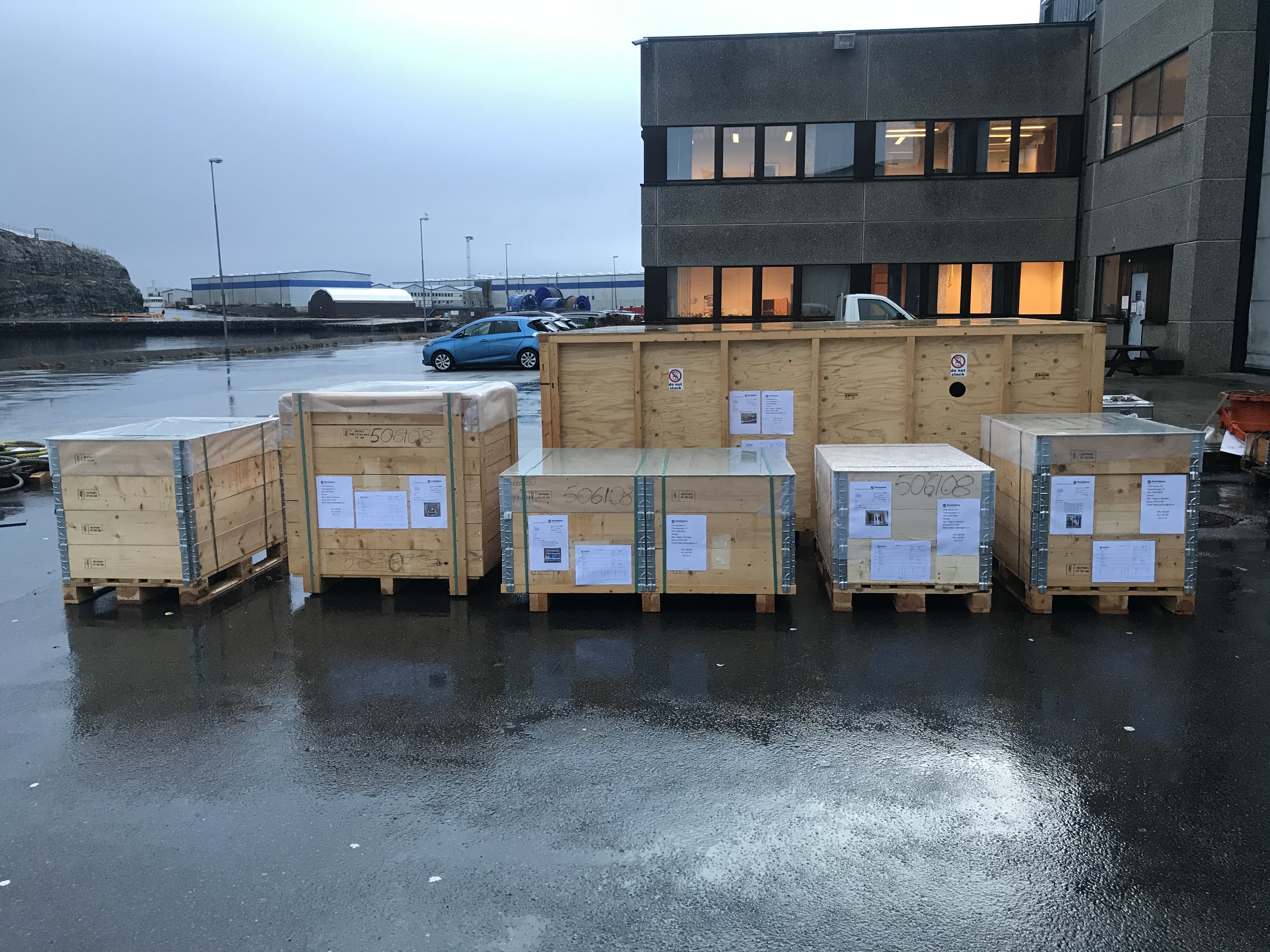

• Stored in Norway (main equipment)
• Running Tool stored in Perth, Australia
• Full MRB and documentation package available
• Ready for immediate mobilisation
