Exail Ramses & Canopus LBL/ASBL array

Exail Ramses & Canopus LBL/ASBL Array

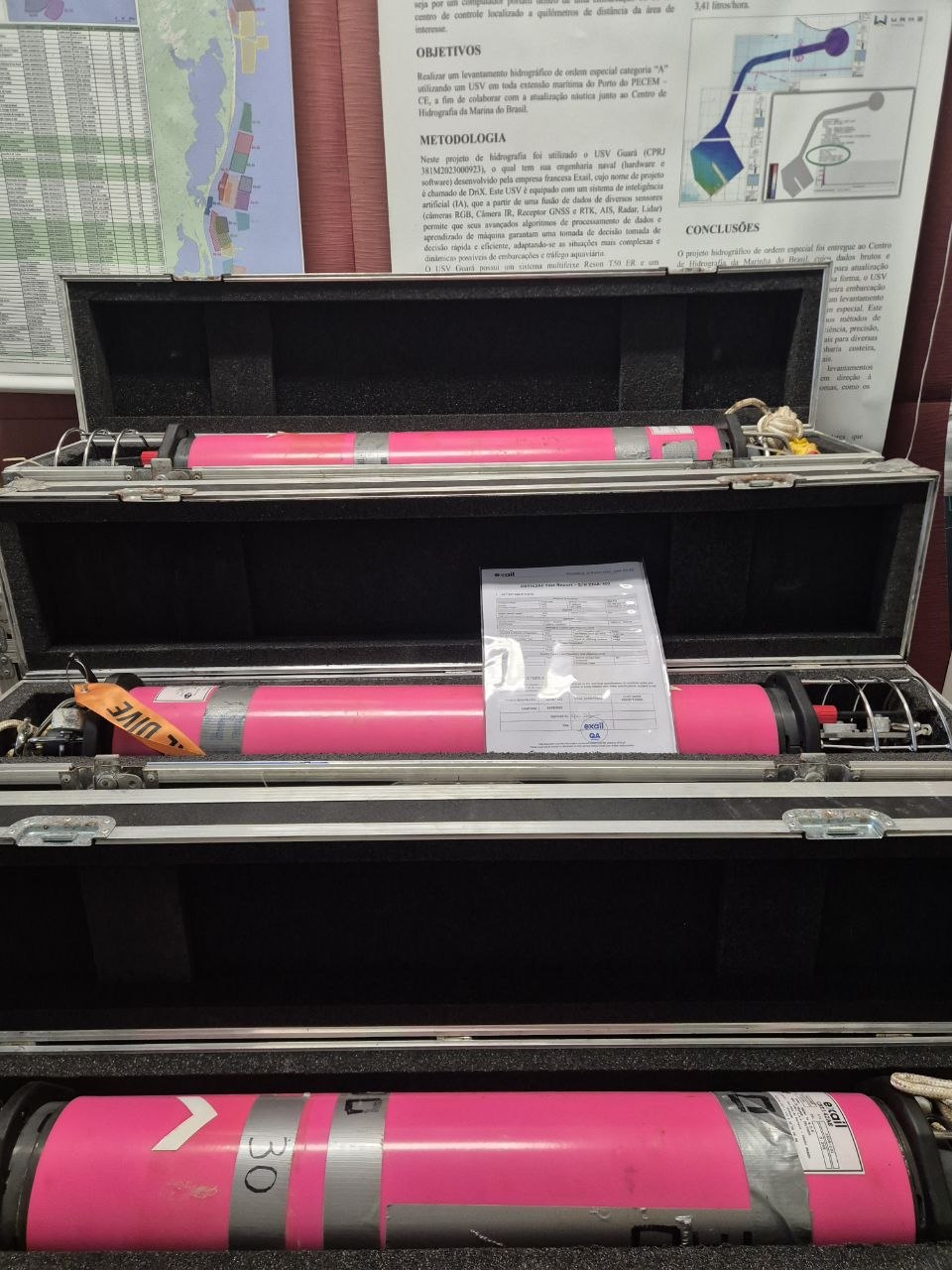

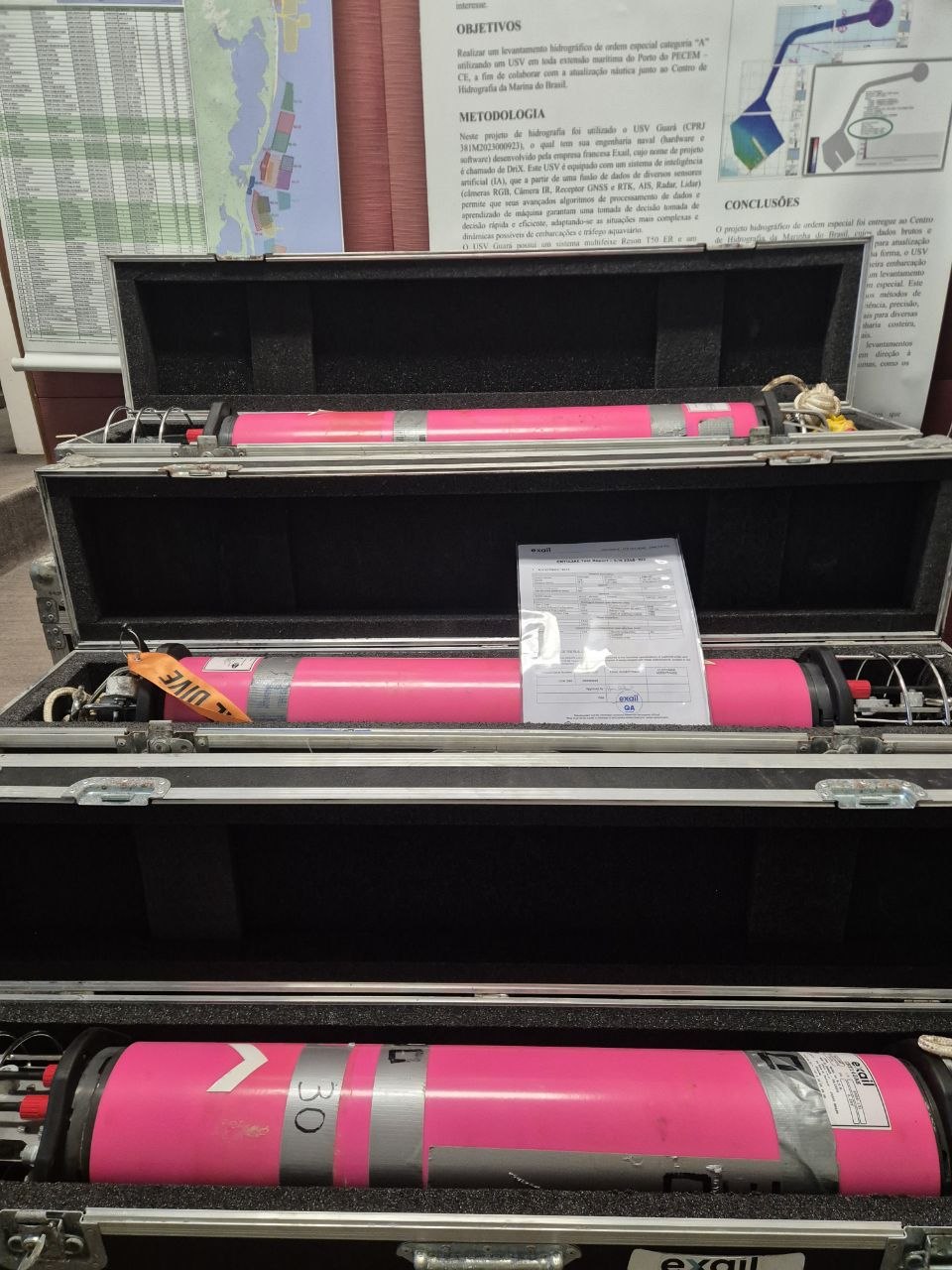

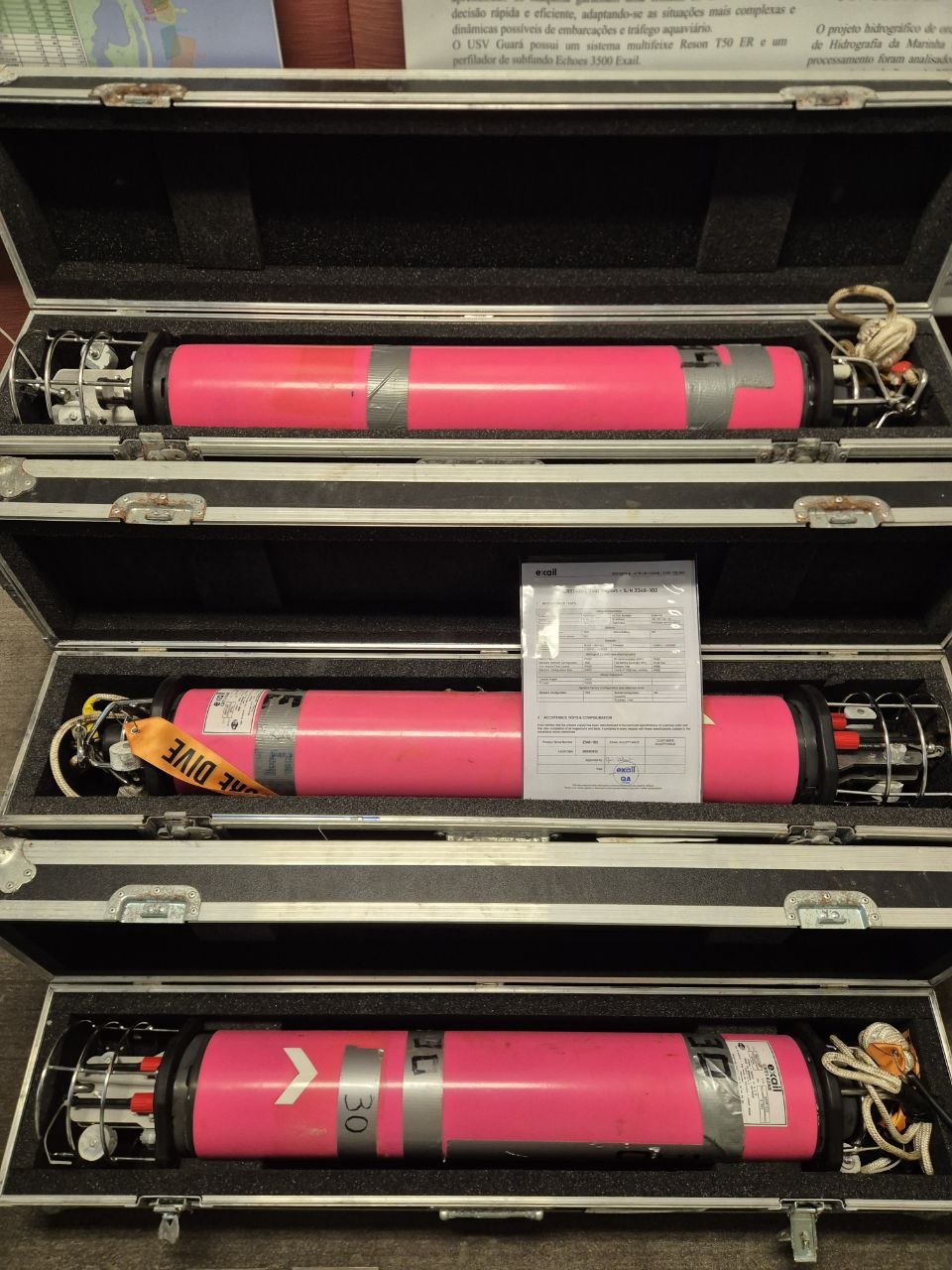

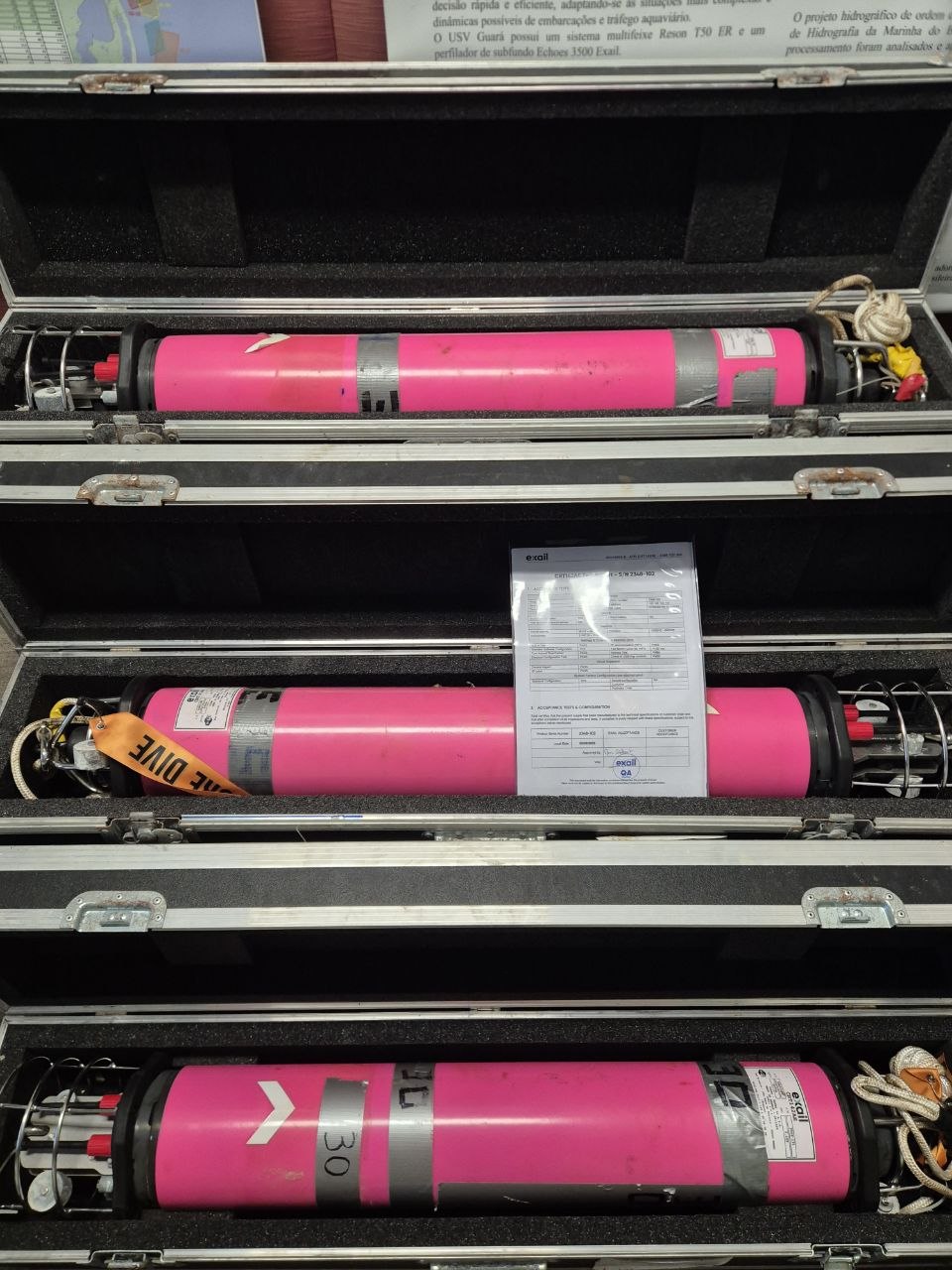

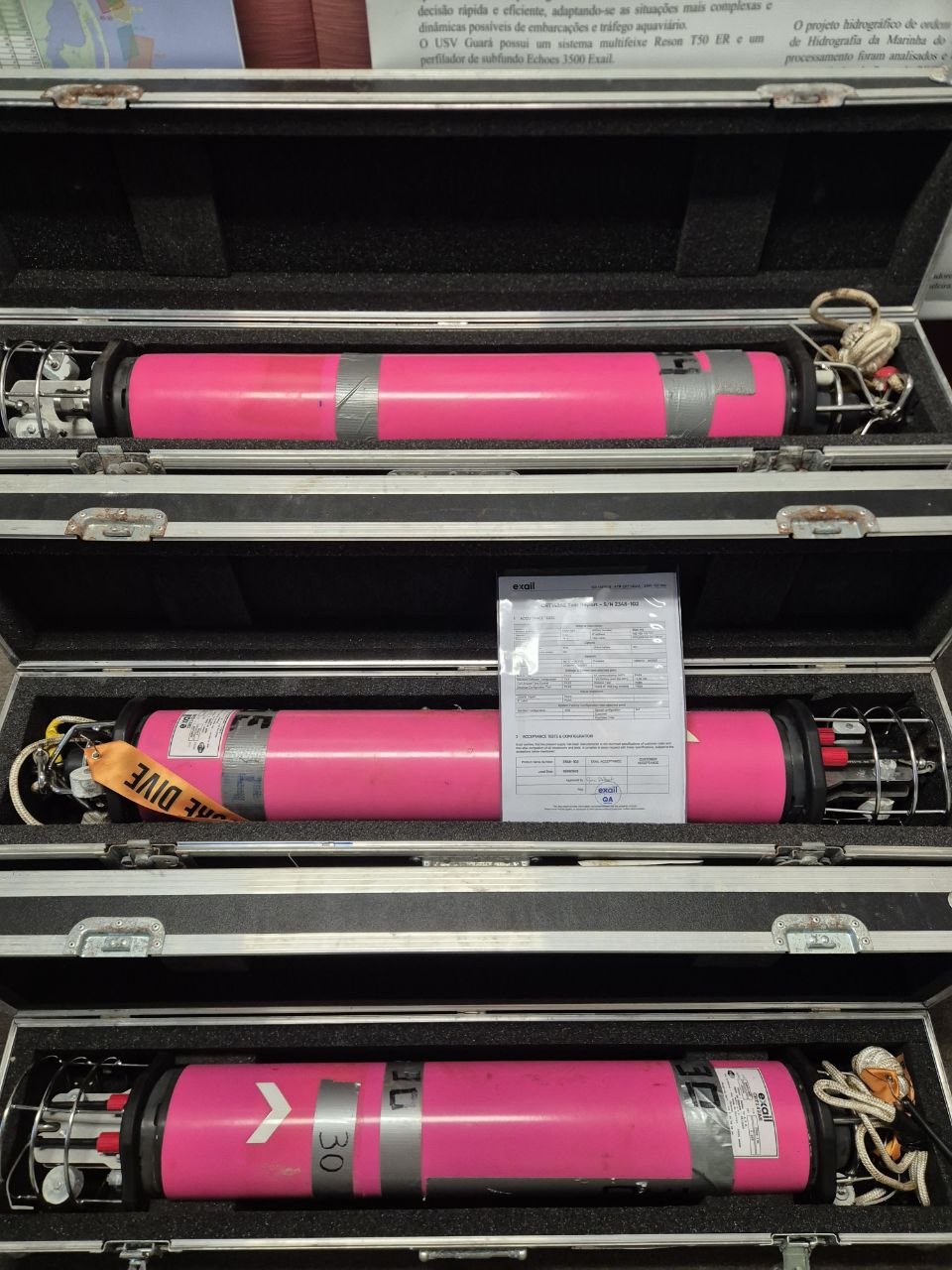

1pc Ramses transceiver & 10 pcs Canopus transponders available for rent ex-Brazil, worldwide shipping available.

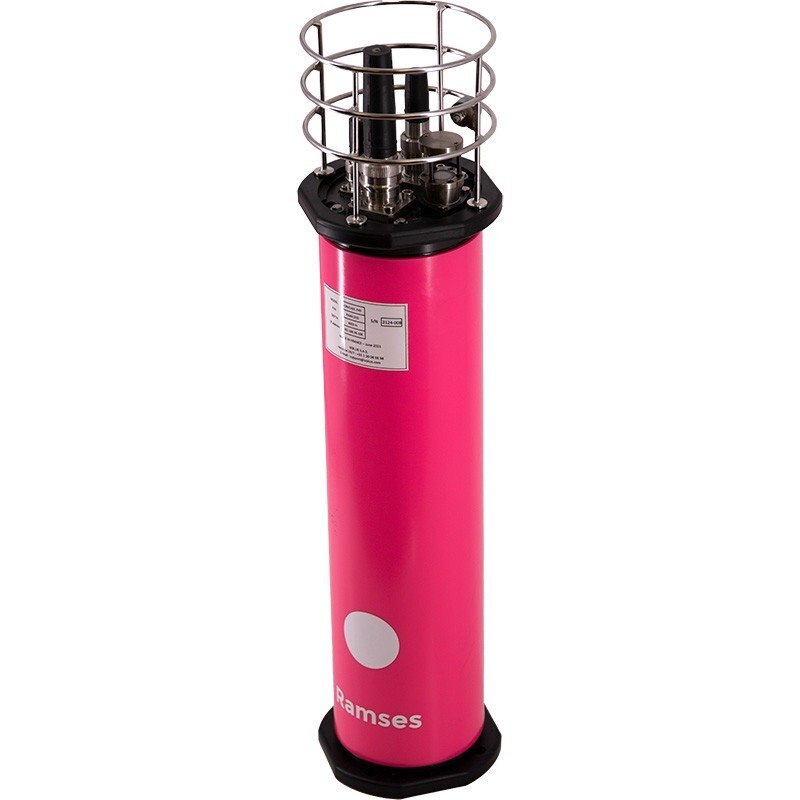

Ramses Transceiver Specs

• MF band (18-36 kHz)
• omni-directional transducer
• (Tx level 196 dB re 1 µPa @1m).
• Position accuracy 0.10 m (standard LBL with 4 transponders or INS-aided with 2);
• ranging precision 0.01 m (1σ),
• max range 4 km.
• Sensors include:
  • SV probe (1375-1900 m/s, 0.020 m/s),
  • pressure (0.03% FS),
  • temperature (0.1°C).
• Power: 12-36 VDC input (5W avg, 50W peak comm);
• aluminum build,
• Weight 16/6 kg (air/water),
• 4000 m depth,
• size Ø180 x 727 mm

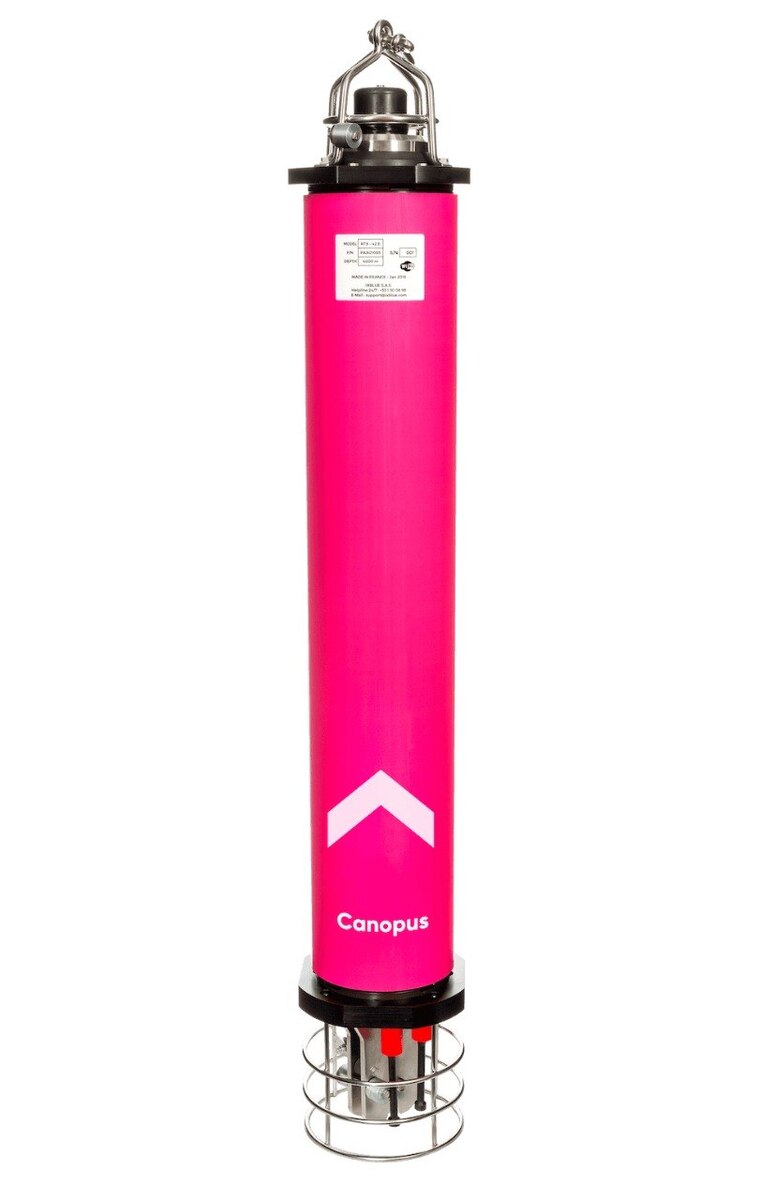

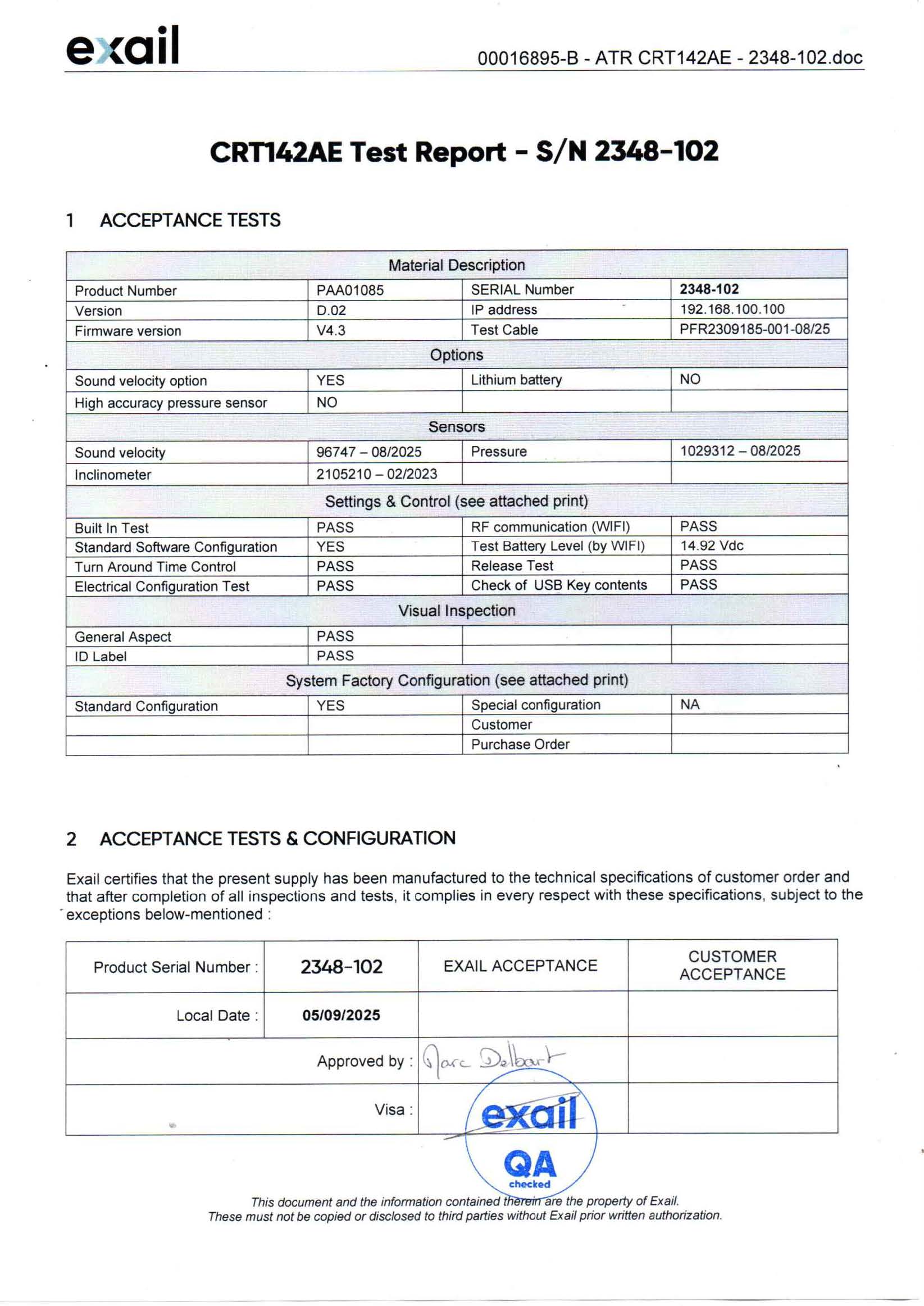

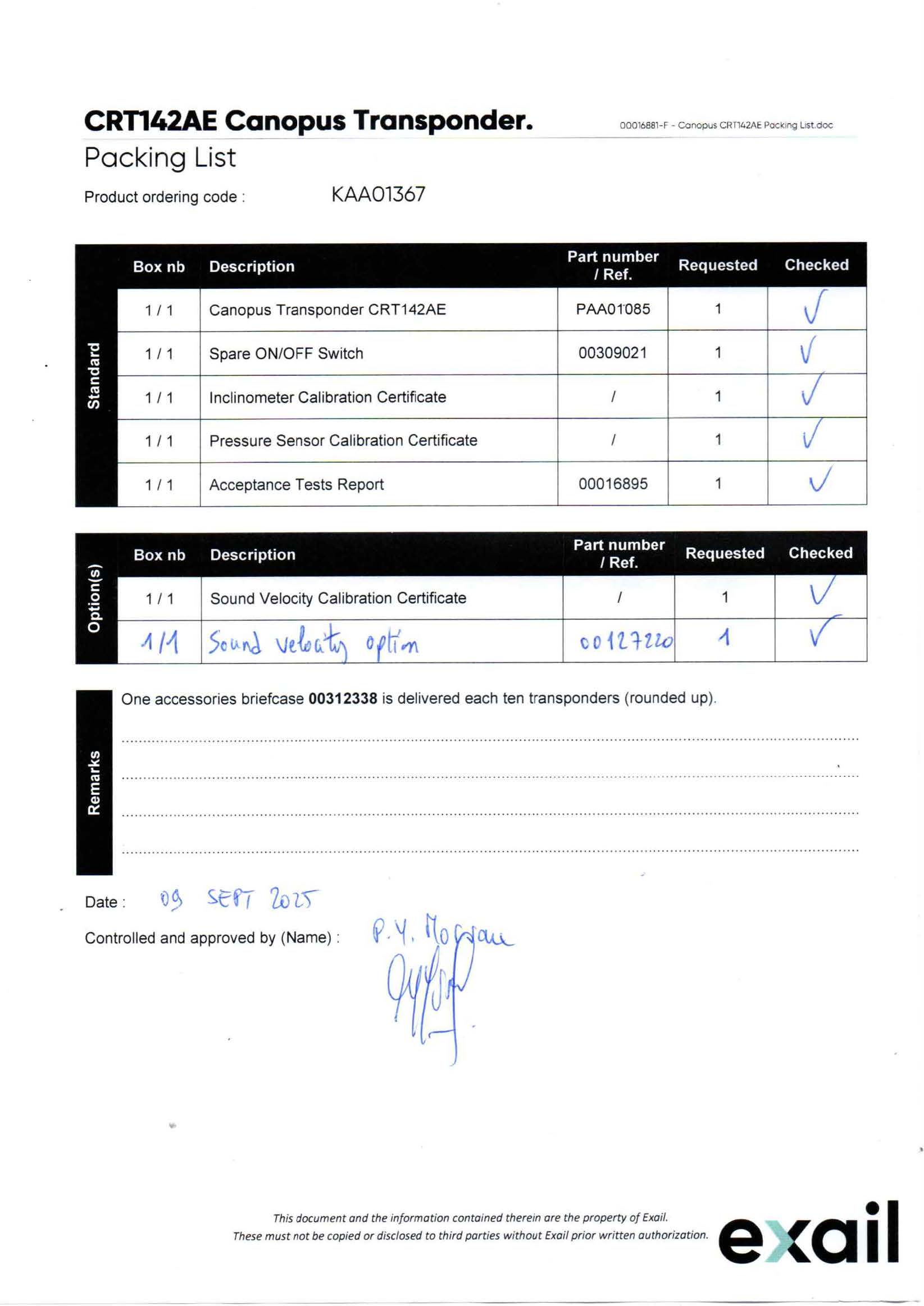

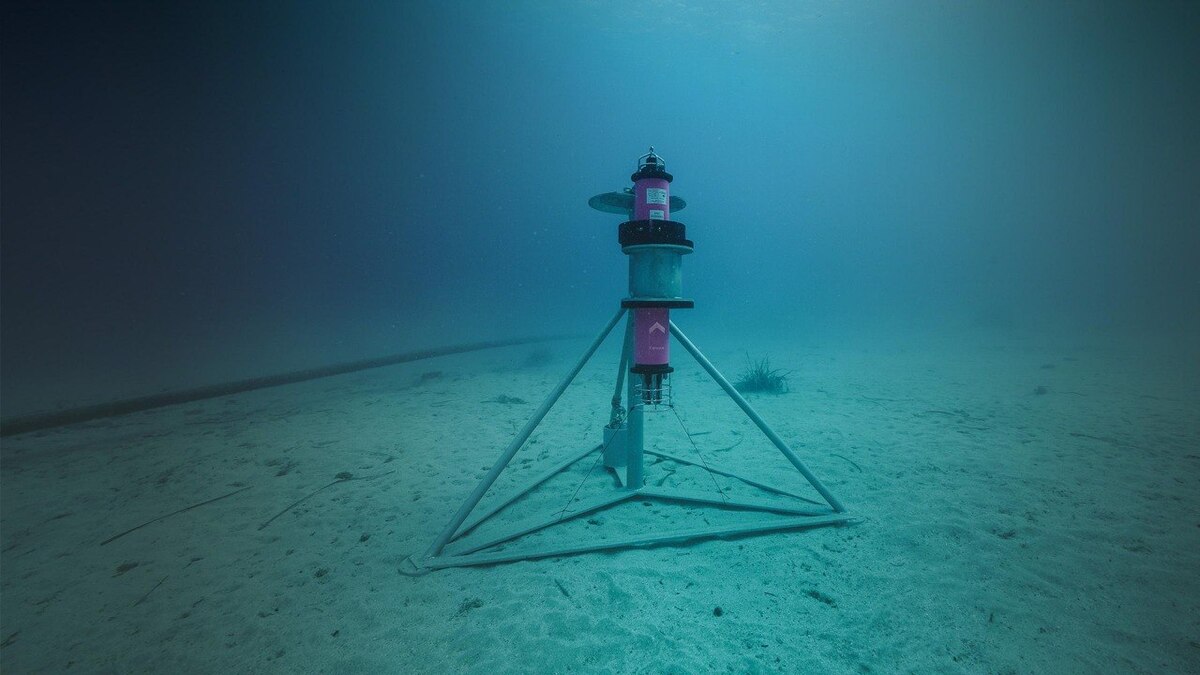

Canopus Transponder Specs

• 2 modes:
  • 500 bps (MFSK/MPSK)
  • high speed 8kbs
• Acoustic: MF 20-32 kHz, Tx 181-196 dB re 1µPa @1m (programmable),
• omni beam,
• 1 cm accuracy.
• Battery:
  • Alkaline (70 months standby, 1.6M pings) or
  • Lithium (110 months, 2.8M pings);
• external 9-36 VDC.
• Sensors:

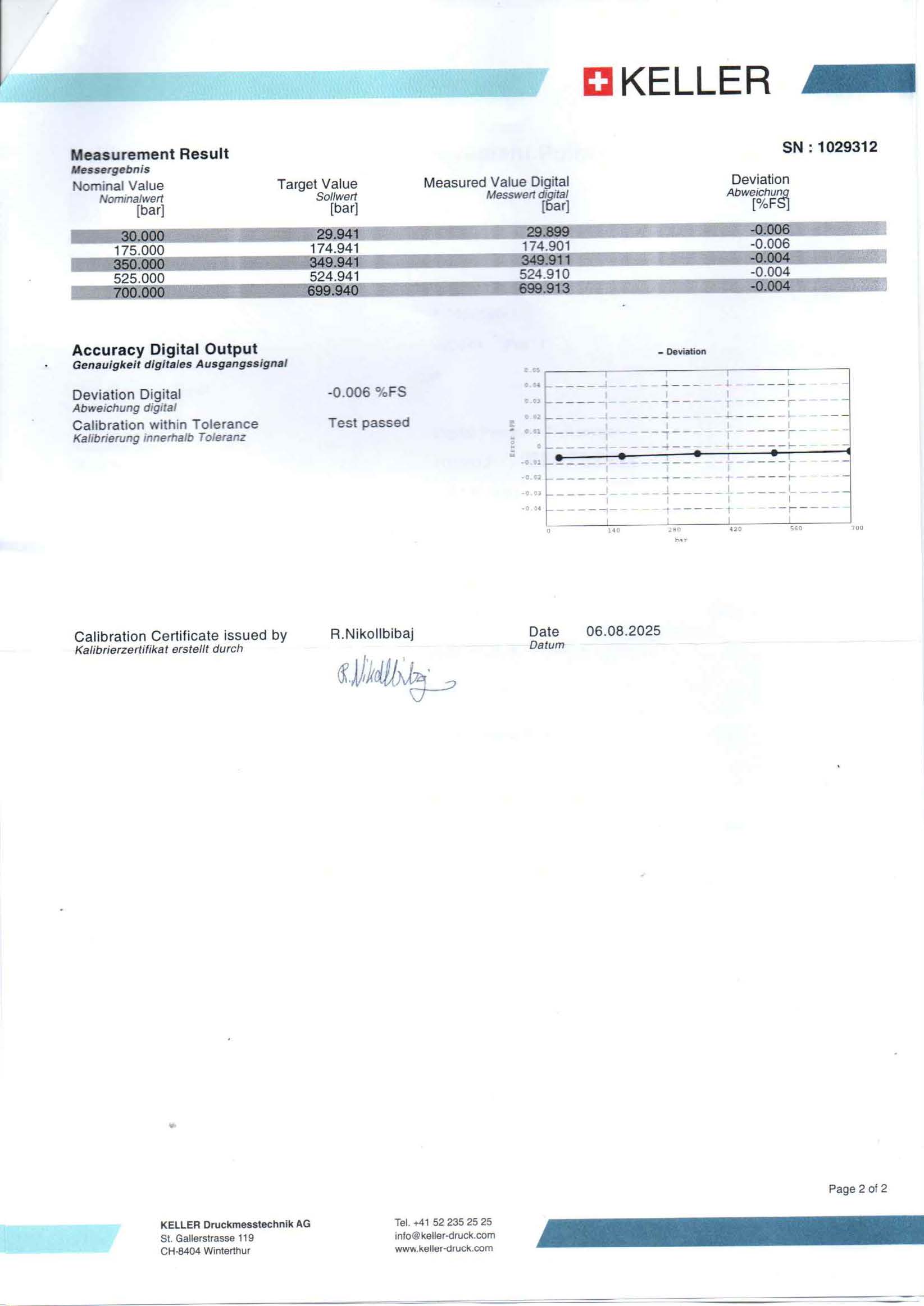

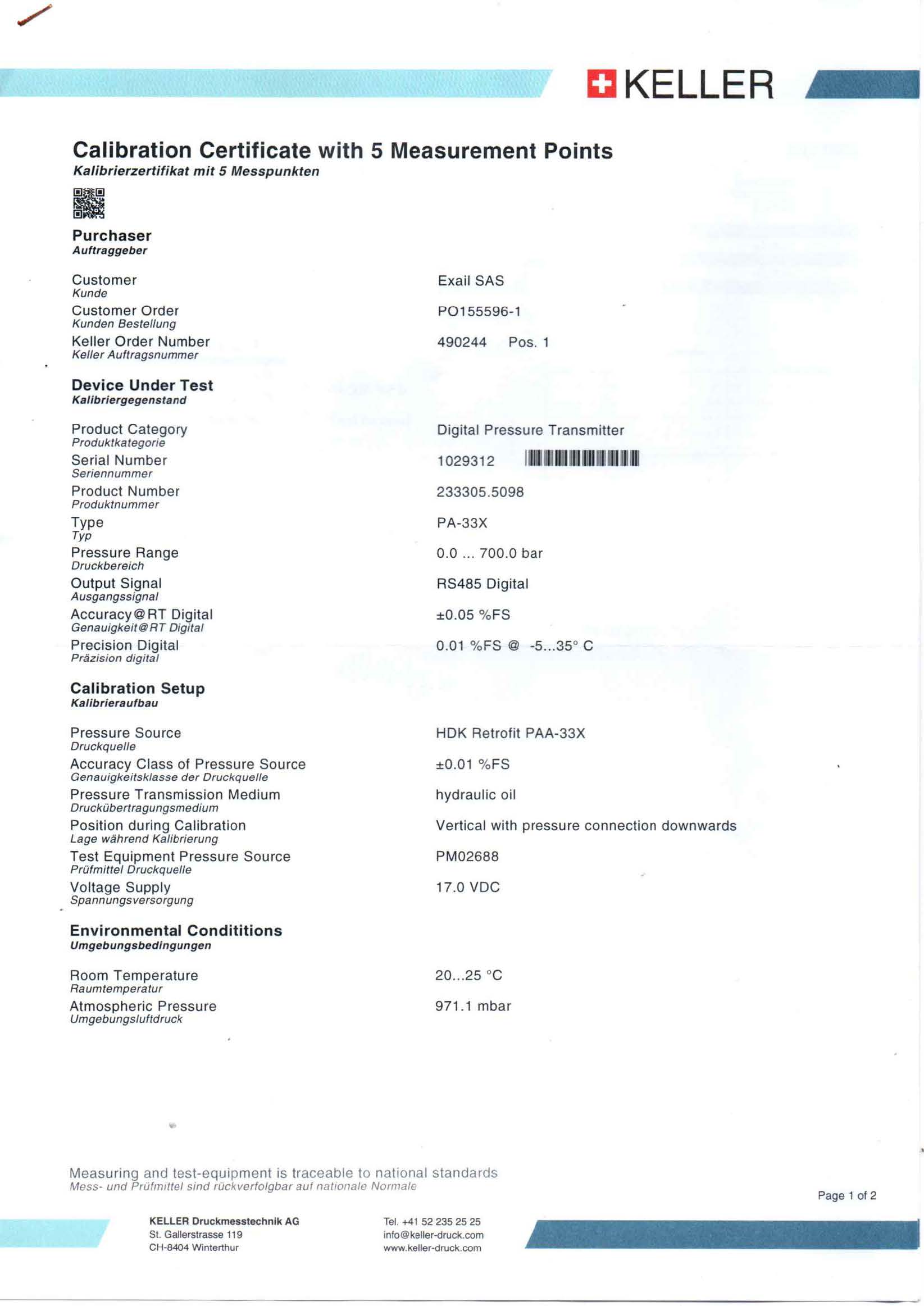

  • Pressure (700 bar, 0.05% FS),
  • temp (-10 to 60°C, 0.1°C),
  • inclinometer (±90°, 0.5°).
• Hard anodized aluminum,
• Weight 28/16 kg (air/water),
• 4000 m (6000 m opt) depth,
• Ø180 x 1060 mm.

Key Features

• Embedded Kalman filter,
• SLAM for flexible arrays (30 min calibration, decimeter precision).

Compatibility:

• Exail Gaps USBL,
• INS,
• Canopus/iXblue transponders;
• Ethernet/serial interfacing.

Software:

Delph Subsea Positioning for planning (DTM/SV analysis, visibility maps), operations (calibration, box-in).
