PERAR 24" DN600 CLASS 900 TRUNNION VALVE

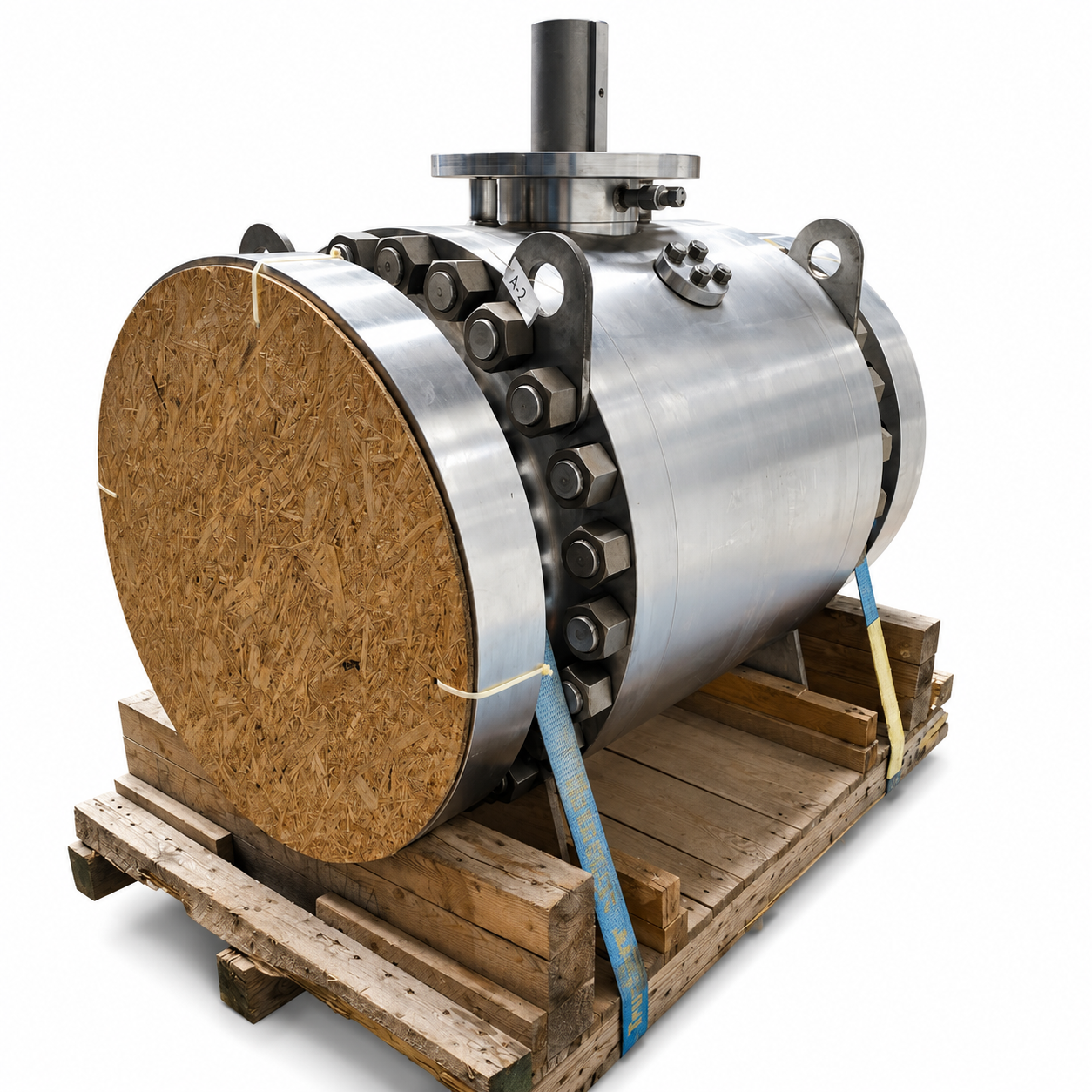

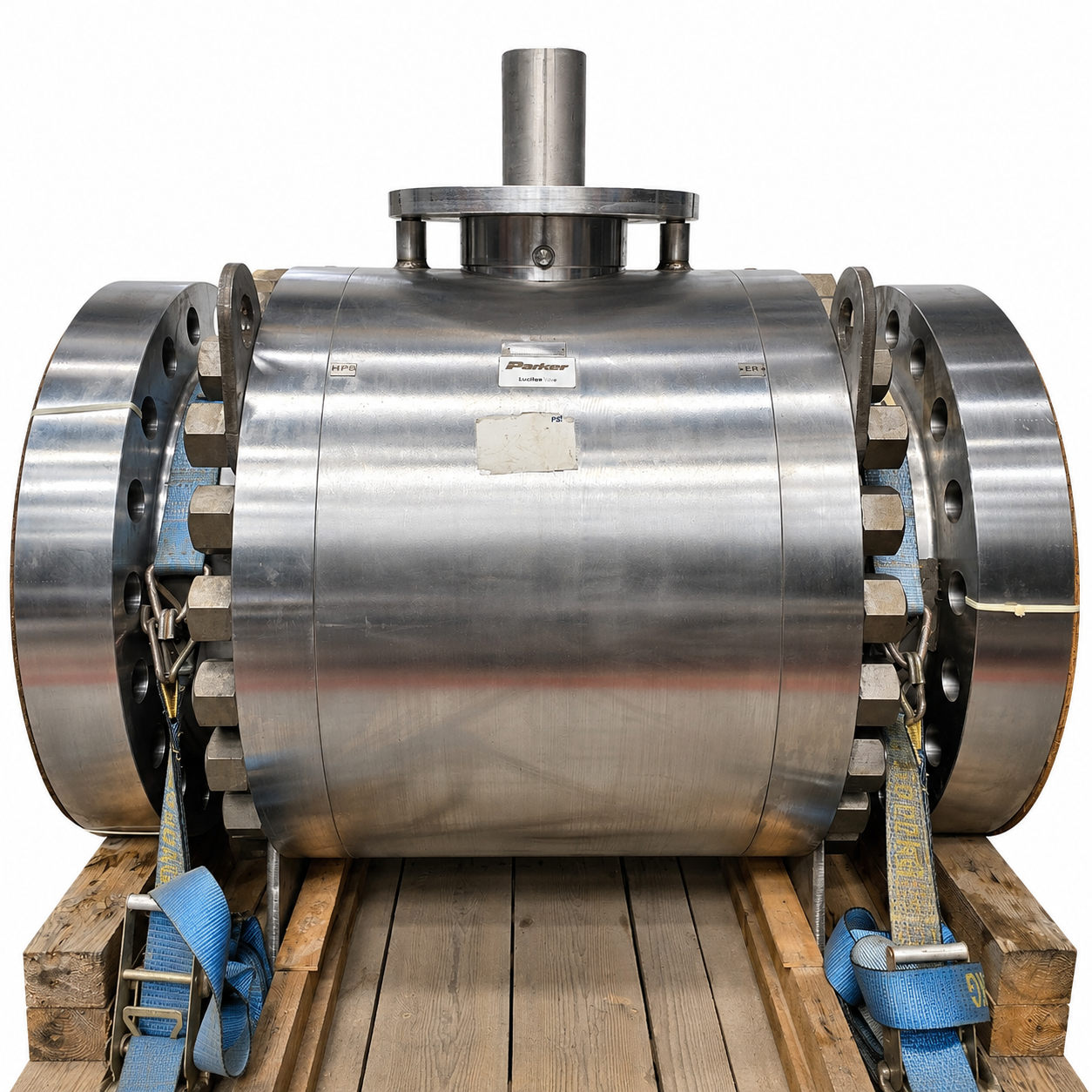

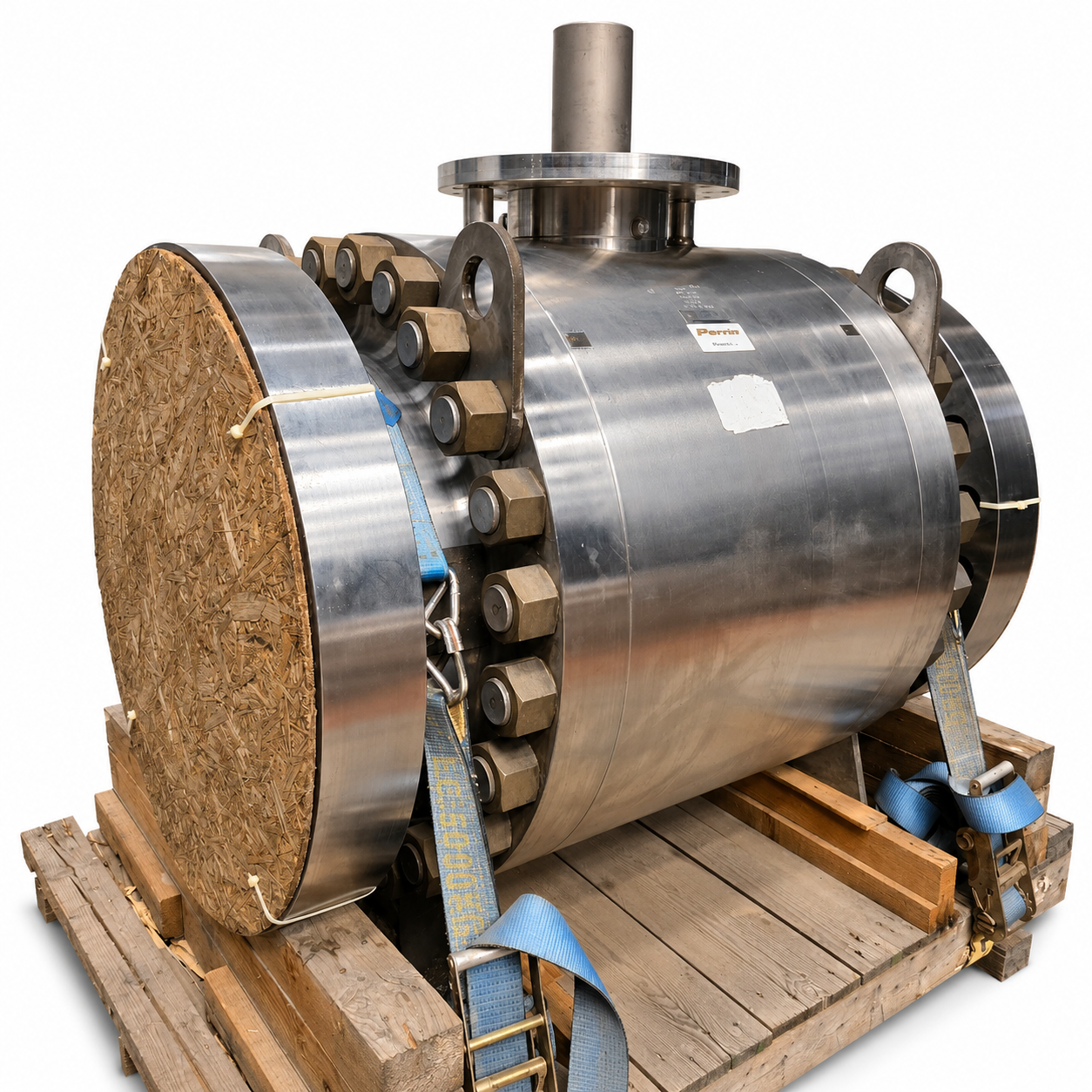

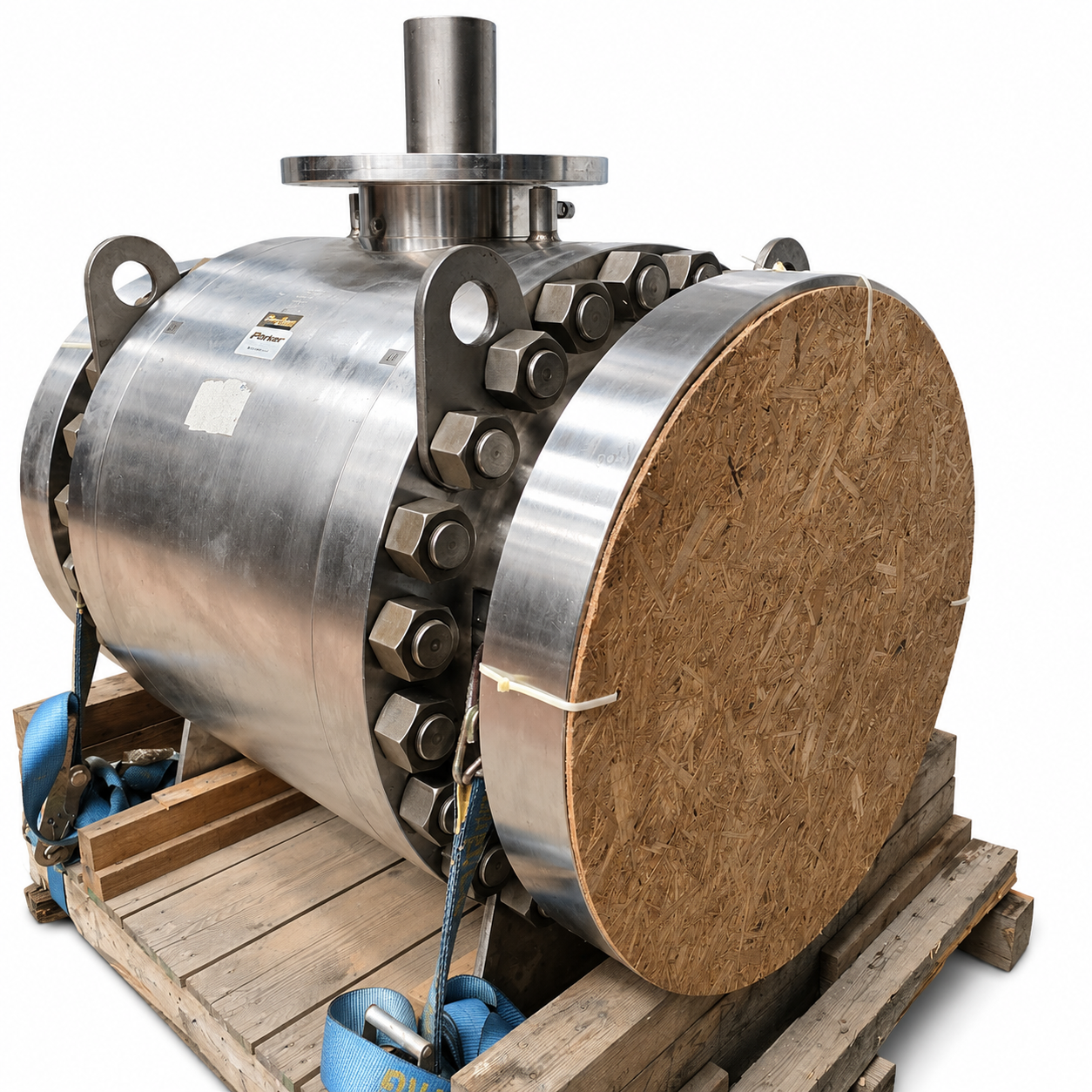

PERAR 24" DN600 CLASS 900 TRUNNION MOUNTED SIDE ENTRY BALL VALVE

Manufacturer: PERAR S.p.A., Italy

Model: EB

Type: Trunnion Mounted Side Entry Ball Valve

Size: 24" (DN600)

Pressure Class: ANSI Class 900

Year of Manufacture: 2009

Standard: ISO 14313

Net Weight: Approx. 4,500 KG

Maximum Operating Pressure (MOP):
155 Bar at -20°C
146 Bar at 120°C

Materials:
Body: ASTM A182 F51 Duplex Stainless Steel
Ball: ASTM A182 F51 Duplex Stainless Steel
Seat: ASTM A182 F51 Duplex Stainless Steel
Stem: ASTM A182 F51 Duplex Stainless Steel
Closure: ASTM A182 F51 Duplex Stainless Steel

Condition:

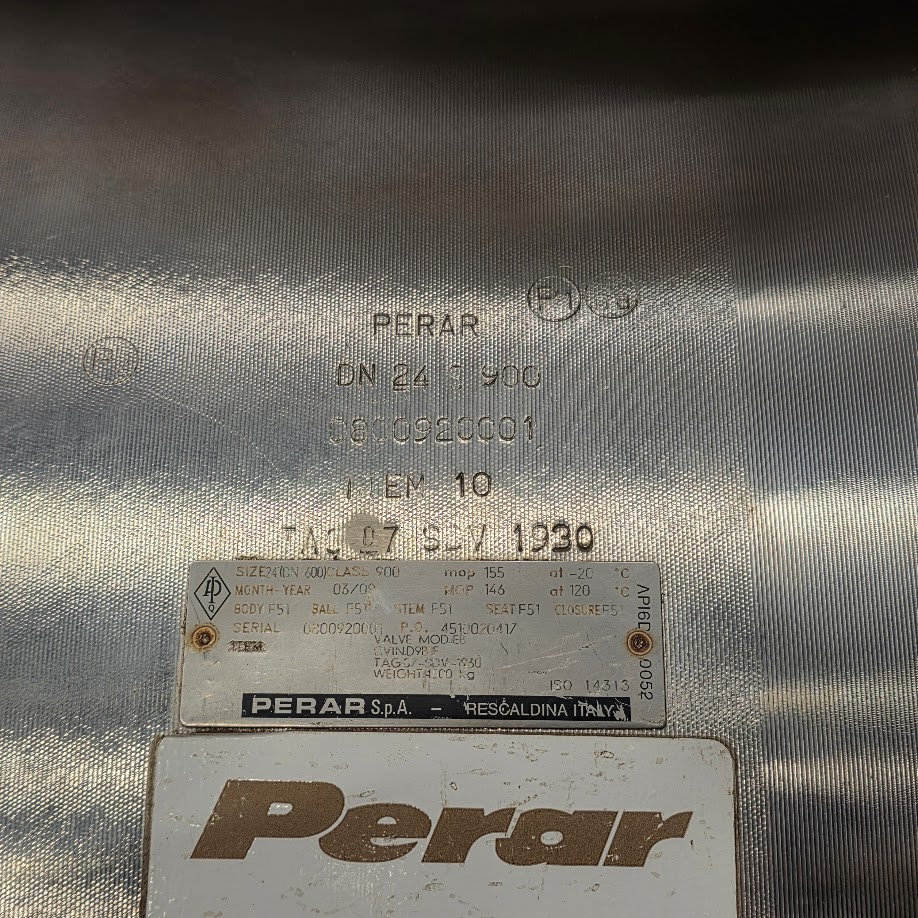

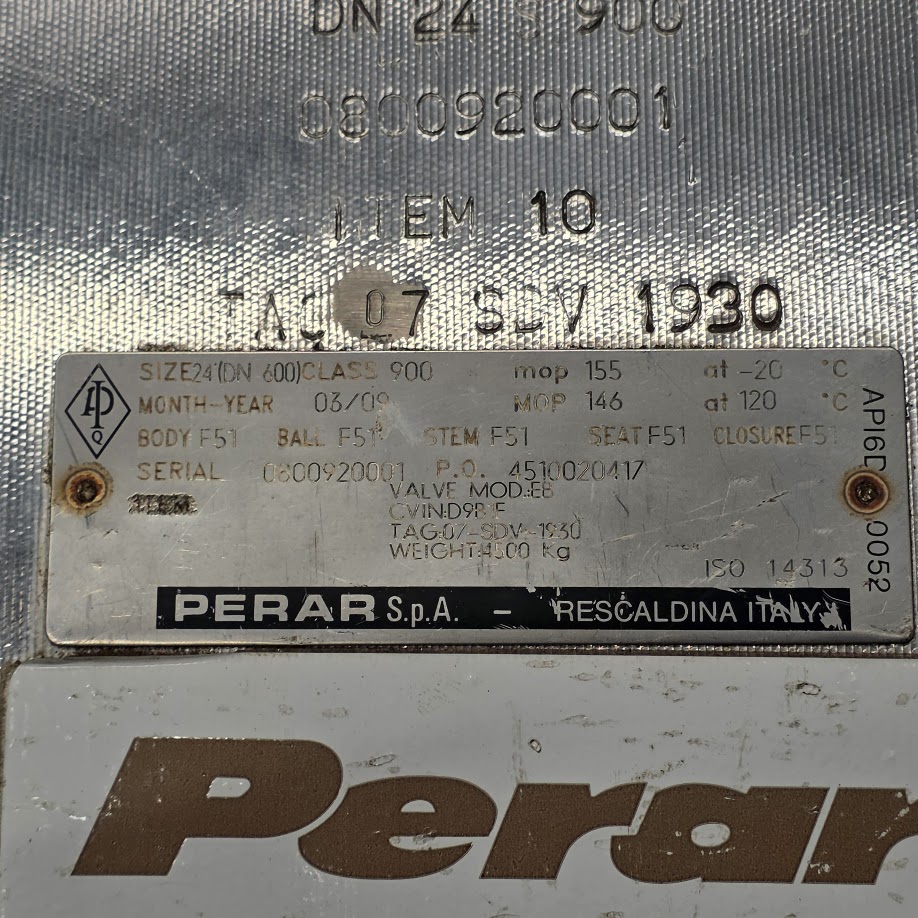

Unused surplus valve. Never installed or placed into service. May show minor cosmetic marks, handling marks, storage wear, dust, or surface imperfections consistent with long term storage. All identification markings, engravings, and nameplates are present as shown in the photographs.

Description

This listing is for one PERAR Model EB Trunnion Mounted Side Entry Ball Valve manufactured in Italy and designed for demanding high pressure applications in oil & gas, petrochemical, refinery, pipeline, offshore, marine, and industrial process systems.

Manufactured in Duplex Stainless Steel F51 construction throughout major pressure containing and operating components, this valve provides excellent mechanical strength, corrosion resistance, and reliability in severe service environments.

Design Features

• API 6D, API 6A, CSA Z245.15 and ASME B16.34 design principles

• Trunnion mounted side entry construction

• Full bore / reduced bore design

• Double Block and Bleed (DBB) configuration

• Bi-directional sealing

• Spring loaded floating seats

• Ball and stem independent design

• Anti blow-out stem

• Anti-static device

• Heavy duty bearings

• Fire safe design

• Suitable for both horizontal and vertical installation

• Flanged, welded, hub and compact connection configurations available within the design family

Applications

• Crude Oil Pipelines

• Natural Gas Transmission

• Petrochemical Facilities

• Refineries

• Offshore Platforms

• LNG Facilities

• Marine and Industrial Process Systems
