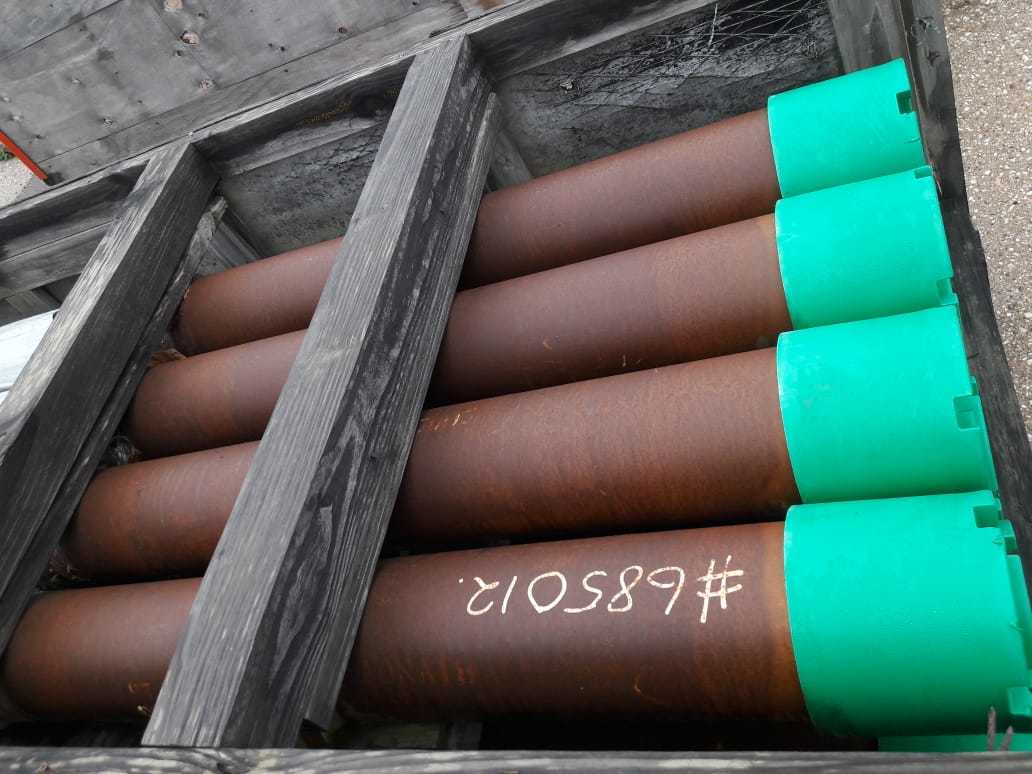

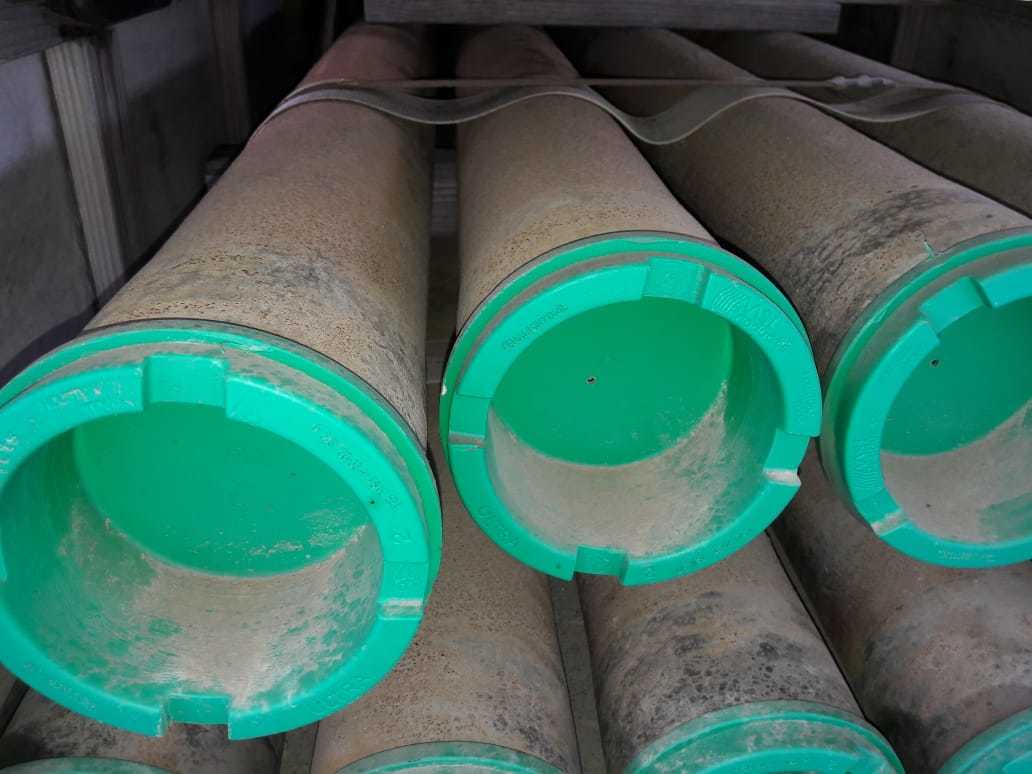

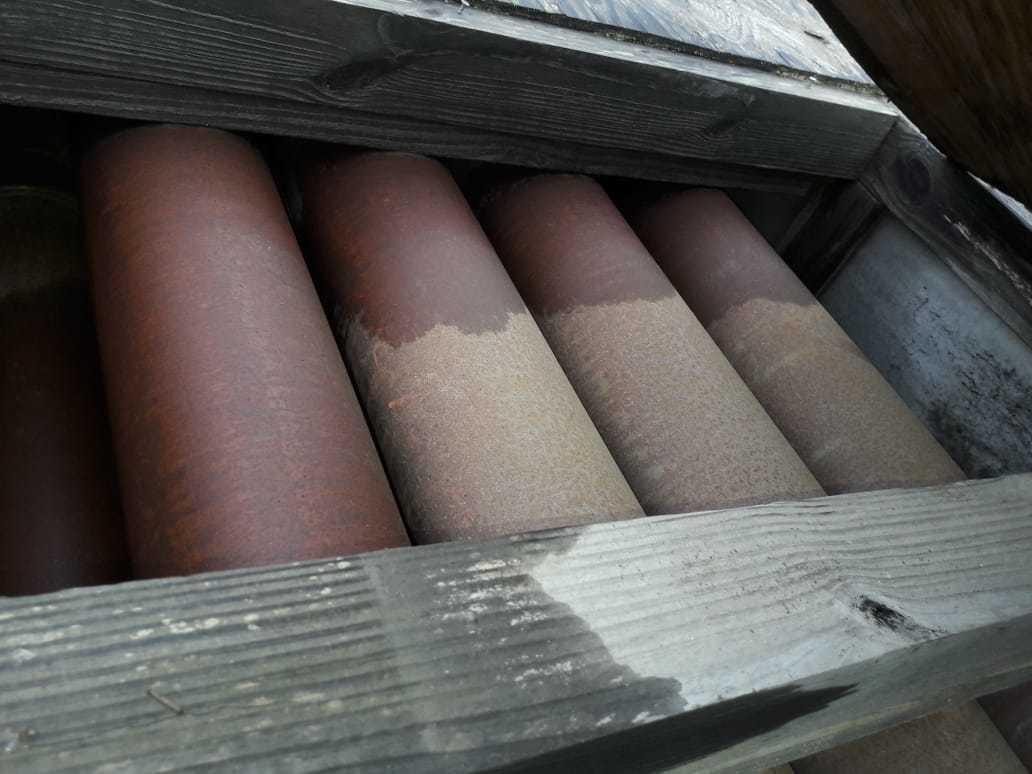

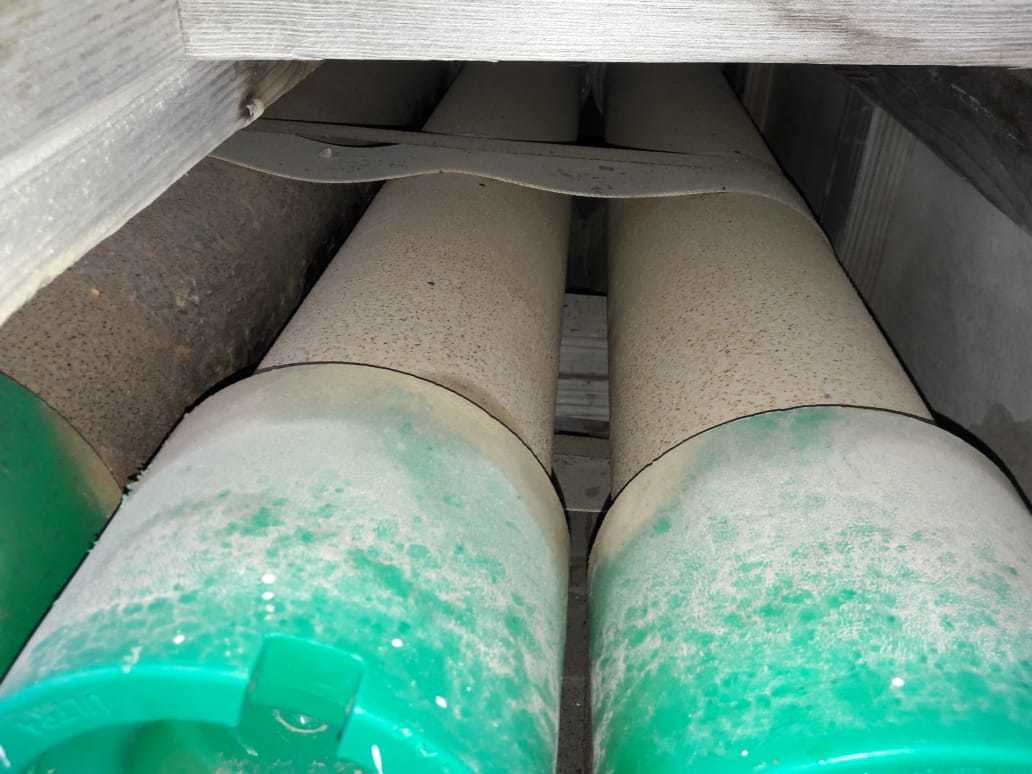

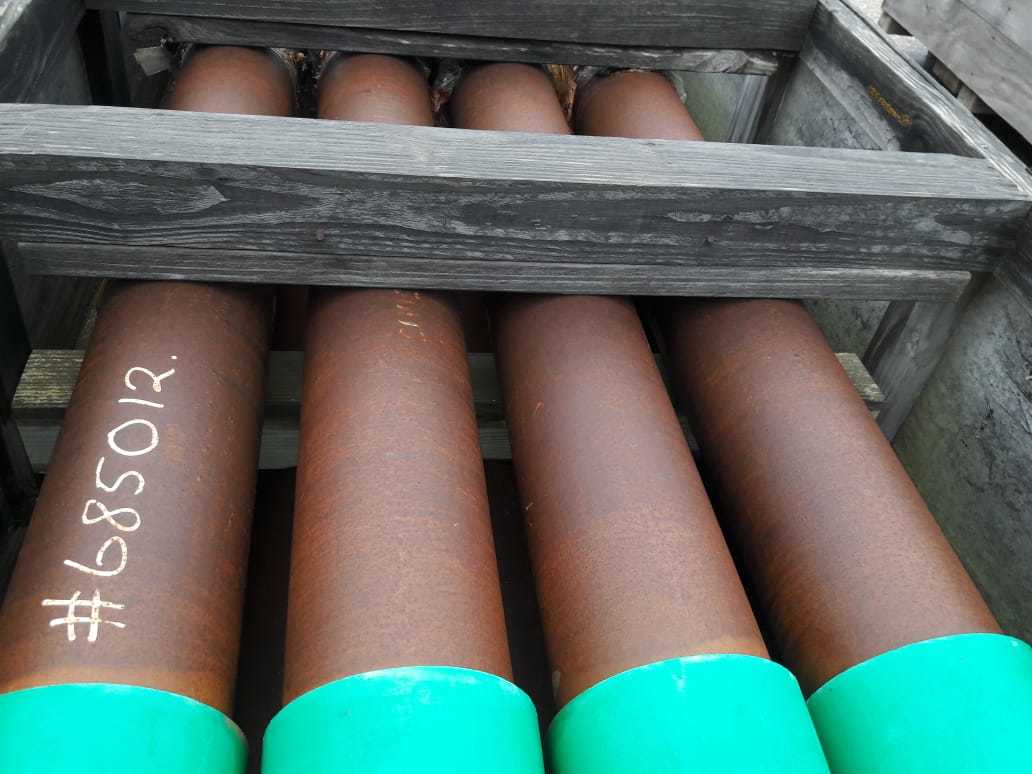

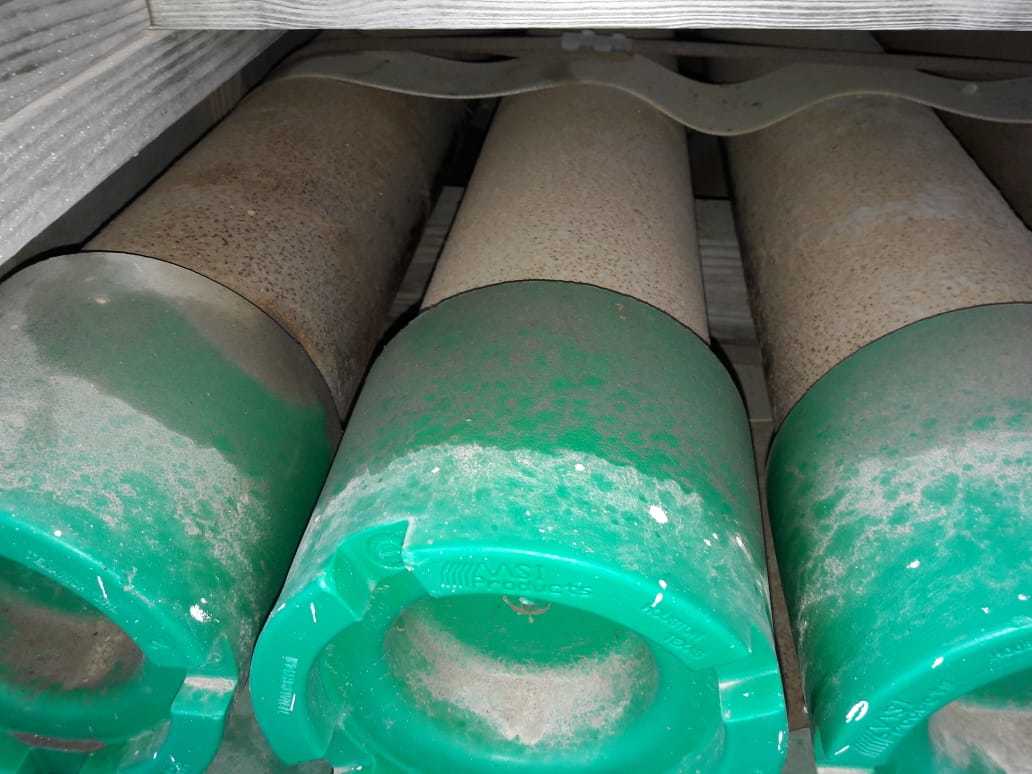

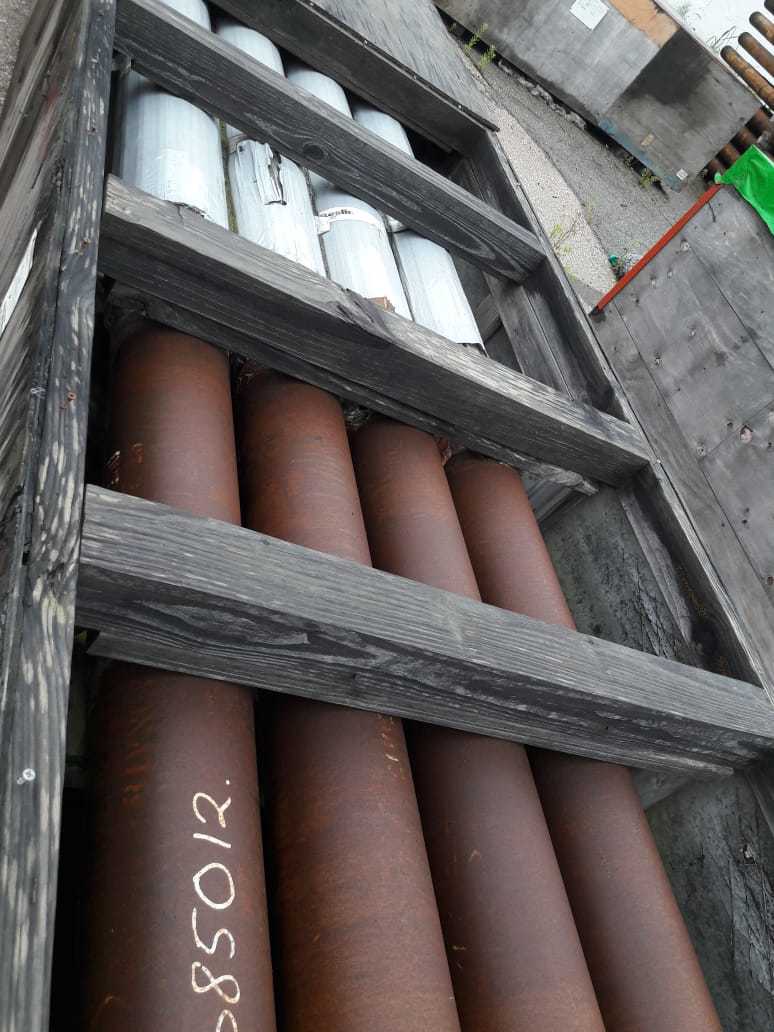

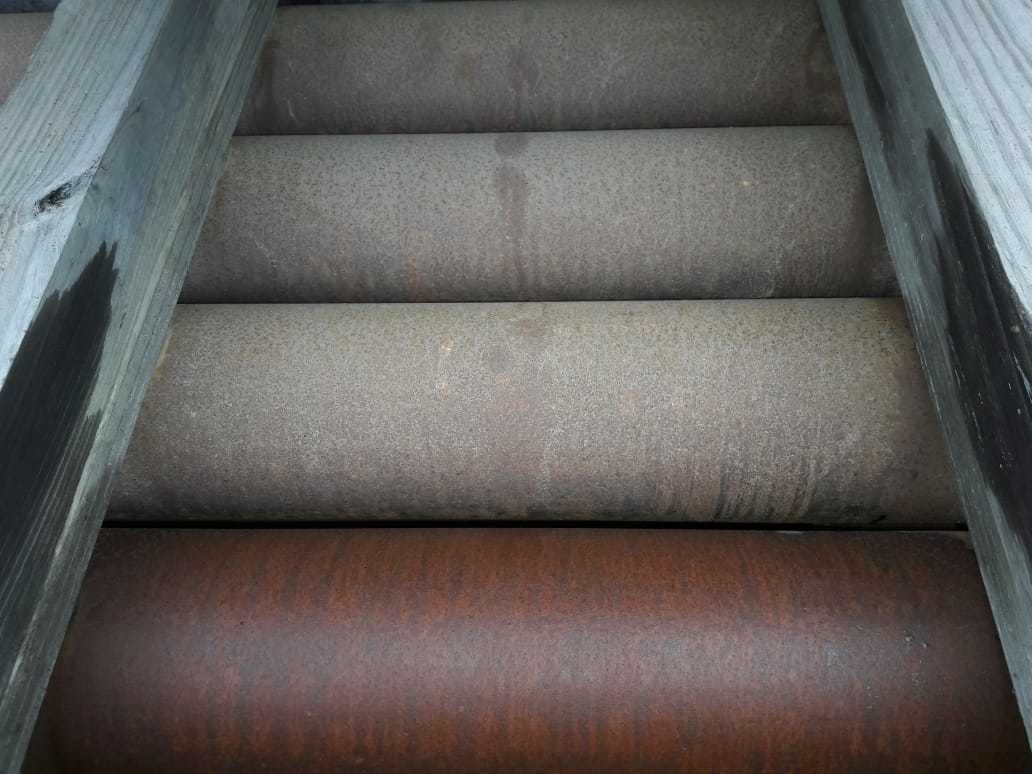

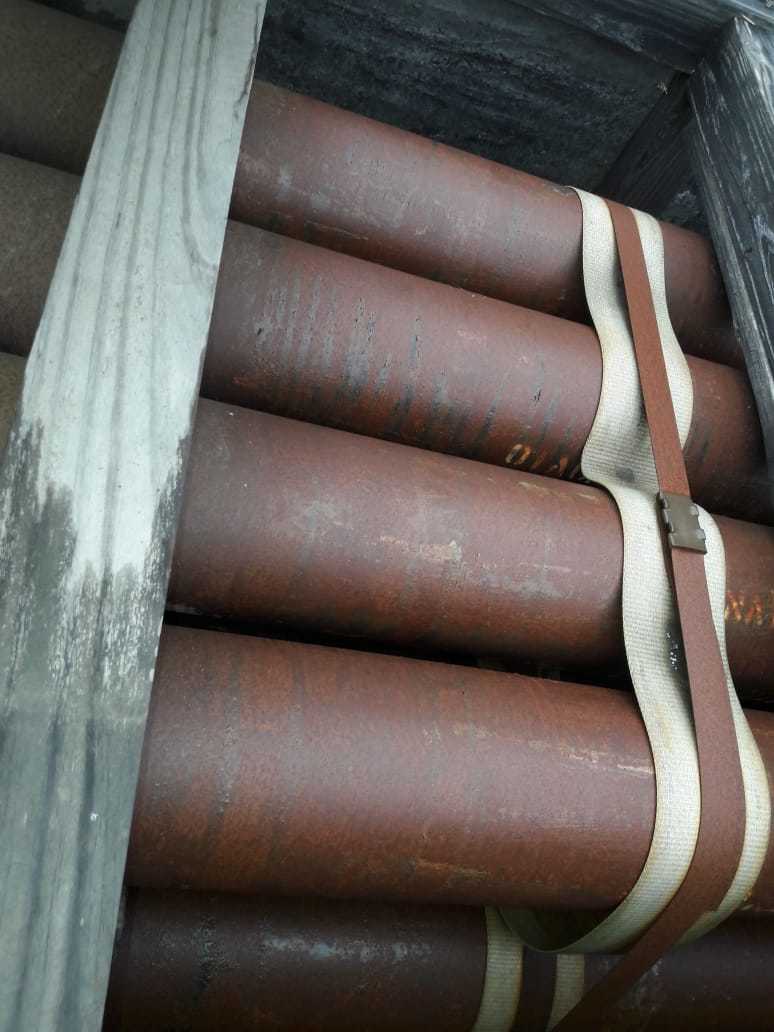

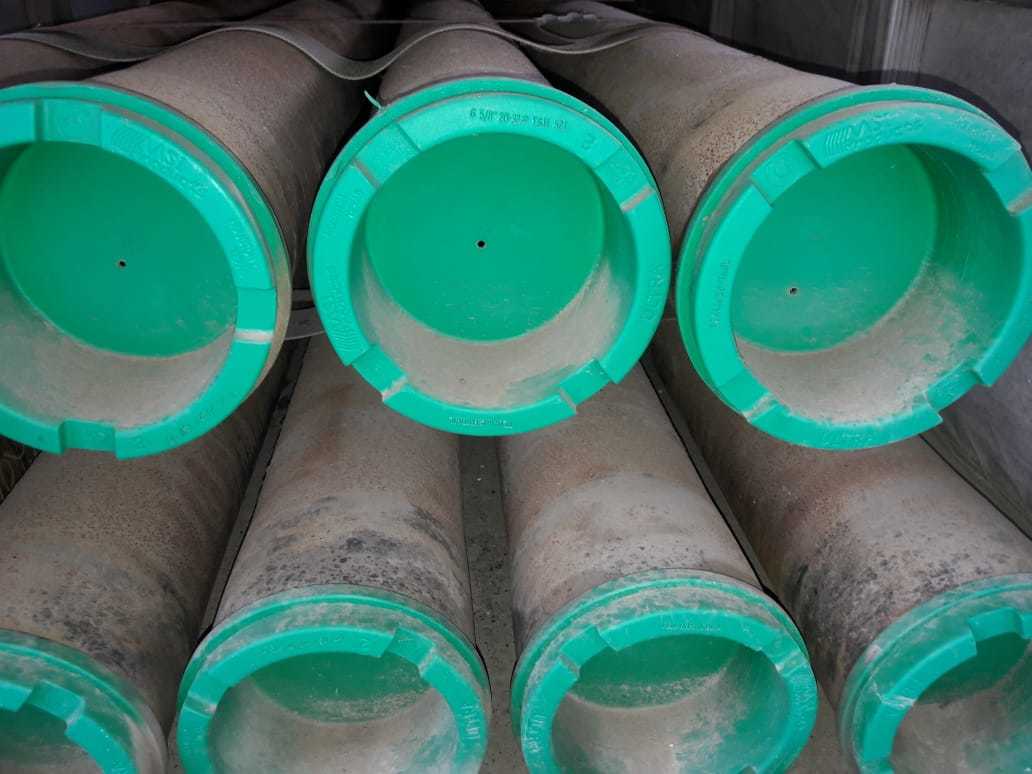

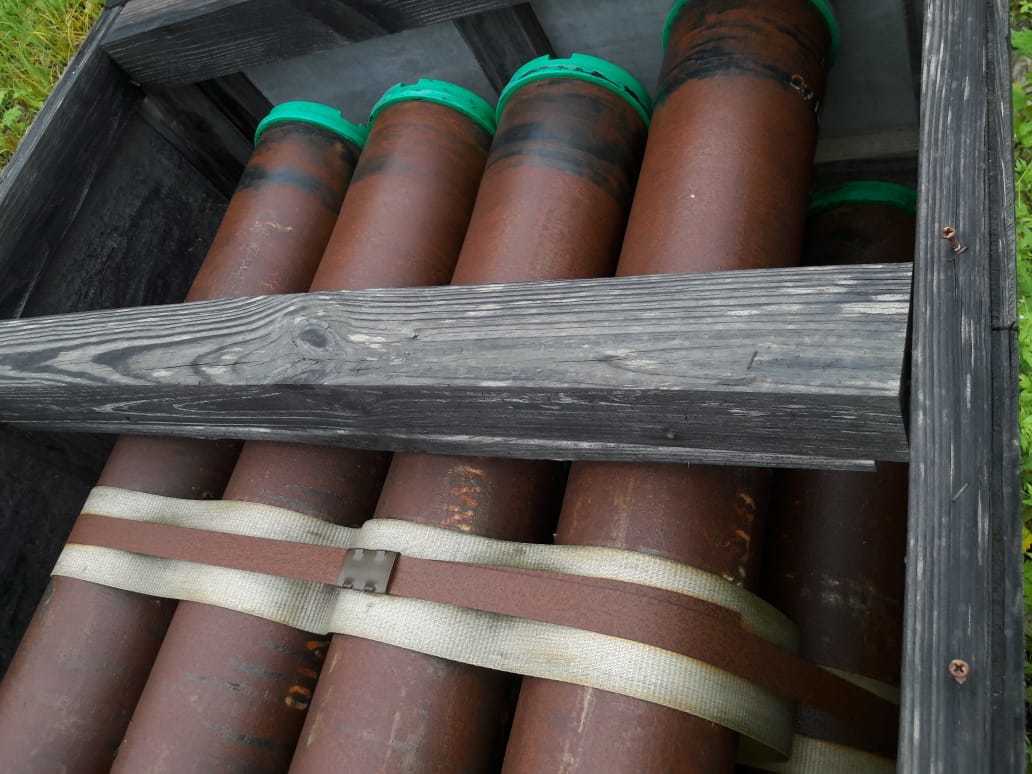

66 x 6-5/8 ResFlow Screens

ResFlow  screens with Respunch housing , 6 5/8" 24PPF L-80 1%CR, Hydril  521 Box X Pin Range  3 container (ENL supplied Base Pipe), ResFlow  ICD with lineslot single wire wrapped sand screen, removable sleeve adjustable.

Housing, wire: UNS S31603 (6.2mm x 3.2mm axial and 4.0mm x 3.0mm wrapping wire).  Punch housing length 1,000mm 4.5mm recess for PIP tag with M5x8 set screw, slot opening: 175 micron.  Welded type stop collars - 3 per assembly on box and pin end plus 1 Weatherford stop collar installed on far pin end.
