Electric winch 0.3 Te - 1000m

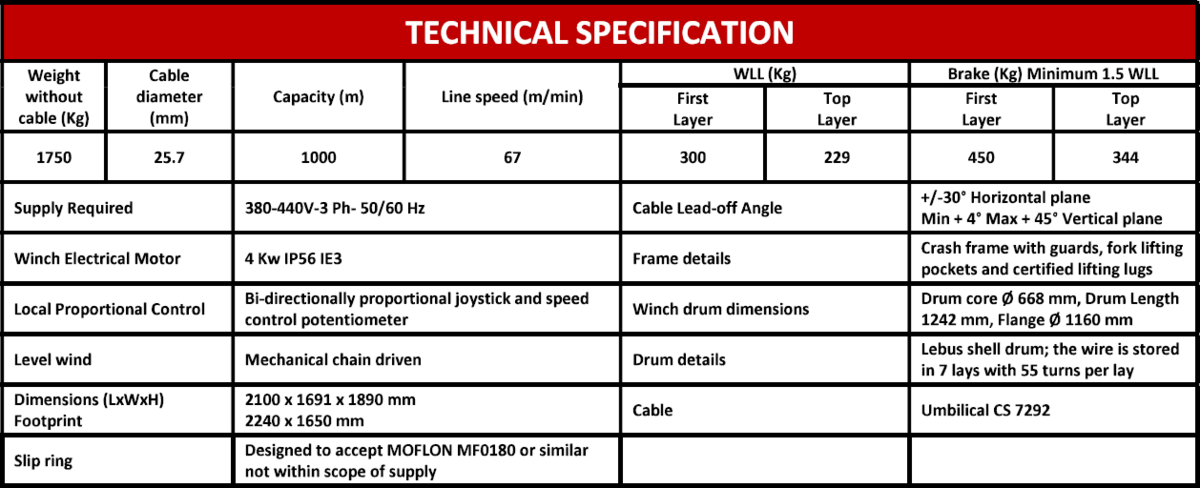

Electric winch with 0.3 Te Working Load Limit and 1000m capacity available for sale (Ref.: DS02)

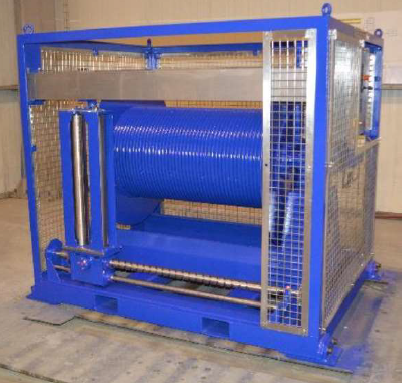

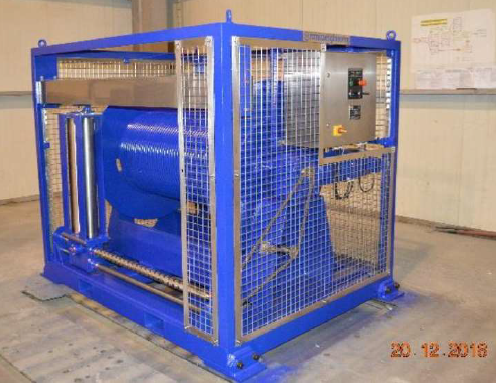

The winch drum is mounted on the output shaft of a 4kW SEW Electric gearmotor fitted with a failsafe brake unit and is connected to the corresponding dive invented in the control panel. The speed of the drum is proportionally controlled via a potentiometer; its direction is determined by a 3 position, spring return to centre, joystick. These are both mounted locally on the Electric winch enclosure.

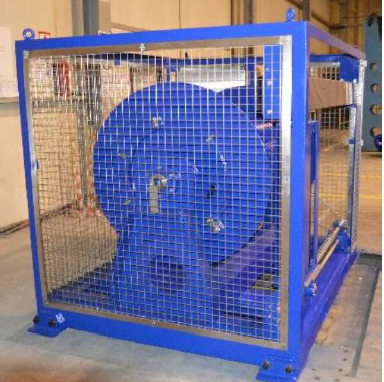

The brake, being failsafe, always defaults to on should, for any reason, electrical supply is lost or the control joystick is in its center position. The non drive side housing a bearing and a slipring.

The level wind is mechanically chain driven from the SEW Electric gear motor drive shaft and the cable is guided via the level wind carriage assembly
