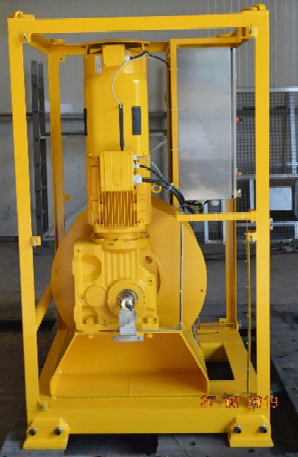

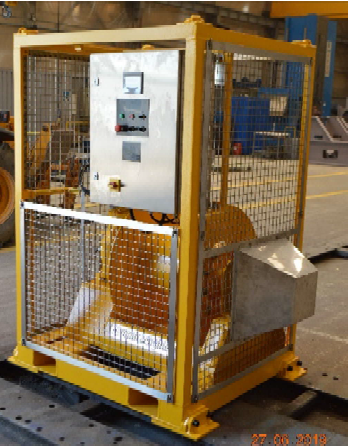

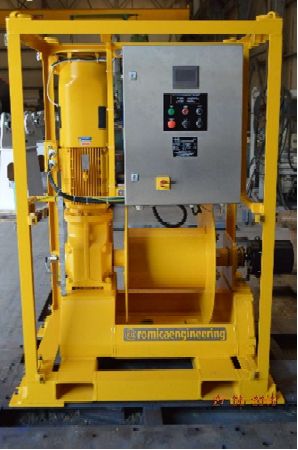

Electric winch 0.7 Te - 500m

Electric winch with 0.7 Te Working Load Limit and 500m capacity available for sale (Ref.: DS08)

The Constant Tension Winch drum is driven by a 11 kW SEW electric gearmotor through an output shaft. The drum motor Variable Speed Drive drives the electrical motor of the Drum with variable speed according to the control signals and rpm setpoint of the potentiometer. The Tension control is also controlled by the Variable Speed Drive with variable Tension according to setpoint of the potentiometer.

The non-drive side housings the bearing and slipring. The Slipring is not within the scope of supply. The SEW Electric Motor combination is fitted with a failsafe brake unit. The brake, being failsafe, always defaults to on should, for any reason, the electrical supply is lost or the joystick is in its centre (neutral) position.
