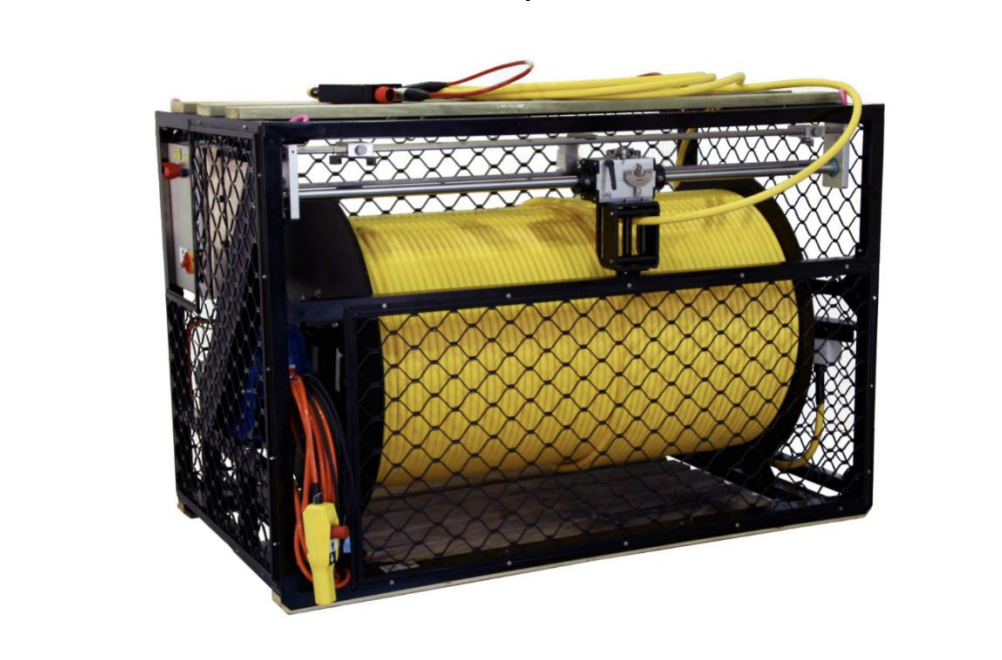

Electrical winch for ROV

Specification details

The Electrical winch is light weight and easy to mobilize. The winch can be used for all sorts of electric equipment.
The spooling system has a stainless steel shaft, and is belt driven with release mechanism. Cable diameter adjustable from 1 mm to 25 mm in 50 steps.
Controller: Frequency inverter, Manual control with 15 meters cable. Functions are up, down and emergency stop and Potentiometer speed control. Construction: Both frame and cable drum are manufactured in corrotion resistant aluminium

• Overall Dimentions H: 910mm L: 1750mm D: 980mm
• Drum Dimentions CL: 1260mm CD: Ø400mm Flange: Ø900mm
• Cable Capacity 1000meter of 22,7mm
• Cable Weight without cable 220kg
• Speed 35 m/min
• Electric Motor 1500W. 3 ph, 1395 rpm
• Electric Input Single phase 230V AC 16A
• Brake Automatic brake function
• Controls Controller with cable for operation
