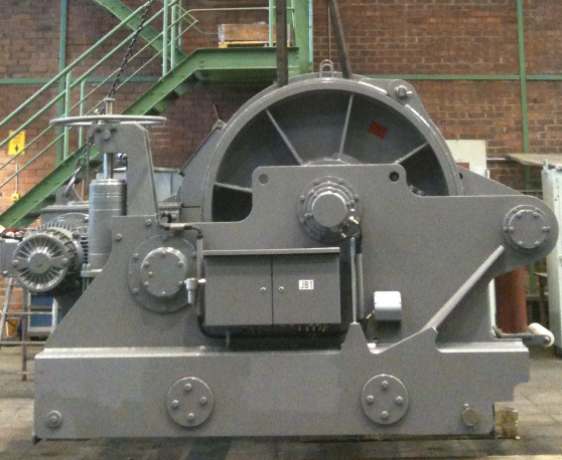

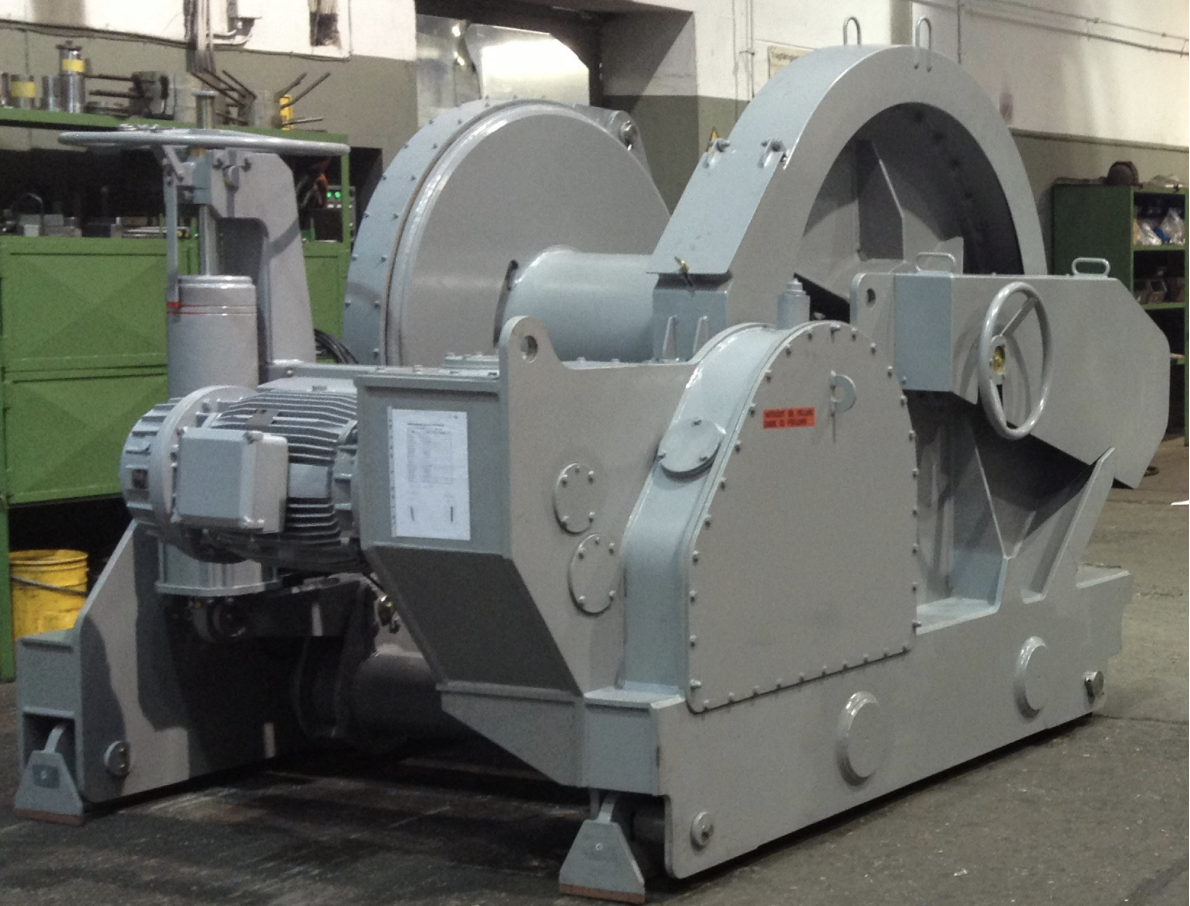

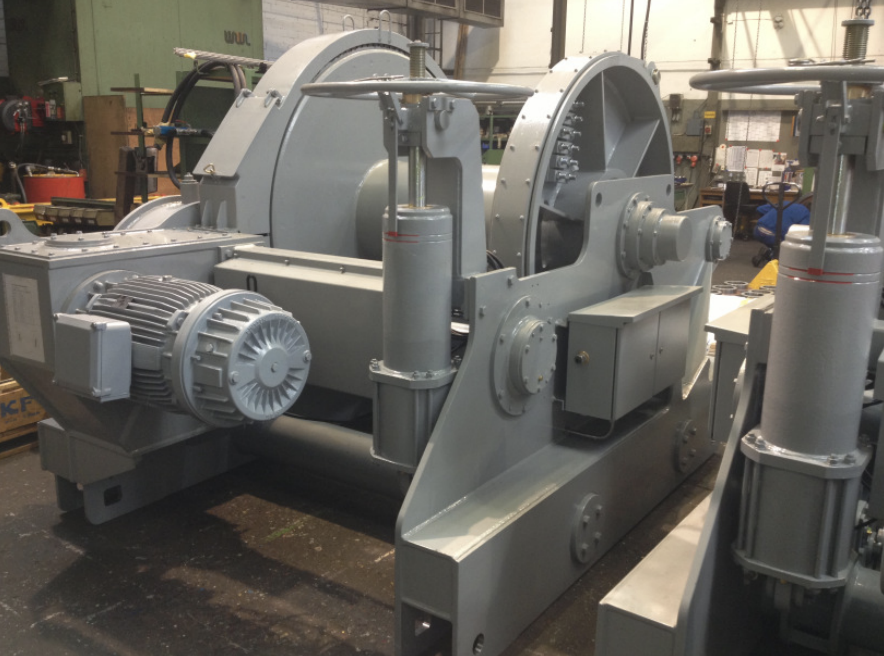

BRÖHL 250kN Electric Mooring Winches

Technical details

• Line pull 1st layer: 250 kN
• Line speed 1st layer: 5,8 m/min / 11,7 m/min
• Line pull 10th layer:  119 kN
• Line speed 10th layer:  12,2 m/min / 24,6 m/min.

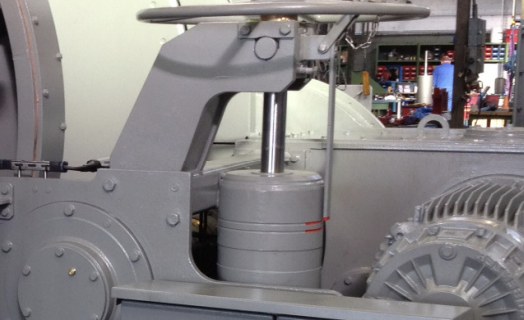

Brake holding force:

• Band brake 1st layer:  600 kN
• Brake holding torque: 174 kNm
• Electromagnetic brake 1st layer: 600 kN
• Rope:  steel rope 38 mm ∅
• Drum dimensions:  ∅ 580/1690 x 1080 lg.
• Storage capacity: 775 m in 10 layers
• Drive: three-phase squirrel cage motor
• Type: KDKF200L-8/4/TF/ST/OD/BR
• Rated voltage (see E-part): 480 V AC 3ph 60 Hz
• Power: 27kW/27kW
• Speed: 870 rpm / 1760 rpm
• Poles:  8/4
• Cooling: Surface cooled
• Build in Electromagnetic brake: SFB 63/ 630 Nm
• Voltage: 110 V D.C.

Gear:

• Gear ratio: 287:1
• Oil contents: approx. 85 ltr.
