15Te Horizontal Tensioner

Name: 15Te Horizontal Tensioner
Brand: Caterpillar
Availability: InStock

For immediate sale, this horizontal 15Te Caterpillar twin-track tensioner system for the handling of flexible pipe, umbilicals, cables and steel pipe from 50mm to 430mm diameter. See below for further information.

Details

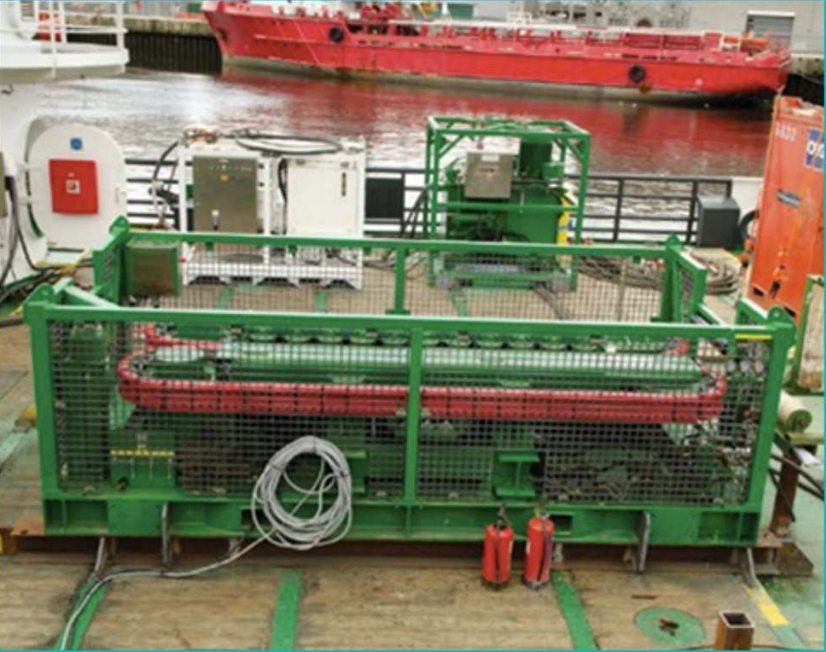

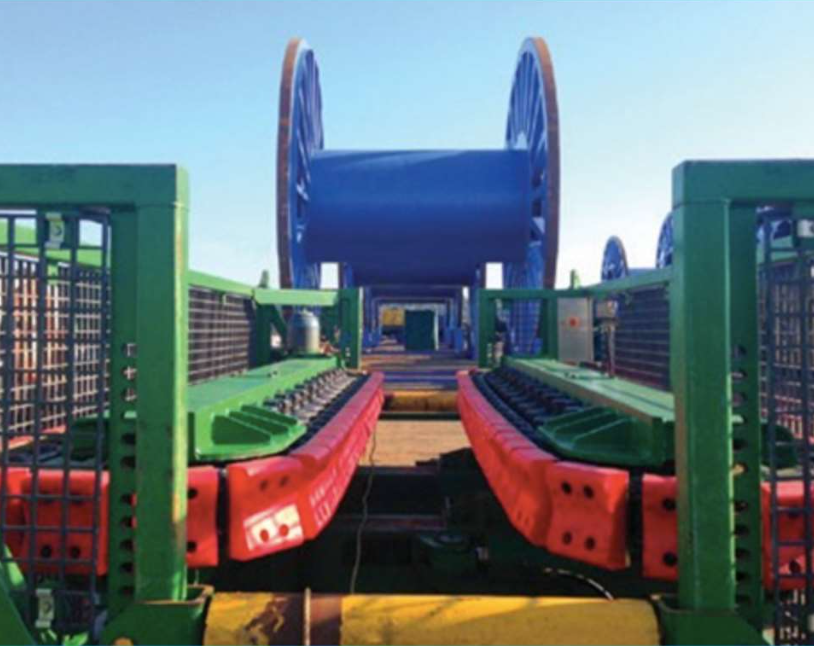

This horizontal 15Te Caterpillar twin-track tensioner system is capable of handling flexible pipe, umbilicals, cables and steel pipe from 50mm to 430mm diameter. The track grip force is applied by two hydraulic cylinders attached to the movable track frame. The system is supplied with a standalone electric hydraulic power unit and is operated and monitored remotely from within a control cabin.

A remote control stand situated in the control cabin displays grip pressure, system pressure, distance, speed and tension. An optional external LCD display unit is available. Various alarm modes may be set as required.

Equipment specifications

Line pull : 15Te
Maximum lay speed : 970m/hour
Product capacity : 50mm to 430mm diameter
Track grip force : 52Te (22Te/m)
Track contact length : 2.34m
Operating modes : Manual (Haul in/pay out - 15Te) Render (Holdback 1Te - 15Te) Constant tension (Haul in 2Te - 15Te)
Instrumentation : Line distance, line tension, line speed, grip pressure, system pressure
Weight : 7.8Te
Dimensions : L: 4.67m W: 2.23m H: 1.66m
Control : Local and remote
