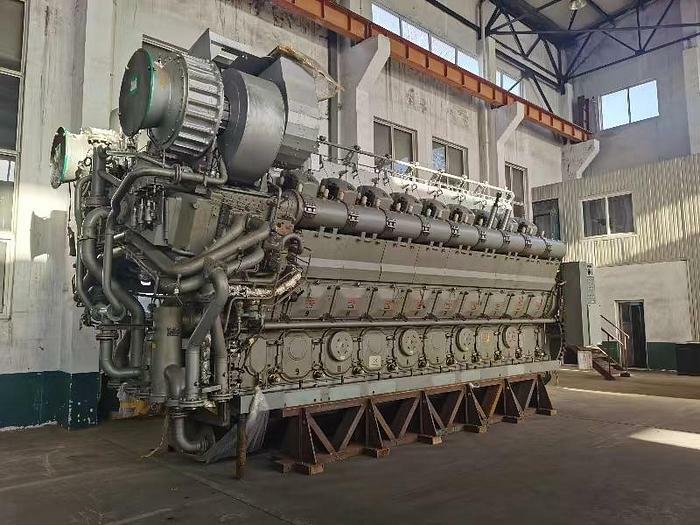

MAN - STX 18V32/40 HFO Diesel Gensets

Equipment details

• Engine model: STX-MAN - 18V32/40
• Specification: 8640 kW at 720 RPM
• Manufacturing year: 2011
• Fuel: HFO or MDO
• Quantity: 6 sets

Alternator / Generator

• Maker: Hyundai
• Type: HAR7 189-1028
• Capacity: 11032 kVA
• Voltage: 13,800
• Current: 461.5 A
• Frequency: 60 Hz
• Commercial operation: zero hours
• Continuous operation: Zero hours
• Stand-by operation: Zero hours

Technical data

• ​ Cylinder bore : 320 mm
• ​ Piston stroke: 400 mm
• ​ Engine Speed: 720 RPM
• ​ Mean effective pressure: 25.90 Bar
• ​ Power per cylinder: 504.4 KWm/cyl
• ​ Power of the engine: 9,080 KWm

Dimension and weight of the 18V32/40

• Height(H) : 5,240 mm
• Length(C) : 12,750 mm
• Width(W) : 3,500 mm
• Weight(dry) : 139,000 kg

Contact us for more information on pricing.
