Envirex/Aker Solutions Subsea WOCS

Multifluid Smart Pump.

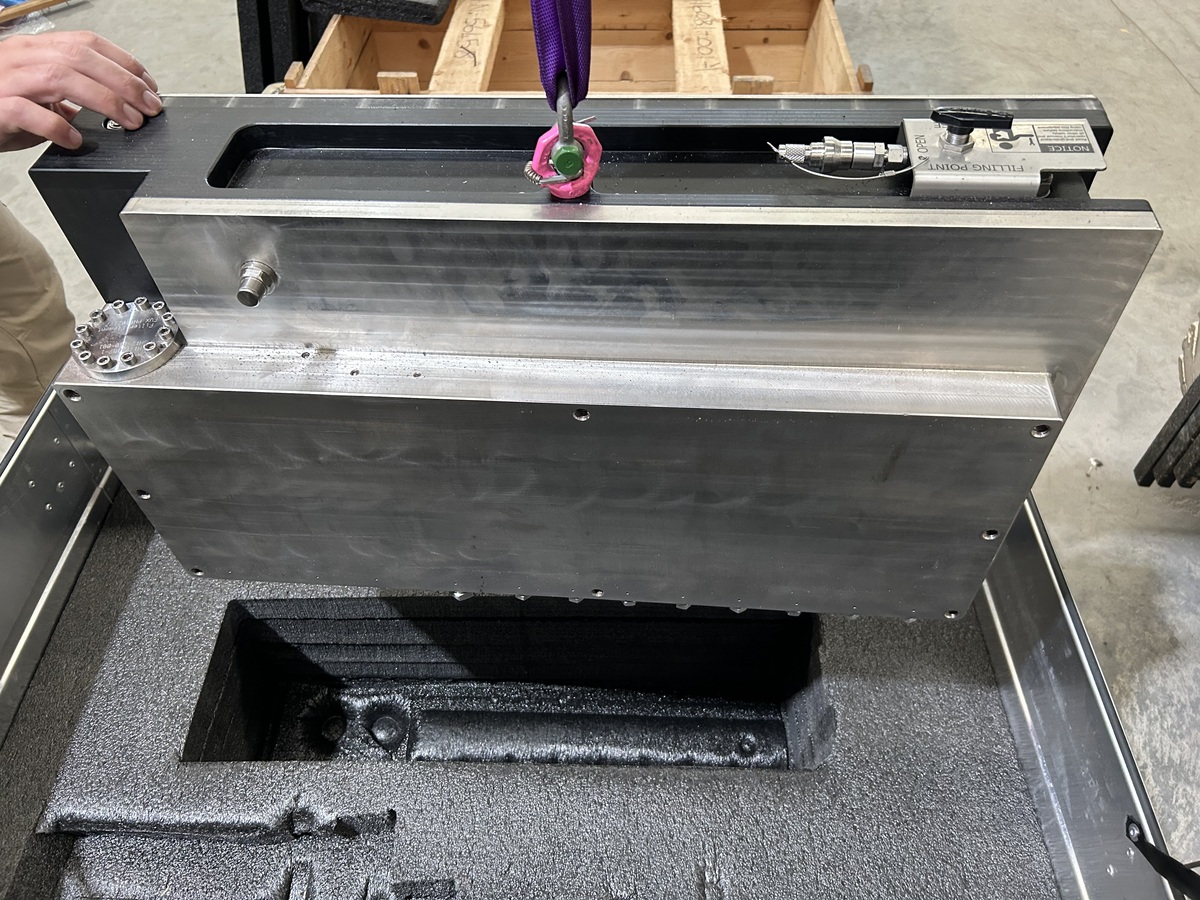

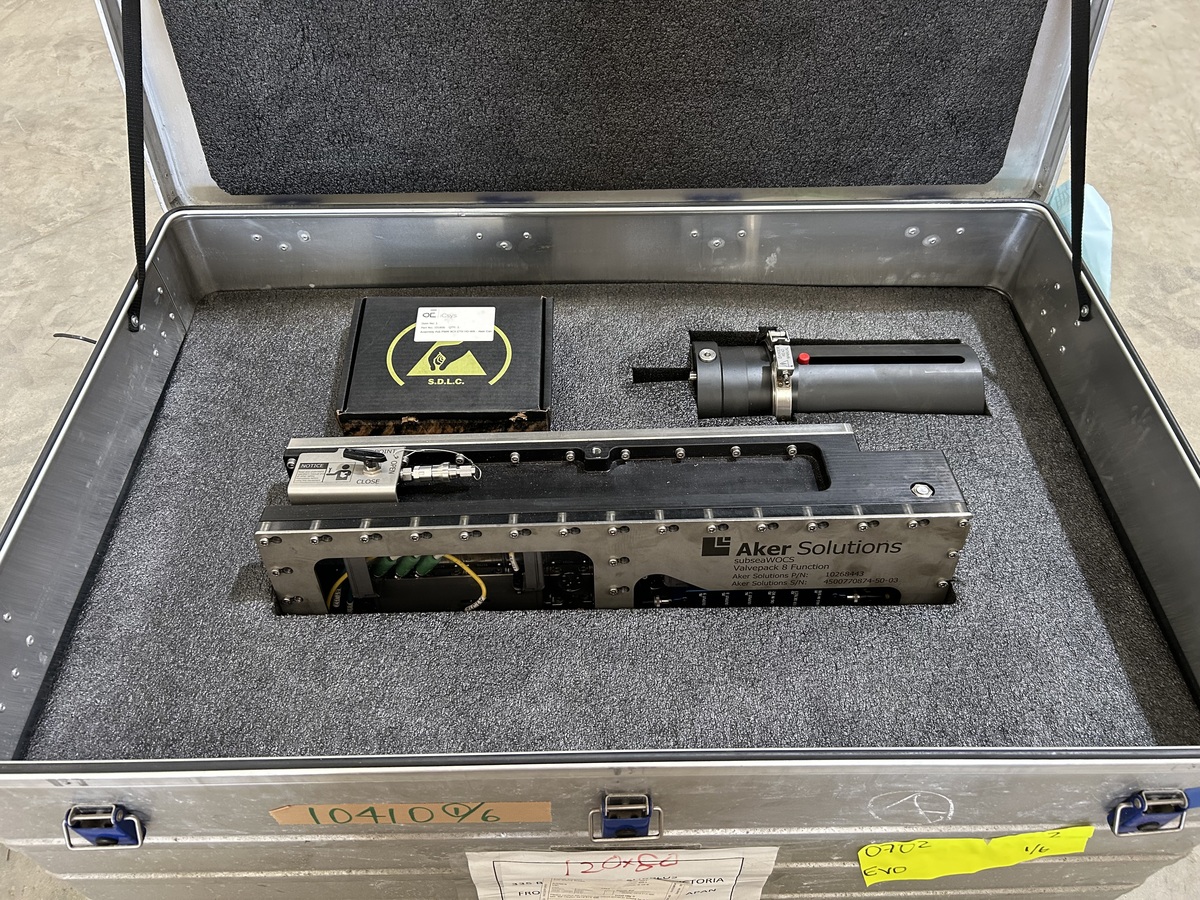

The subseaWOCS valve pack is a self contained unit

consisting of 8 pulse operated/controlled DCVs for

controlling 8 hydraulic functions on a subsea tool e.g. an

openwater workover stack or a running tool. The valve

pack is pressure compensated and suitable for us at

3000 water depth.

General Technical Specifications

Manufacturer: Envirex AS

Part Number: 103976 (AkerSolutions PN#10268443)

Description subseaWOCS 8 function ValvePack

Weight (in air / submerged) [Kg] 210Kg / 160Kg

Depth Rating 3048m / 10.000ft

Operating Temperature -10°C/ + 60°C (14°F / 122°F)

Dimensions (W x H x L) [mm] 400 x 740 x 198

Electrical Data

Nominal Voltage 20...30 VDC

Nominal Power 10.6 W

Nominal Current 0.44 A

Max. Power 192 W

Max. Current 8A

Communication Ethernet - Modbus TCP/IP

Hydraulic Data

Number of function lines 8 x

DCV Type HCV151.11.11.12-3.2

DCV Description 3/2 way Metal to Metal Seal Hydraulic Control Valve

Maximum Supply Pressure 345 BAR (5000PSI)

Maximum Operating Pressure 345 BAR (5000PSI)

Mximum Return Pressure 345 BAR (5000PSI)

Maximum comp. pressure 0.7 BAR (10.15PSI)

Fluid Most common subsea fluids *

* The lubricity of different fluids varies and will influence the no. of operations. Please contact us for more information.

Performance Data

[ FL01… FL08 ] Cv P-A = 0.23

Cv A-R = 0.20

Steady State Leakage Less than 0.2ml/min

[ By-pass Valve ] Cv P-A = 1

Cv A-R = N/A

Steady State Leakage Less than 0.2ml/min

No. of Operations @ 345 Bar 25000 **

** The lubricity of different fluids varies and will influence the no. of operations.

Along with supported parts from various OEM's:

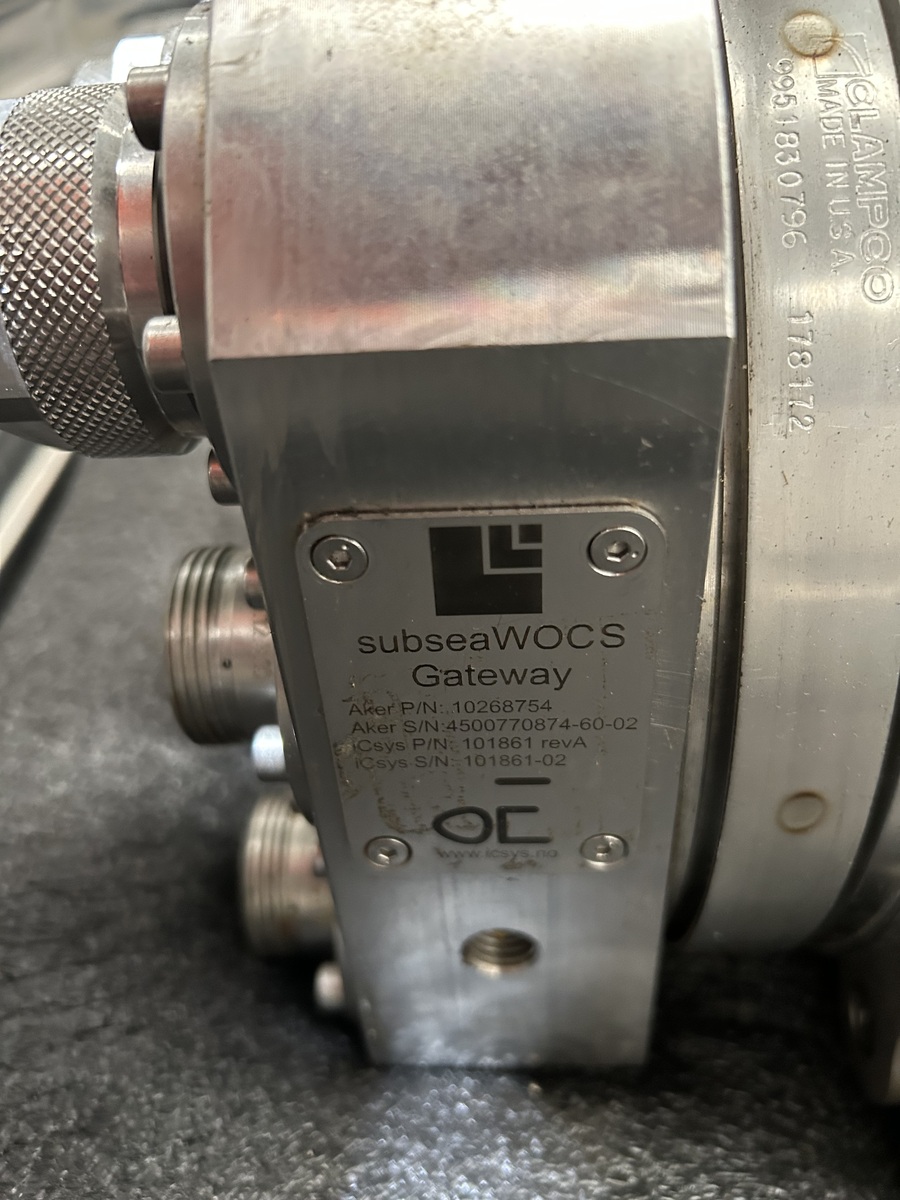

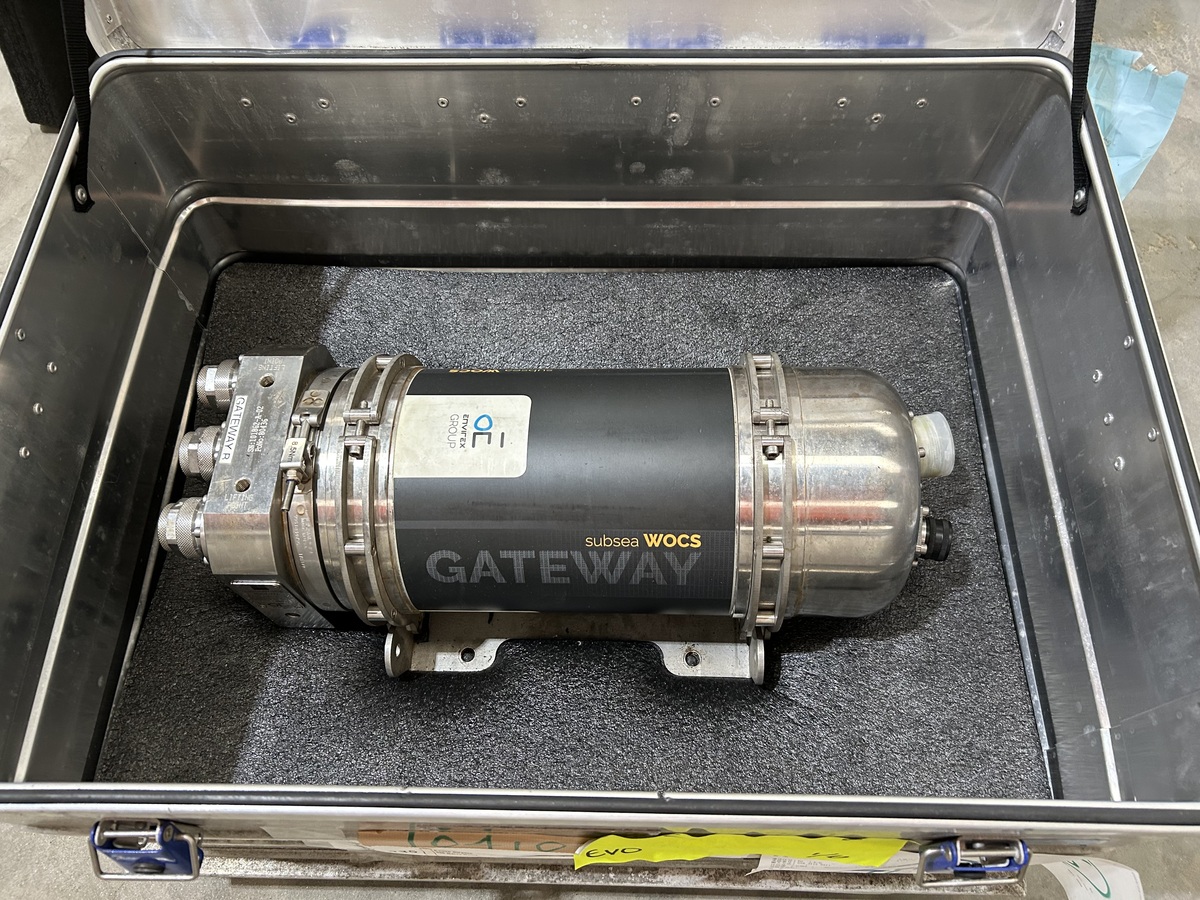

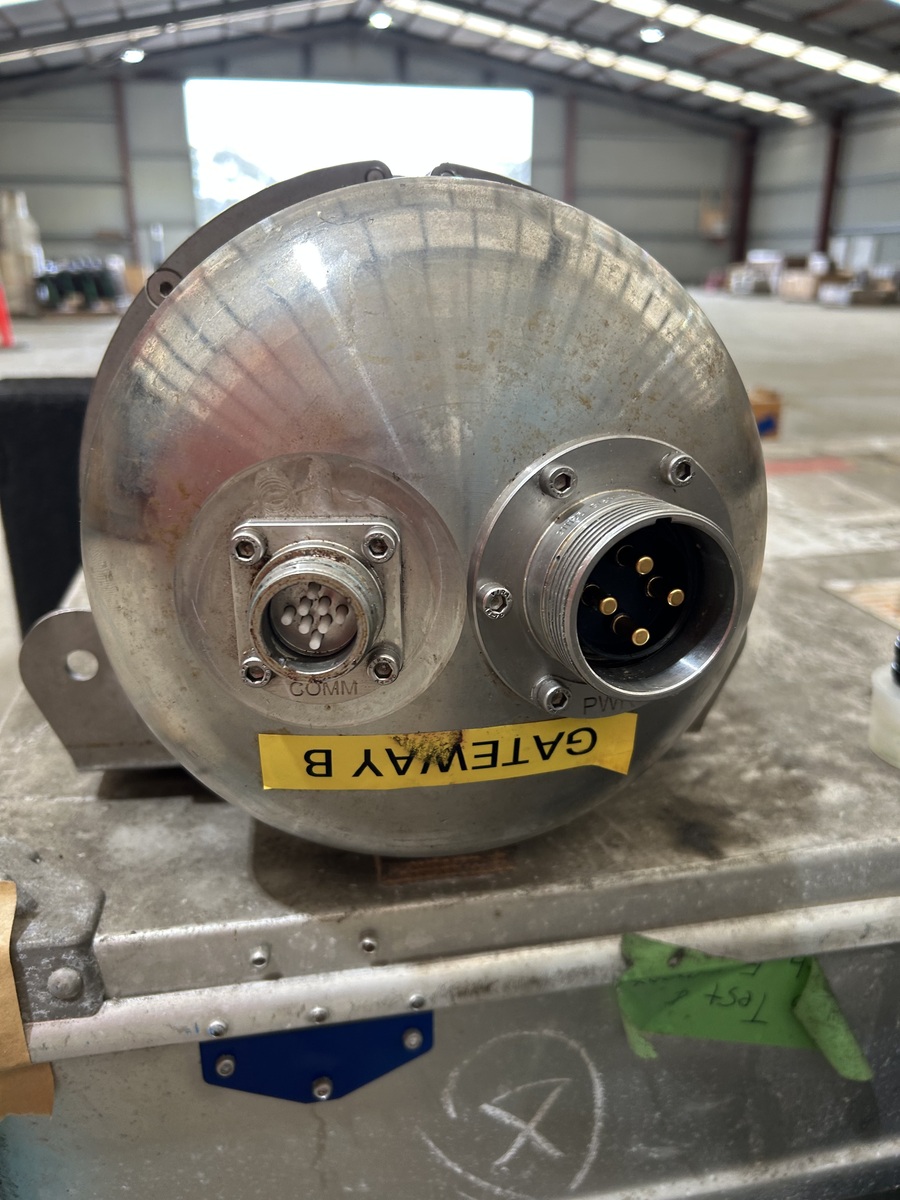

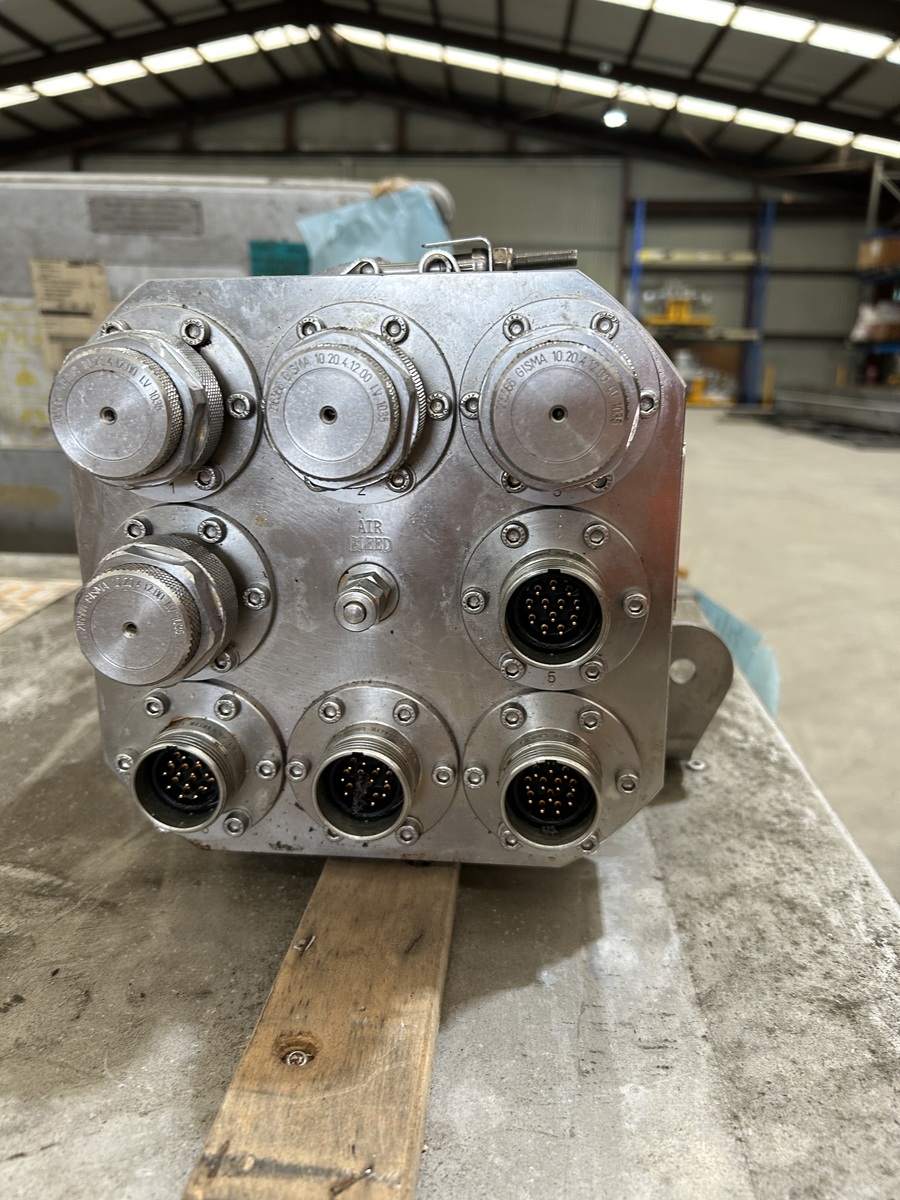

Envirex such as the Subsea WOCS Gateway PN#101861 (AkerSolutions PN#10268754)

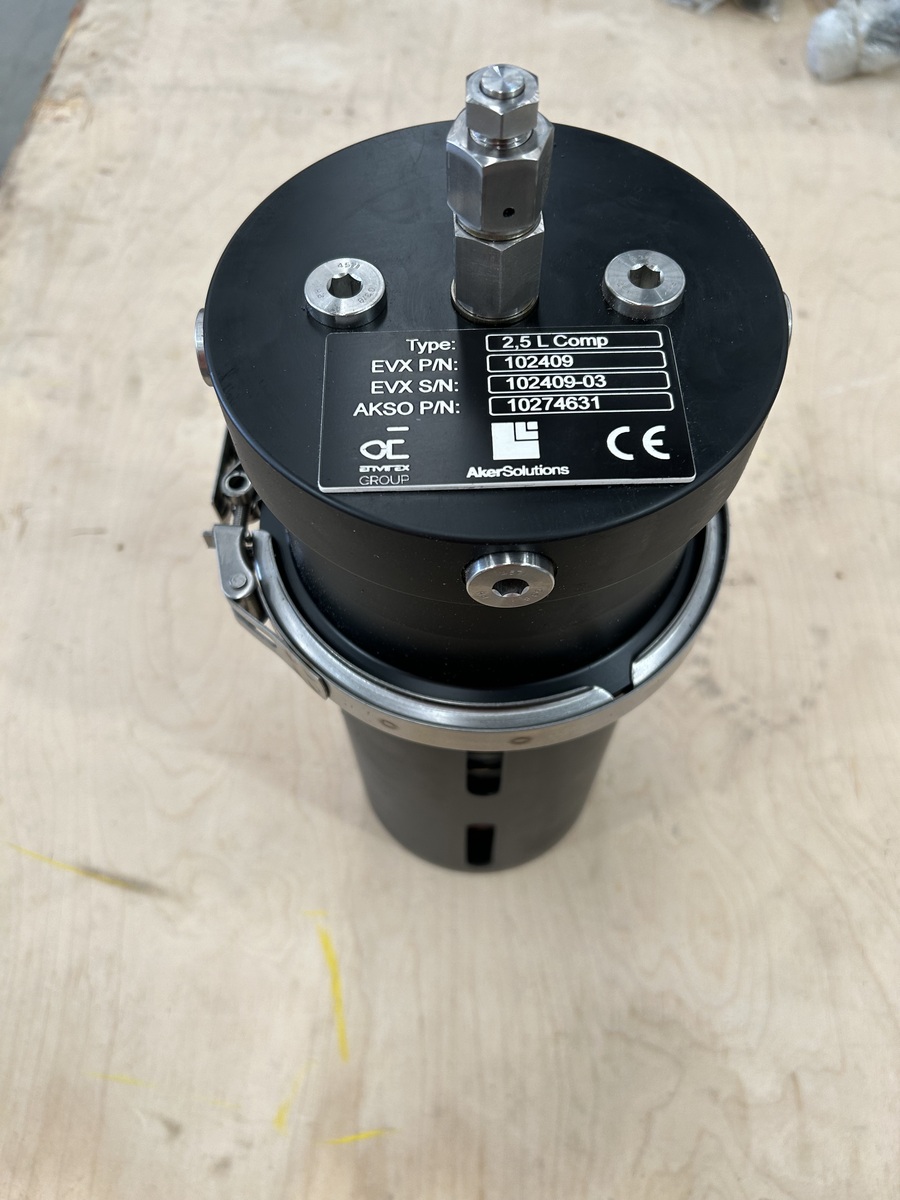

Envirex 2.5L Compensator PN#102409 (AkerSolutions PN#10274631)

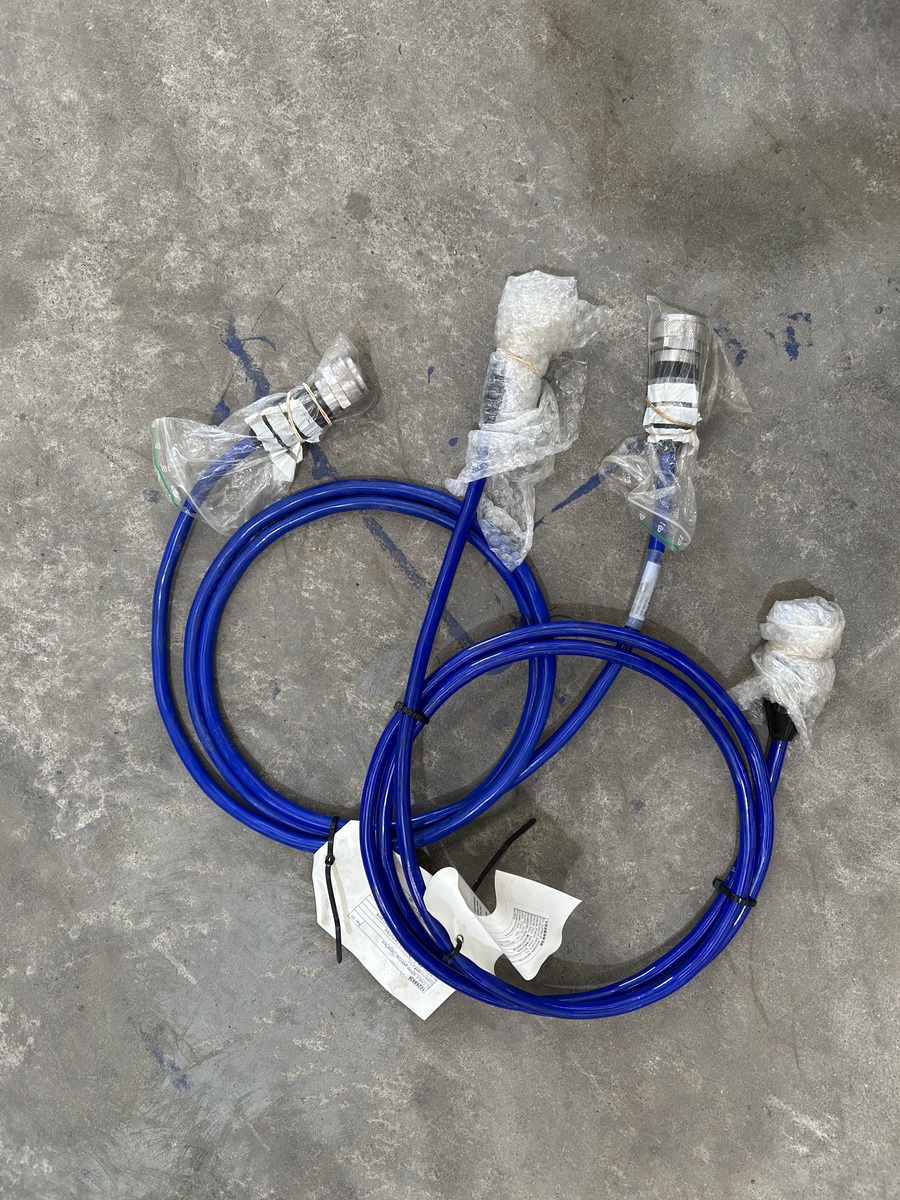

Gisma electrical power jumpers,

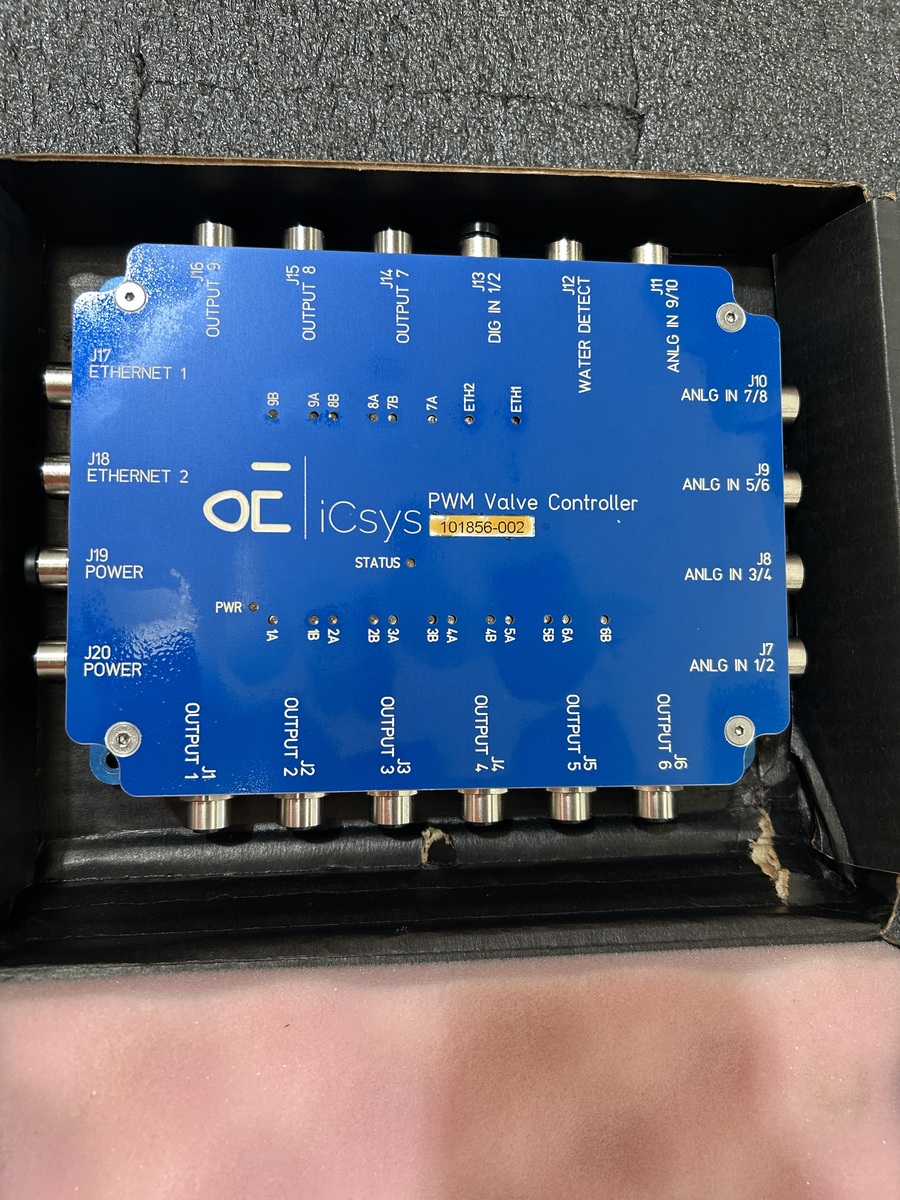

iCsys PWM Valve Controller PCB Assembly  PN#101856

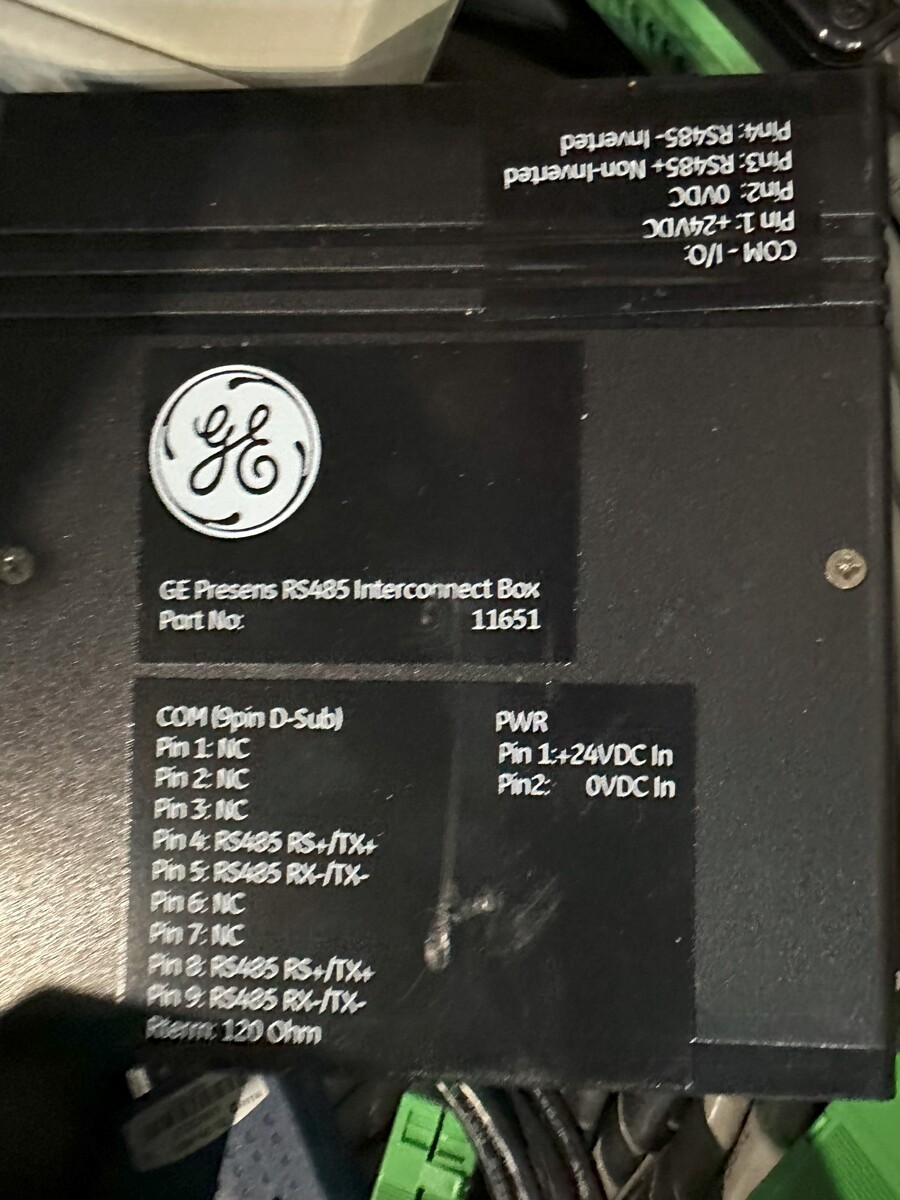

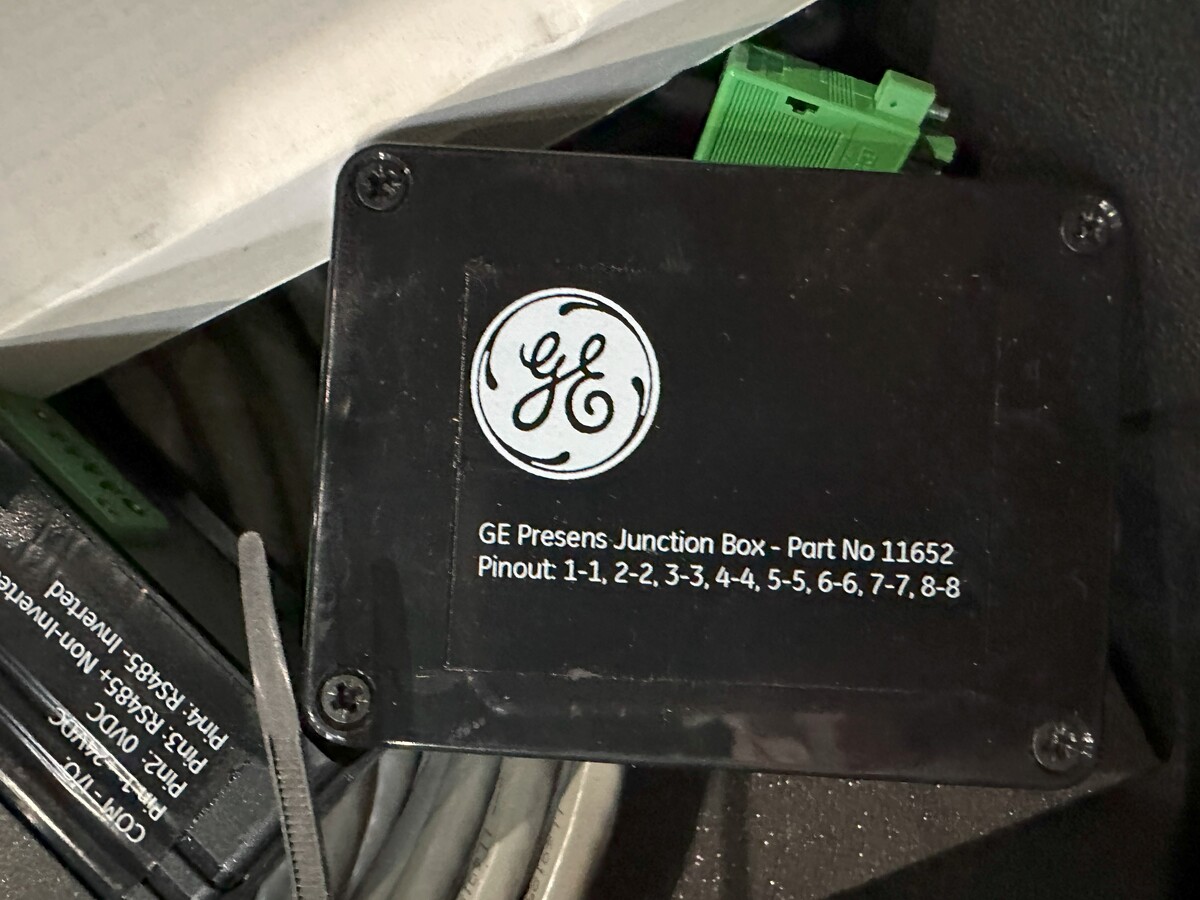

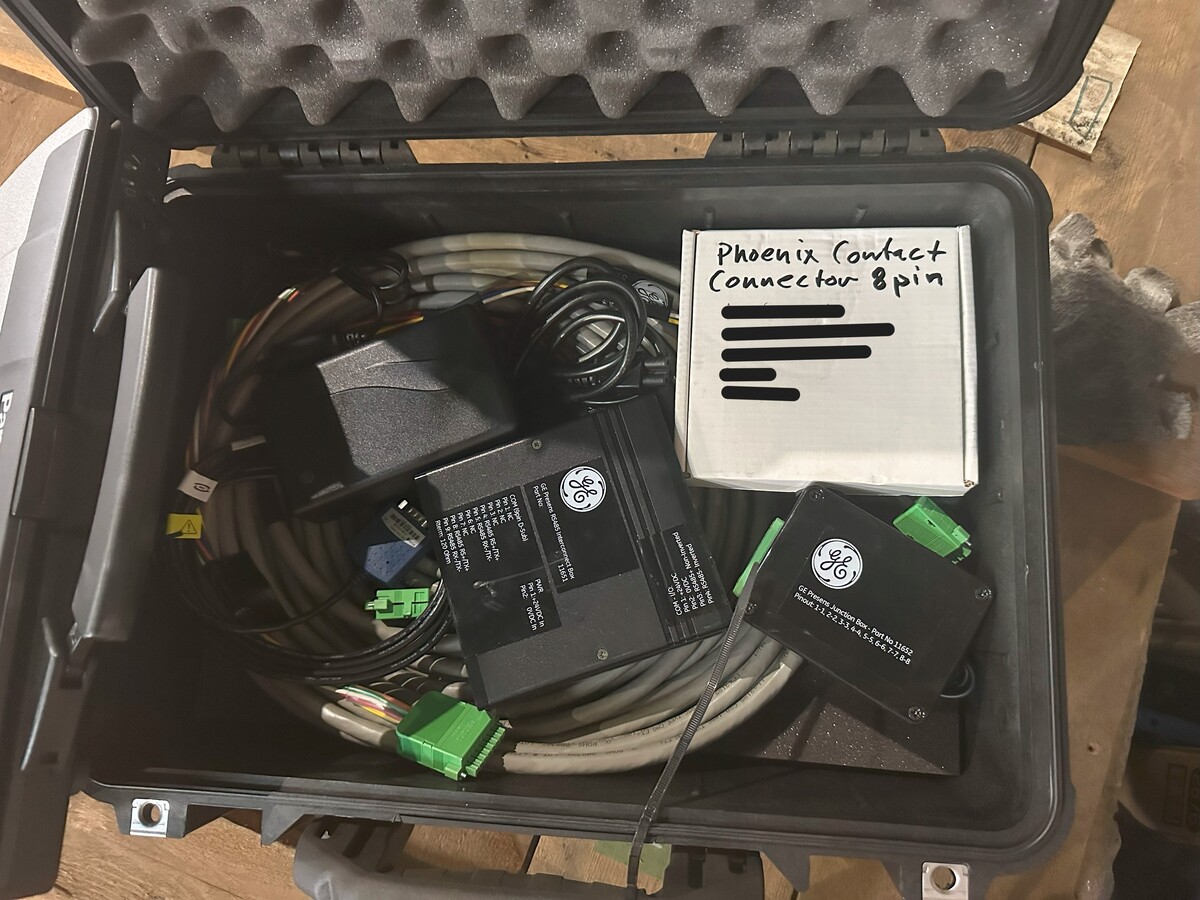

GE Presens RS485 Config Kit PN#11545 (AkerSolutions PN#10251684)
