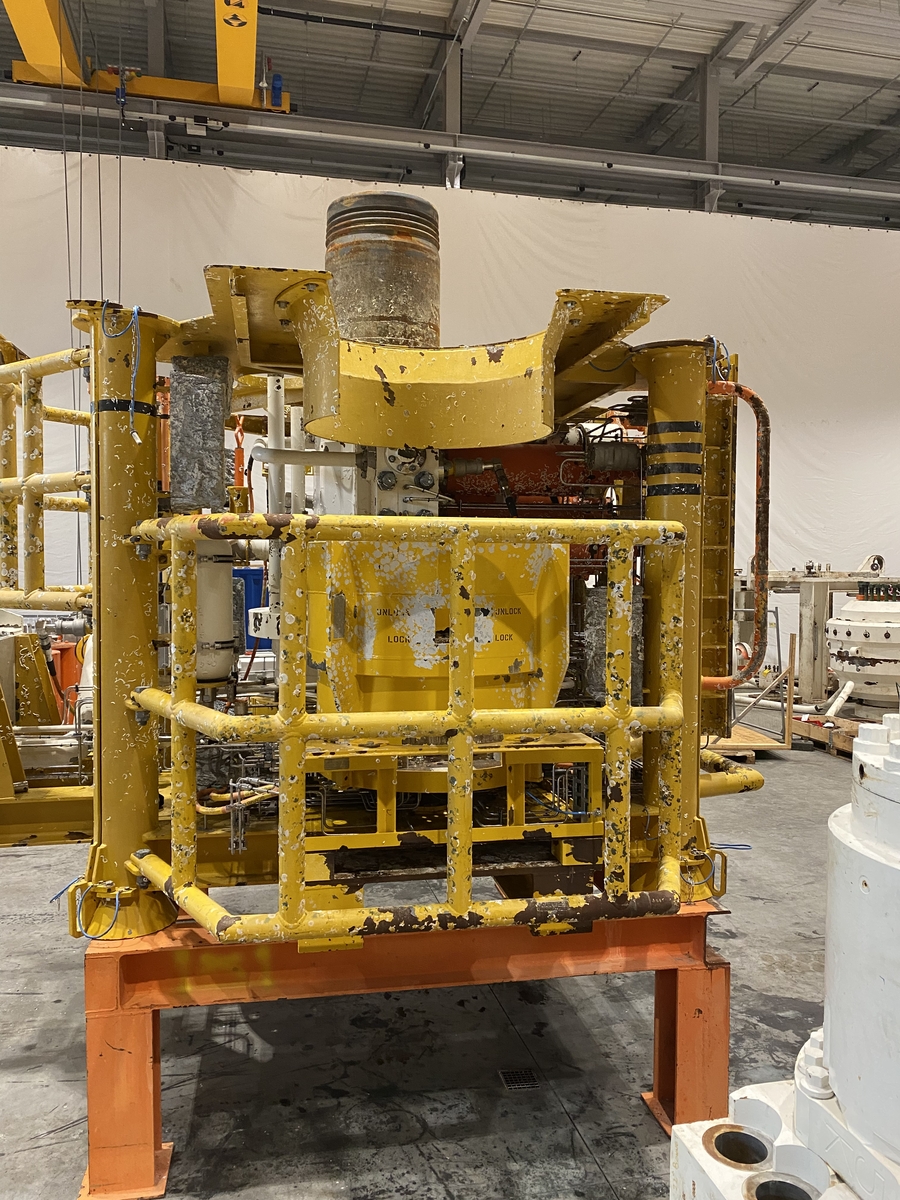

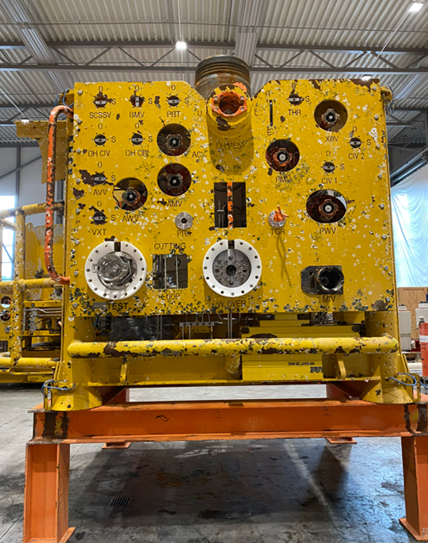

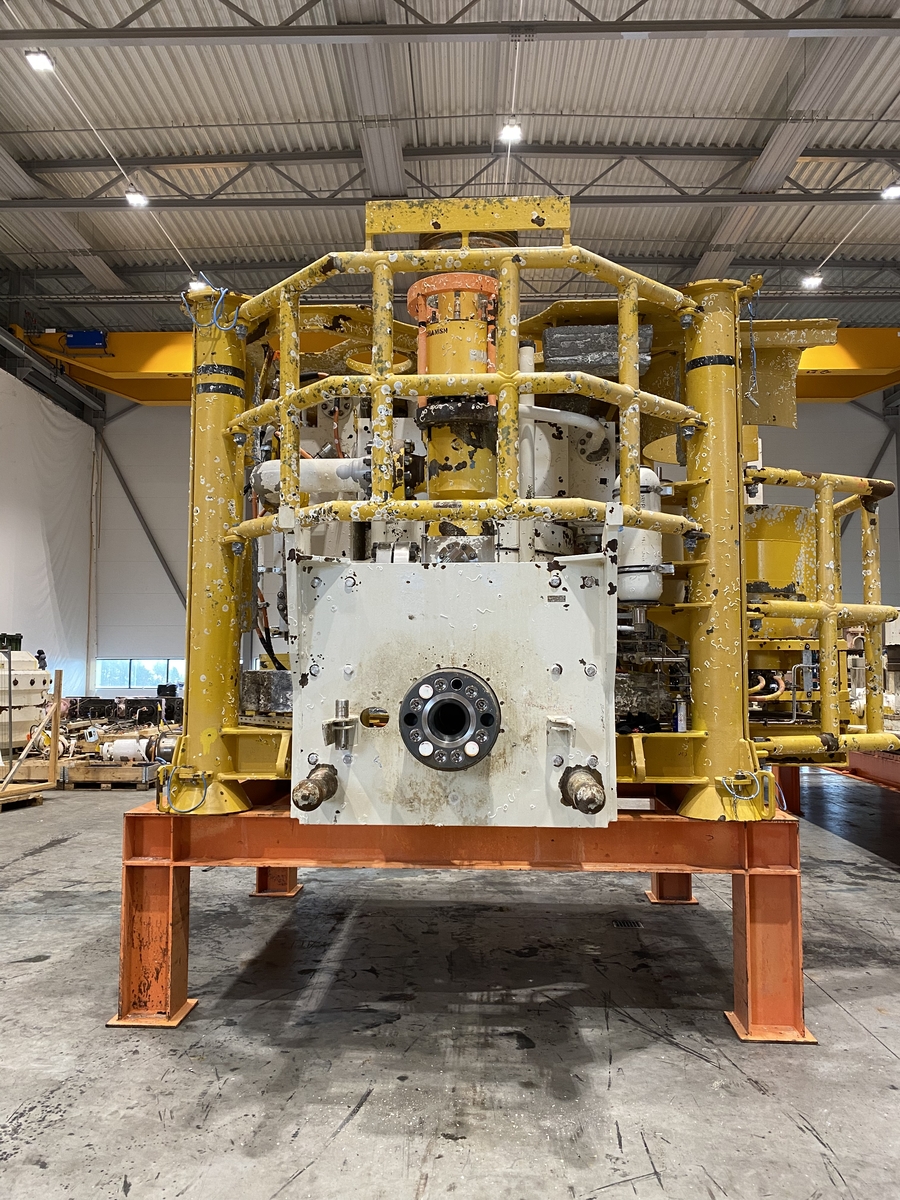

2010 Aker Solutions Horizontal Xmas Tree
Template configured 18-3/4” Horizontal 5-1/8” x 2-1/16” Production XT. Placed in dry, heated indoor storage in Norway and available now.
Details
OEM - Aker Solutions
Year of Manufacture - 2010
Identifiers - Serial Number: 144157-001, Part Number: 10078392
Design Life - 20 Years
Storage Location - Norway
Condition - Used, Cleaned, Inspected and Preserved
Configuration - Horizontal
Design Pressure -10,000 psi
Design Temperature - Class U, (0oF to 250oF / -18°C to 121oC), Downstream choke temperature rating -45°C to 120°C
PSL - 3G
Water Depth Rating - Min 200m
Design Code ISO 13628-4
Hydraulic Pressure - HP: 10000 psi , LP: 3000 psi
Installation - Guidelines (template configuration)
XT Mandrel - 18-3/4" H4
XT Connector - 18-3/4” H4
Flowline - 12” Multi-bore Clamp Connector (6” production and 1” annulus)
