Gall Thompson Breakaway Coupling

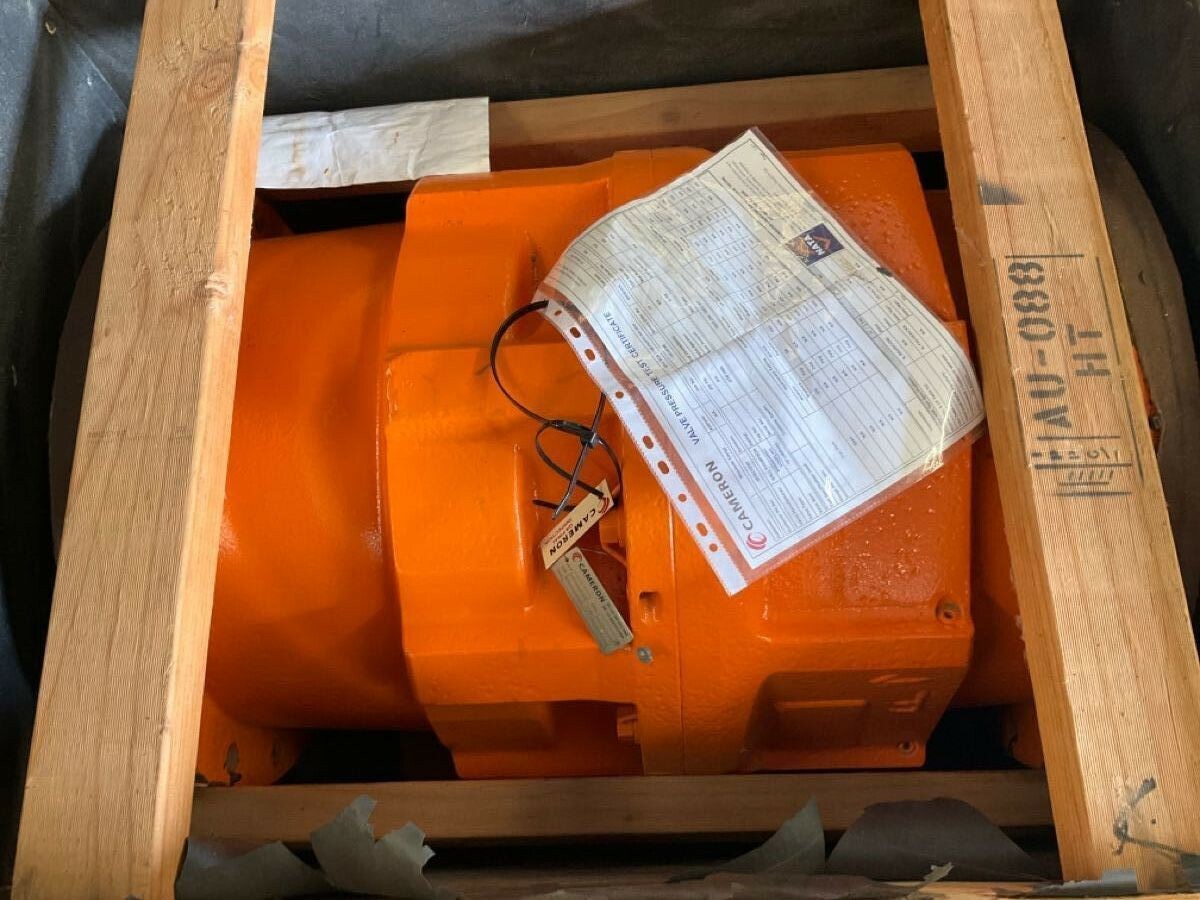

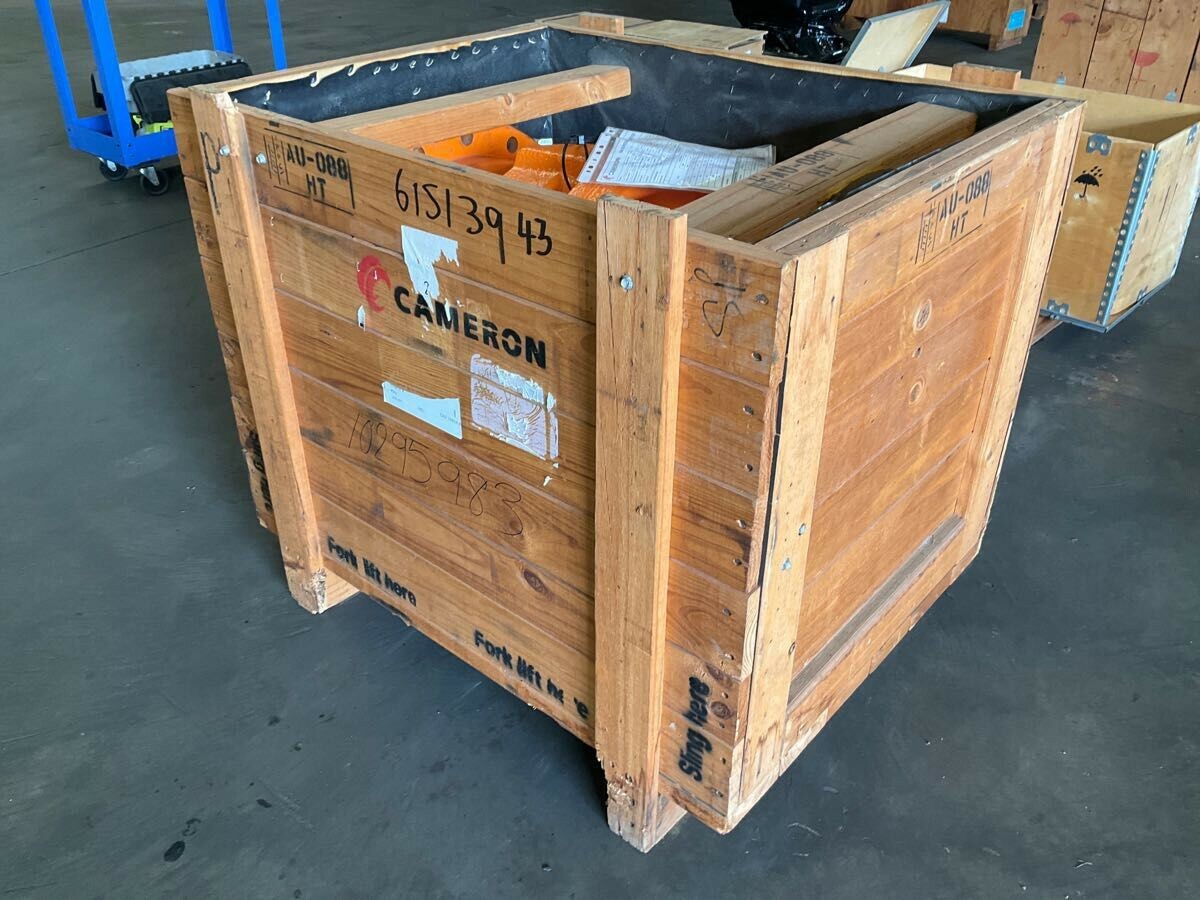

16" (400 mm) 220 psi Gall Thomson marine breakaway coupling to suit floating hose. Delivered 2004, last pressure tested January 2013 and in long term storage since. Test certificate available. Inspection welcome.

Details

A marine breakaway coupling is a safety component in the floating hose strings FPSOs use to offload stored oil to a tandem moored tanker. If the mooring hawser parts and the tanker drifts free, the coupling separates under tension. Petals close inside each half of the coupling, isolating both sides of the hose and preventing loss of containment.

This unit was delivered in 2004 and was last pressure tested in January 2013, after which it went into long term storage.

Main details

  • Manufacturer: Gall Thomson
  • Size: 16" (400 mm)
  • Pressure rating: 220 psi
  • Year built: 2004
  • Condition: Used, in storage since 2013
  • Serial number: GTM 0866
  • Documentation: Test certificate (January 2013)

Contact us for further information.
