3 Diver Control Panel

New Portable 3-Diver Control Panel with integrated communication radio and CCTV. Reach out to us for further details, including delivery estimate.

Details

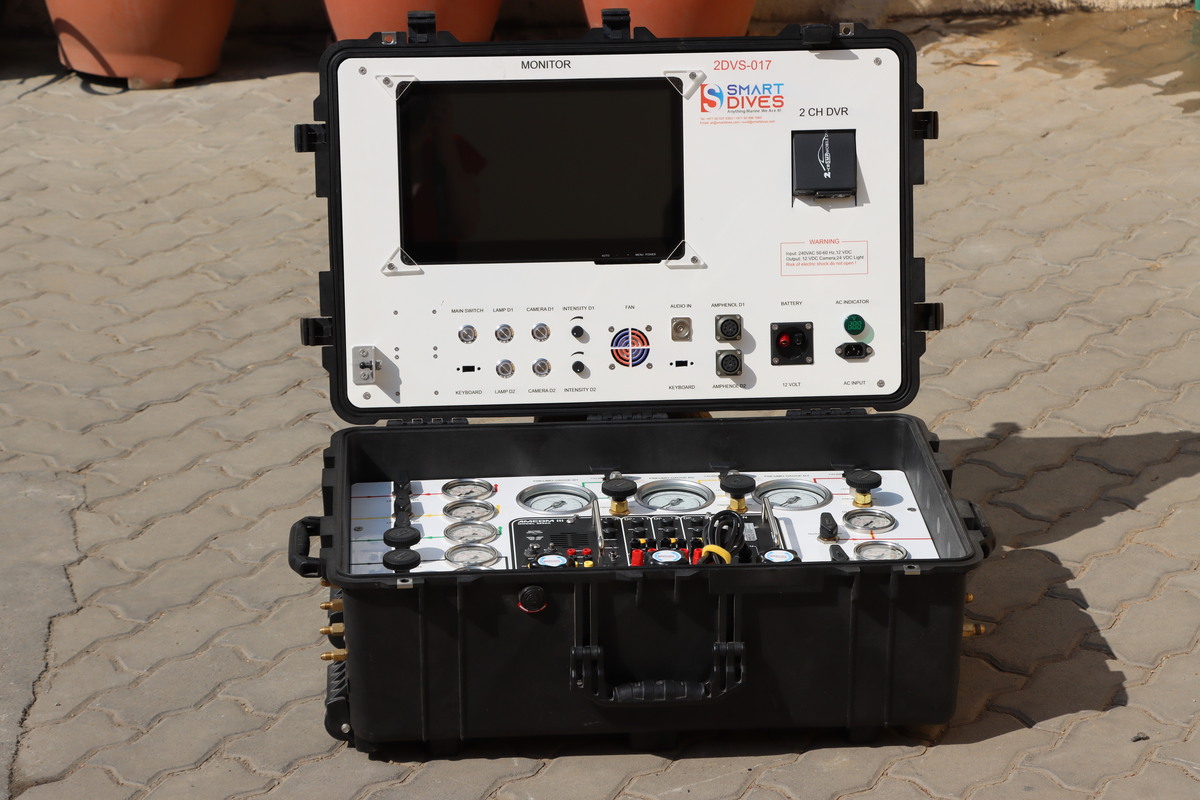

Portable 3 diver air control panel comes with 3 diver radio and 2 diver CCTV with built-in DVR "Black box". The panel is fitted in a pelican 1650 case. Fully compliant to IMCA D018 AND D040. The radio communication system is provided with a battery back-up

Specifications

Capacity: 3 Divers
Inlet connections:
- 3 x HP Air inlet (4 JIC) MWP
- 200 bar and 2 x LP Air Inlet (6 JIC)
Outlet connections:
- 3 x LP Diver Air Outlet (6 JIC)
- 3 x Pneumo Air Outlet (4 JIC)
Max Gross weight: 50kg
Dimensions
- 30.8 x 20.5 x 11.6"
- 78.2 x 52.1 x 29.5cms
Medium: Breathing air
Depth gauge: 70 MSW
Regulator Pressure:
- Max Inlet: 6000PSI
- Max Outlet: 400PSI
