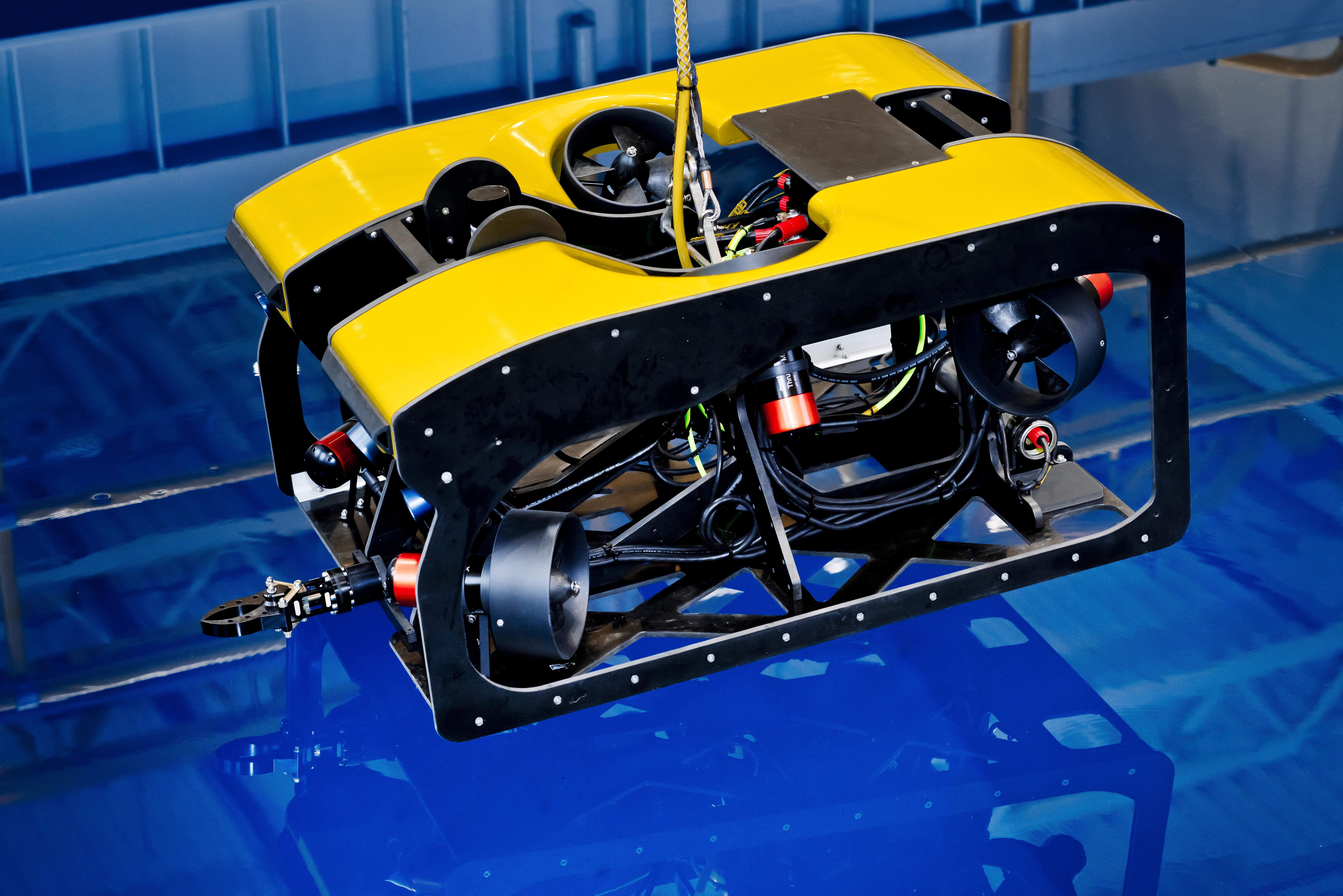

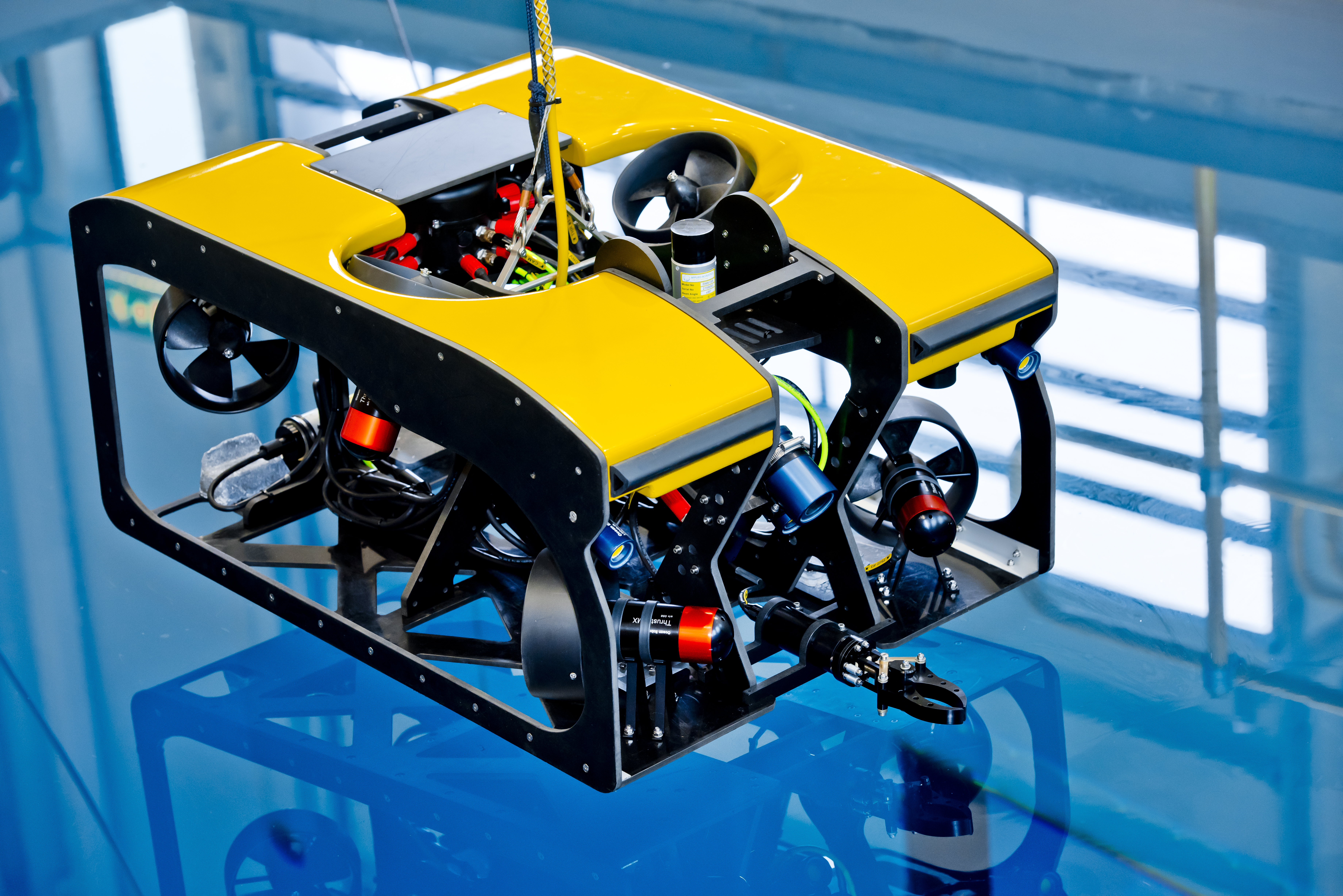

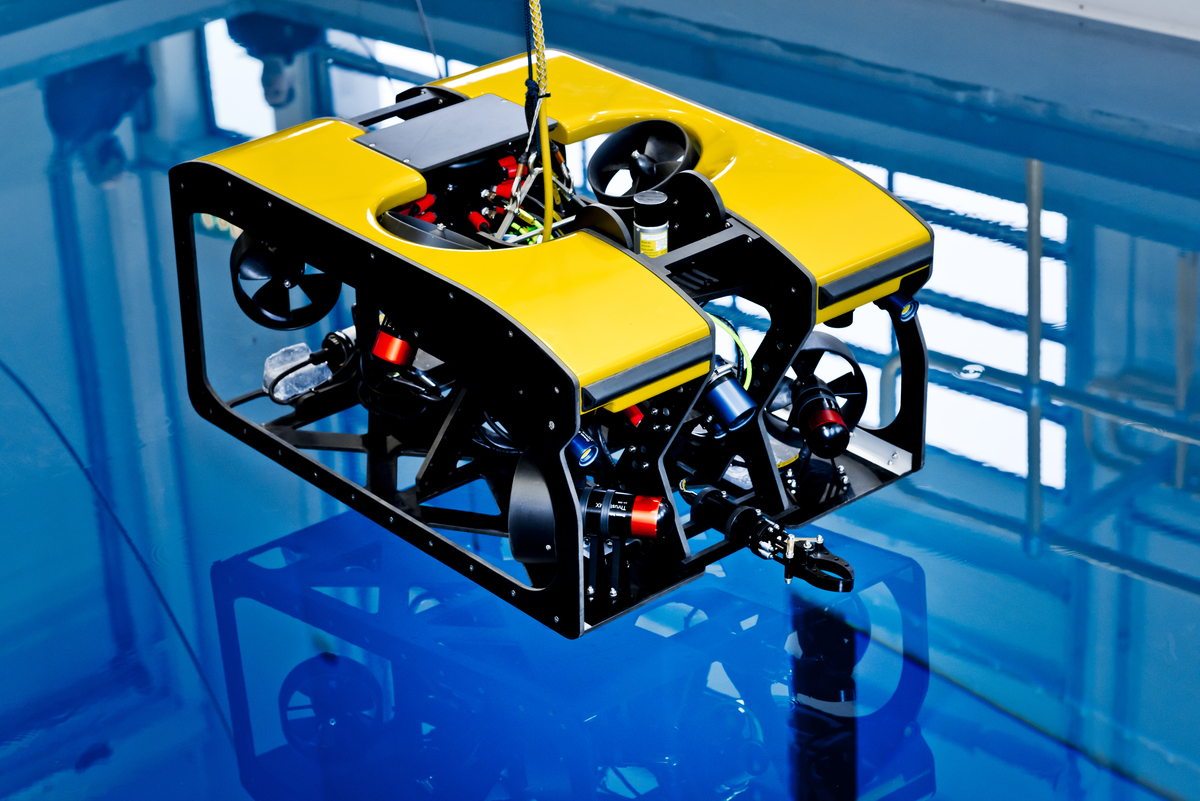

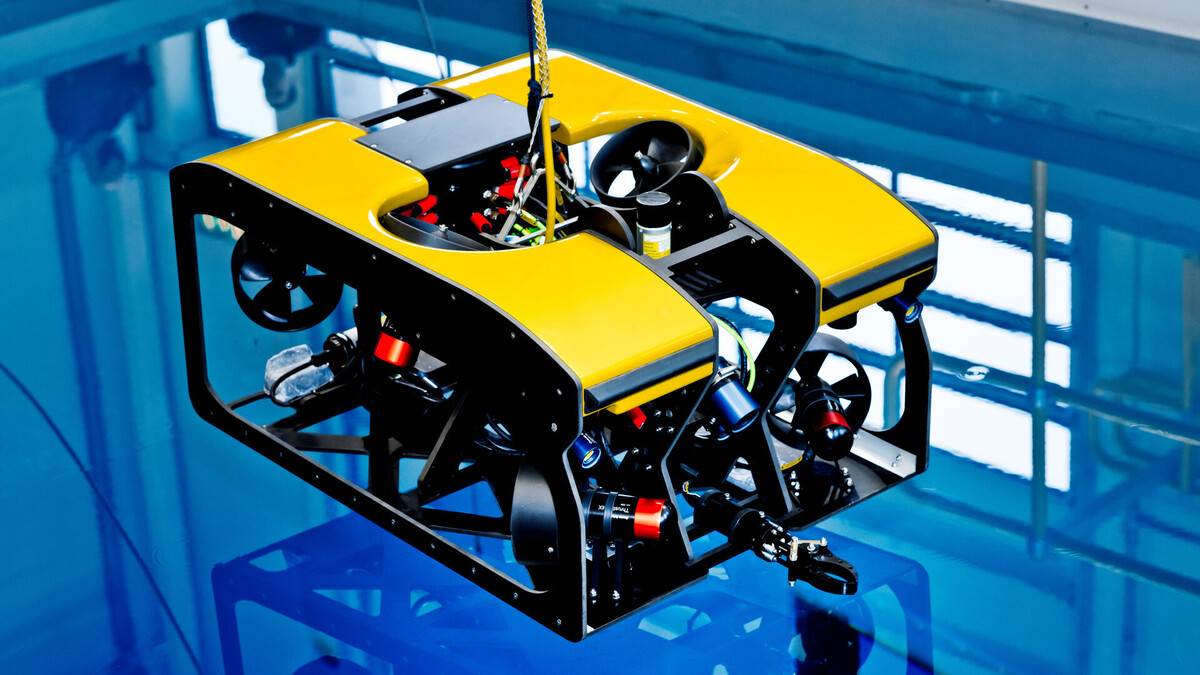

Aegir 50 ROV

 Technical specifications:

Communication Networks

• 1 x HD-SDI fiber link
• 1 x GB Ethernet  as option link
• 2 x Analog video, PAL or NTSC
• 3 x DATA

Survey Connections on vehicle

The vehicle comes as standard with the following connectors supplied:

•  3 x DATA + 24VDC
•  1 x 16-bit isolated A/D converters

Tooling power supplies

The standard connections for external power include:

• 1 x 300VDC, up to 1kW
• 2 x 24VDC, up to 250W
• 2 x ±24VDC, 3A

As an option the ROV can be fitted with 230VAC external power.

Camera system and tilt

 ROV comes with 2 camera connections as standard:

• 2 x Analog video (PAL/NTSC) + 24VDC

Lighting System

 Vehicle comes equipped with 4 LED lights, each individually controllable.

Data per  light:  3500lm

Sensors

Vehicle is as standard equipped with:

• 1 x depth sensor with over-depth warning
• 2 x IMU with 3D magnetometer, accelerometer and gyro
• Water ingress alarms
• Earth leakage alarms

Sonar and Transponder

 The vehicle can be fitted with any sonar and transponder. To keep the precise control char acteristics of the ROV please consult with Ocean Robotics to get units that match the rest  of the systems layout.

Auto Functions

Standard (all can be disabled by user under operation):

• Depth
• Heading

Optional:

• Altitude (requires altimeter or DVL)
• AutoPilot / Station-keep

Contact us for more information on pricing about spare parts package list and other accessories.
