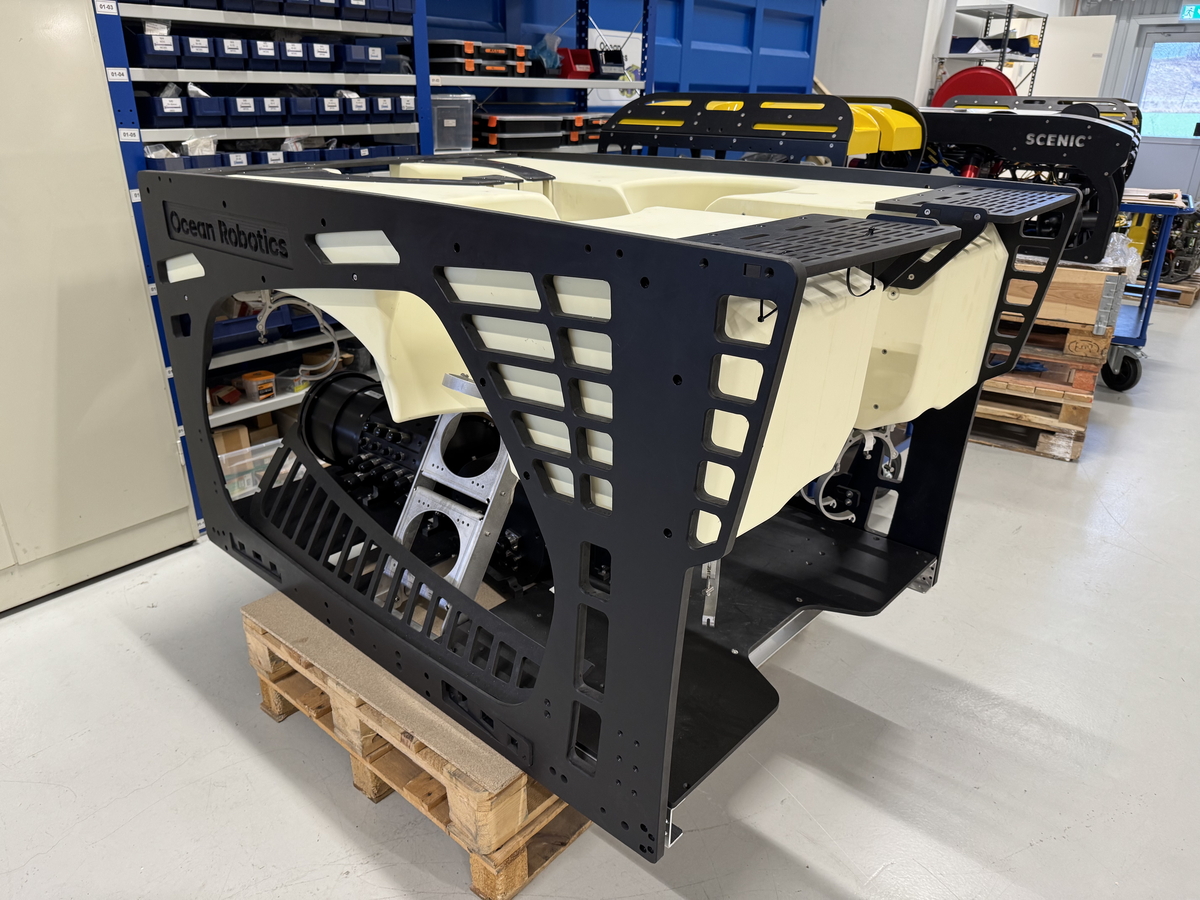

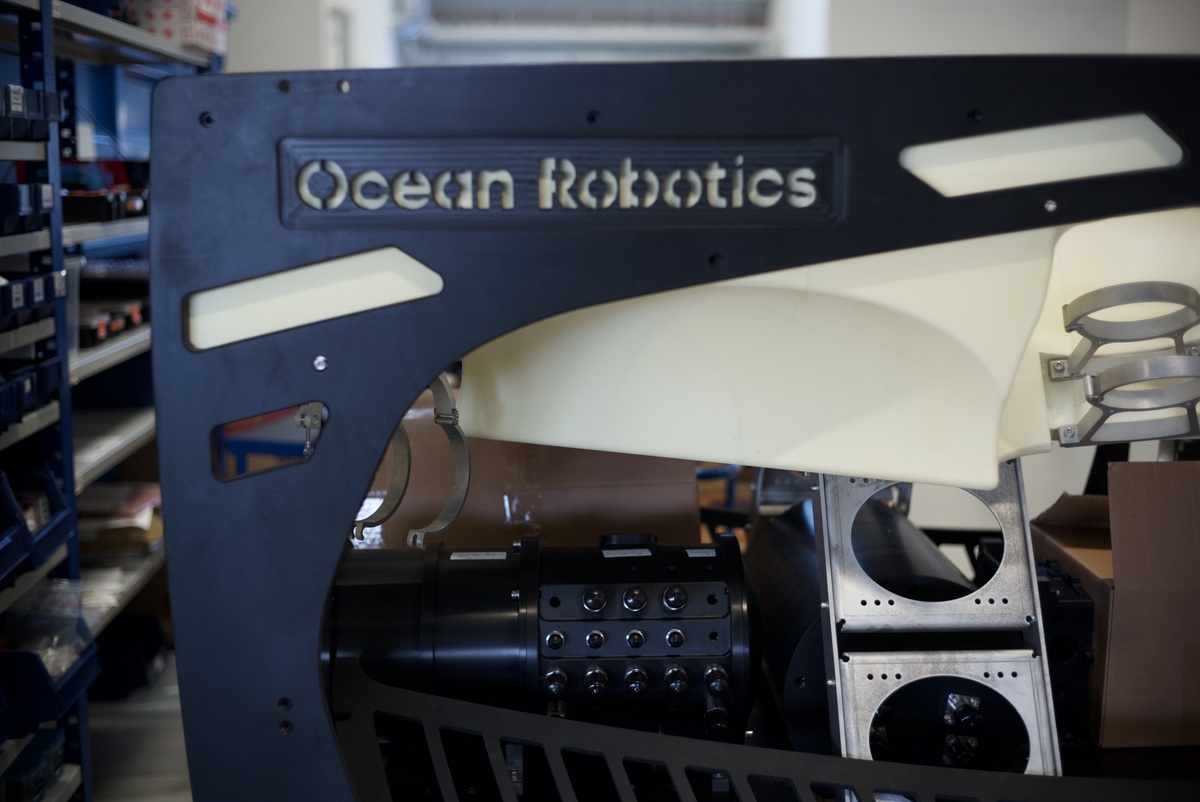

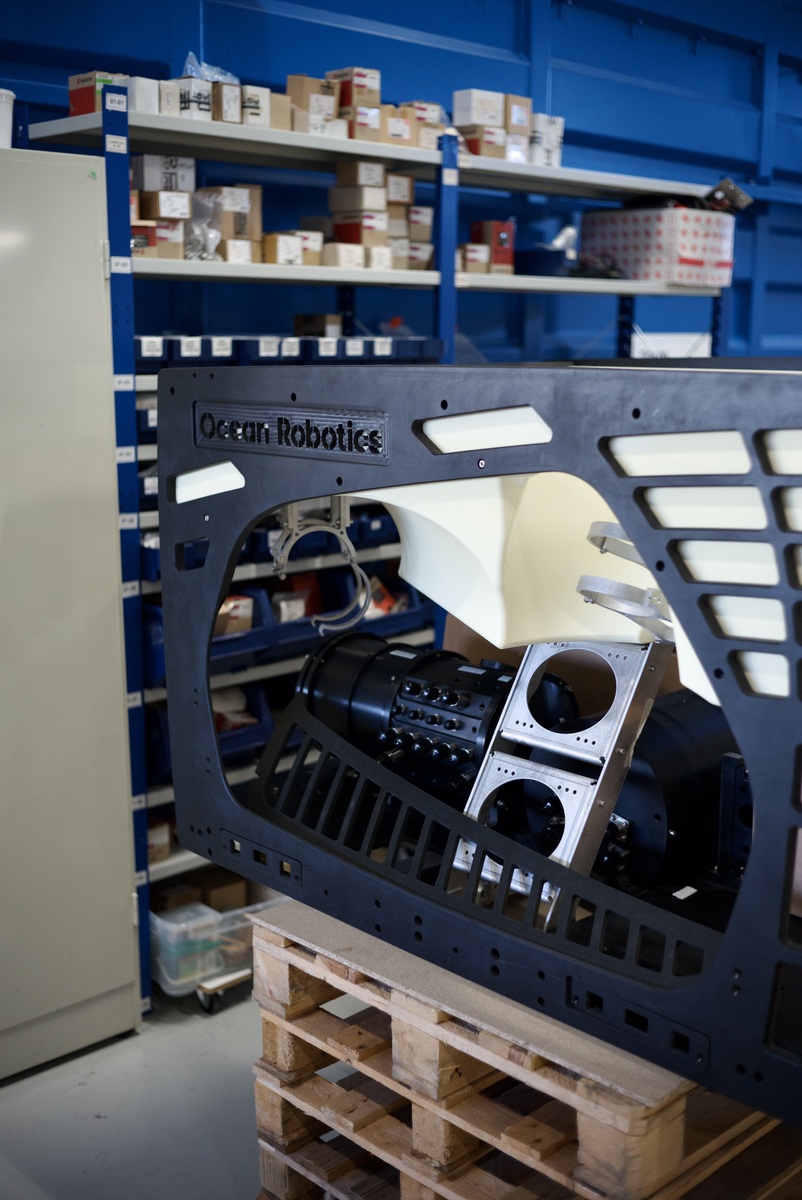

Aegir 250 ROV

 Technical data

• Length: 1350mm
• Width: 1000mm
• Height: 850mm
• Launch weight: 350kg
• Payload: 30kg
• Through frame lift: 100kg
• Depth rating: 1000m
• Thrust   Forward: 1800N
• Lateral: 1250N
• Vertical: 1450N
• Power: 20kW

Besides the system’s internal orientation sensors  the vehicle can be equipped with a vast range of  external sensors and actuators. SD and HD video  channels, GB Ethernet and various serial formats  are but a few of the possibilities.

The electronics of the vehicle are all easily reached  in their extendable rack, even while powered, for  maintenance and service. The internal  communication network, which is divided into  several isolated nets to maintain integrity at all  times, is based around a core real-time OS.  Communication between the vehicle and surface is  based around a fiber multiplexed channel, with all copper options for rugged, field-maintainable  systems.

 Aegir is very easy  to control. Thanks to the sophisticated control  system with integrated 3-dimensional orientation  sensors it doesn’t take long to get acquainted and  mastering piloting the ROV.

 Aegir packs a very powerful punch with seven  brushless direct-drive DC thrusters, all tested in  operation down to the maximum depth.  The power supply chain is constructed solely from  solid-state components and transformers, no  converters or high-frequency parts are used, to  ensure a safe and reliable solution.

 Contact us for more information on pricing about spare parts package list and other accessories.
