Marine Emergency Diesel Generator Set

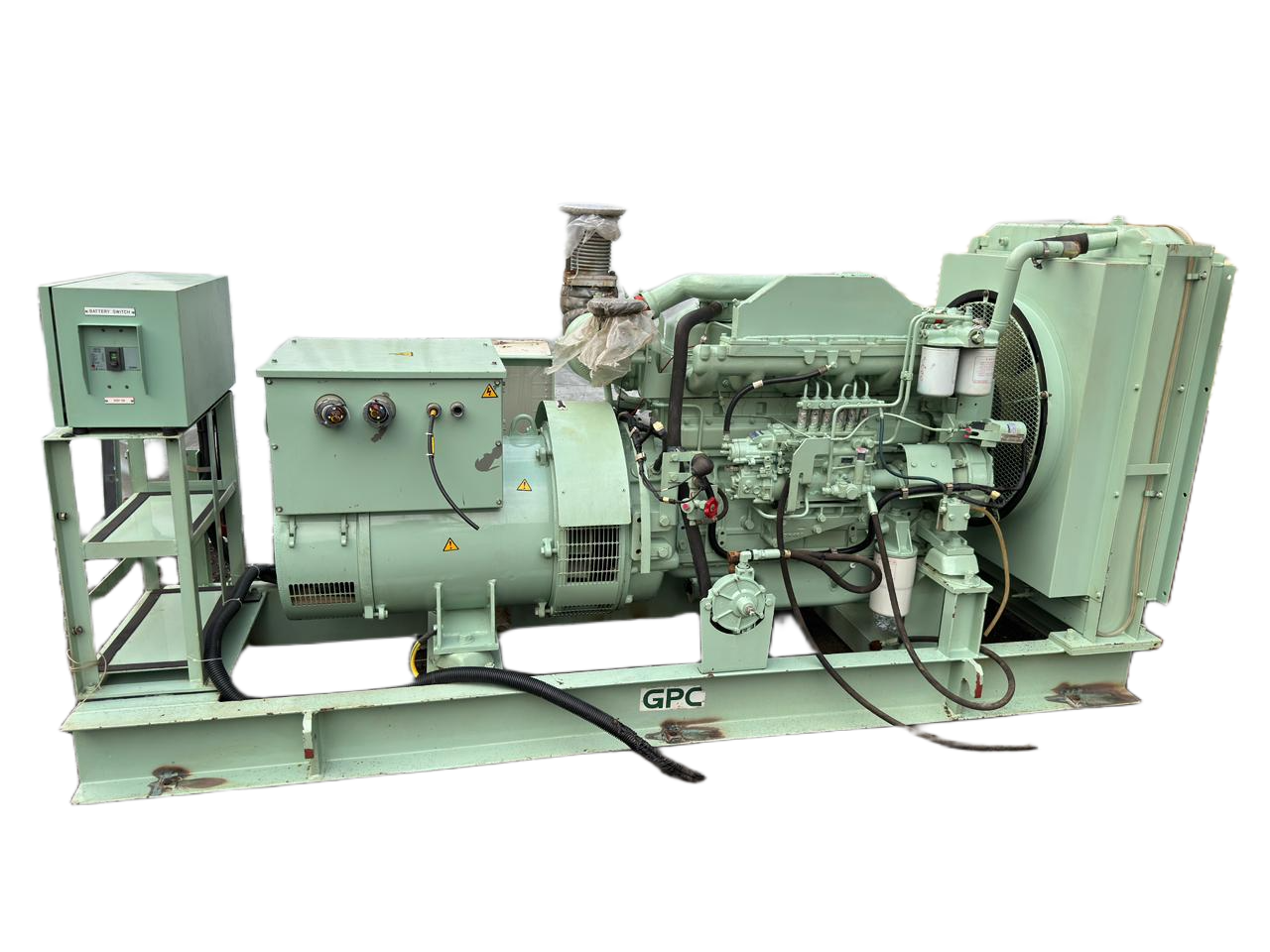

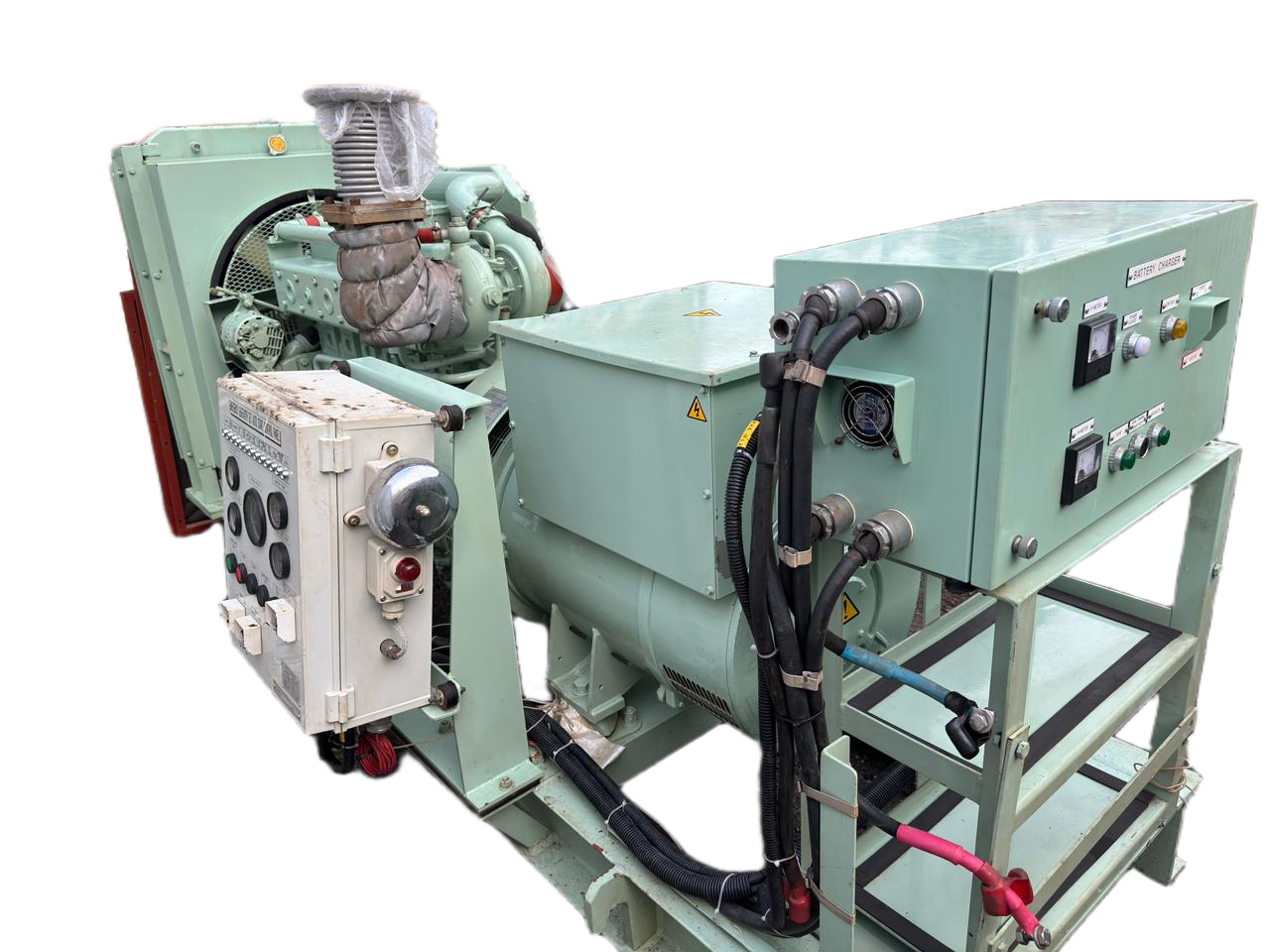

MARINE  Doosan AD086TIS Marine Emergency Generator
The AD086TIS is a 6-cylinder, 4-cycle, in-line, water-cooled diesel engine with wet turbocharging and intercooling, designed for marine generator (DG set) applications.

 Power output:
At 60 Hz / 1800 rpm: 253 PS (186 kW)
Displacement: 8,071 cc (6 × 111 mm bore × 139 mm stroke)

 Lubrication:

Oil pan capacity: 17 – 23 L (engine total ~25 L)
Oil Pressure: ~3.5 kg/cm² at full load, ~1.2 kg/cm² at idle

Engine Type: 4-cycle, inline, direct injection, water-cooled, with wet-turbo charger & inter-cooler

• Displacement: 8,071 cc (cubic centimeters)
• Rated Output: 253 PS (186 kW) at 1,800 RPM (60 Hz)
• Bore × Stroke: 111 mm × 139 mm
• Cylinder Configuration: 6 cylinders
• Fuel Consumption: 47 liters/hour at rated power
• Compression Ratio: 16.7:1

Key Features

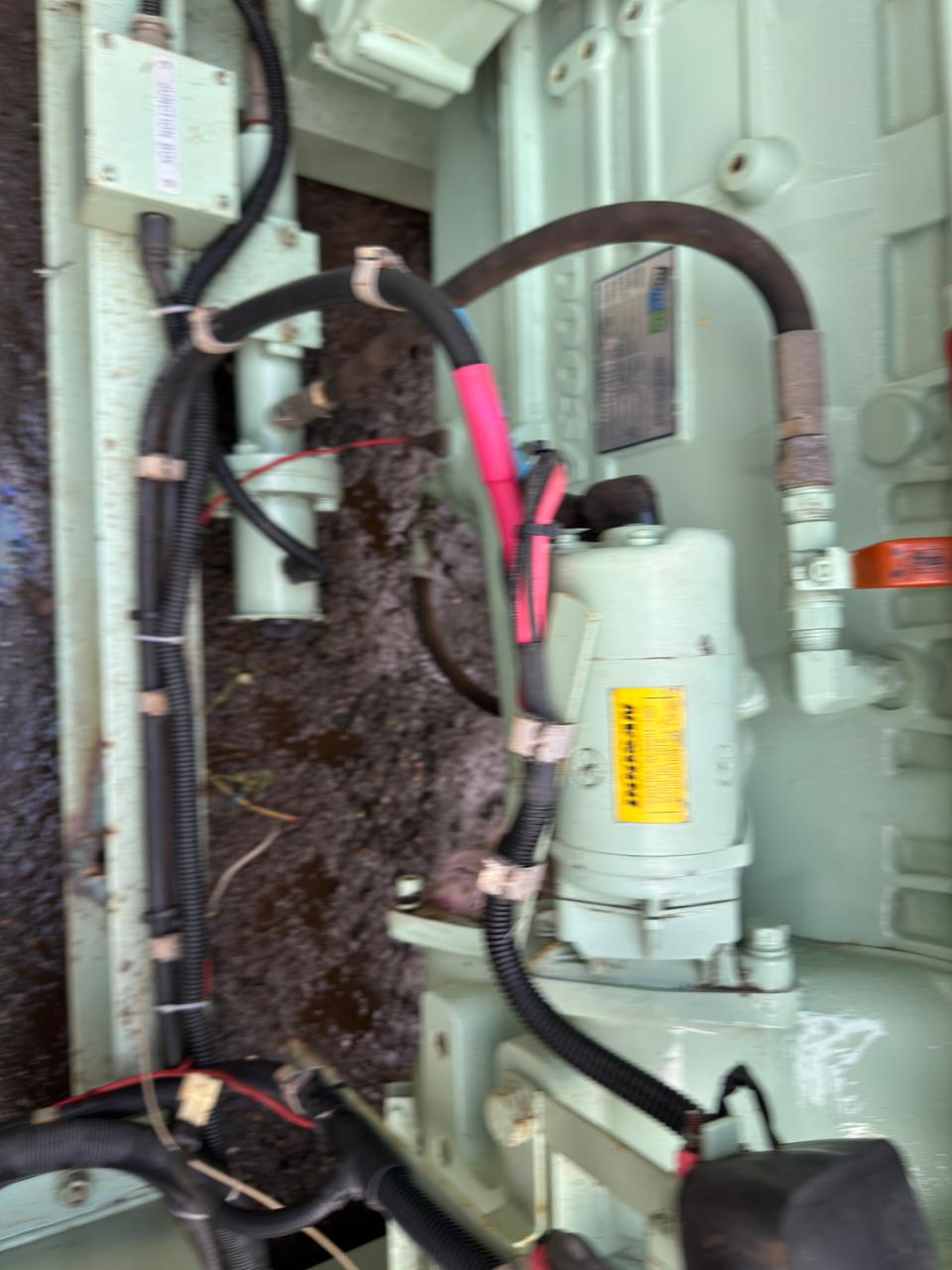

• Starting System: Electric start, 24V, 4.5 kW starter motor

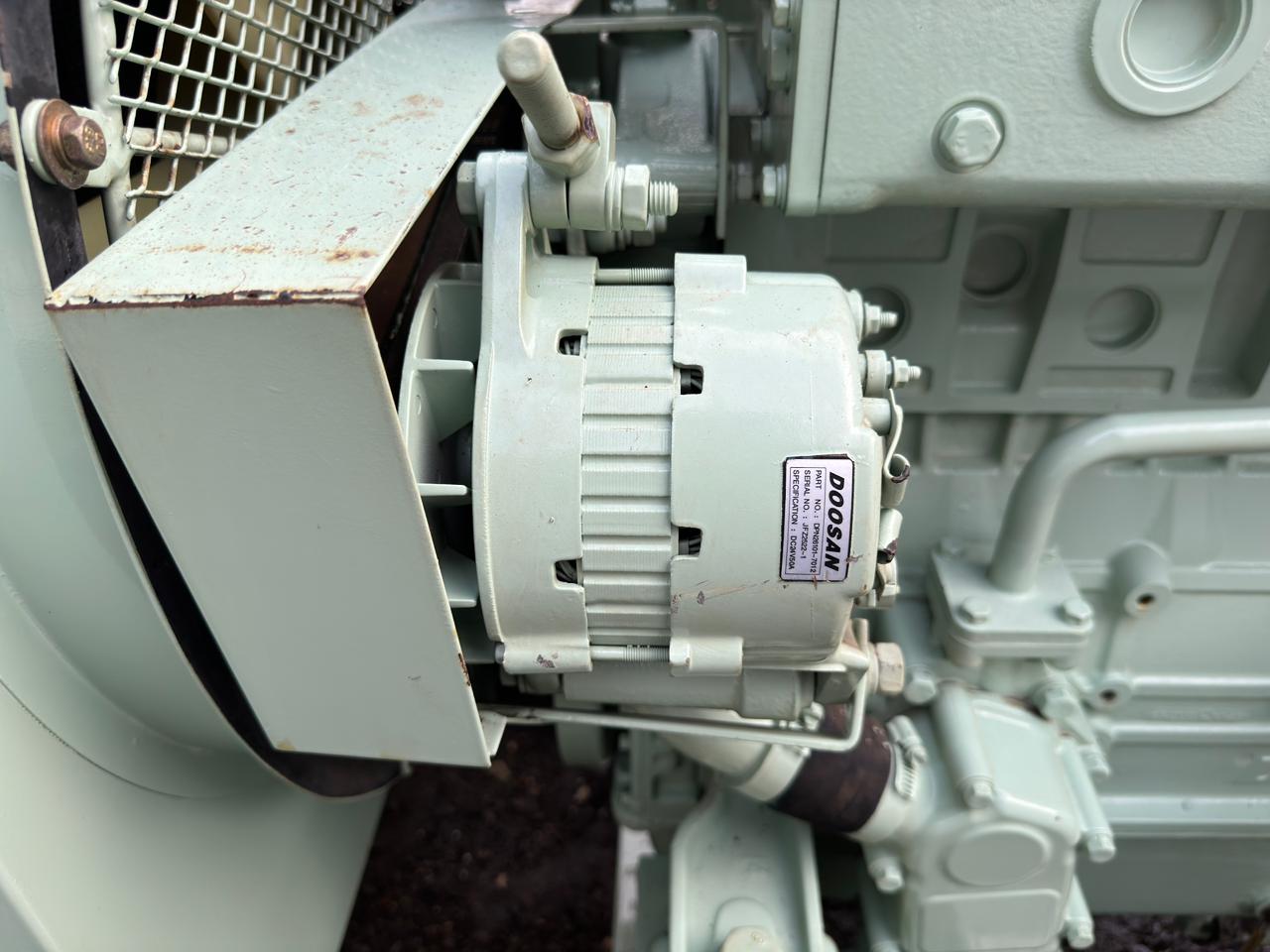

• Alternator: 24V, 50A
• Battery: 24V, 100Ah
• Cooling System: Indirect cooling using sea water with heat exchanger
• Lubricating Oil Capacity: Pan: max 23 liters (min 17), total engine: 25 liters
