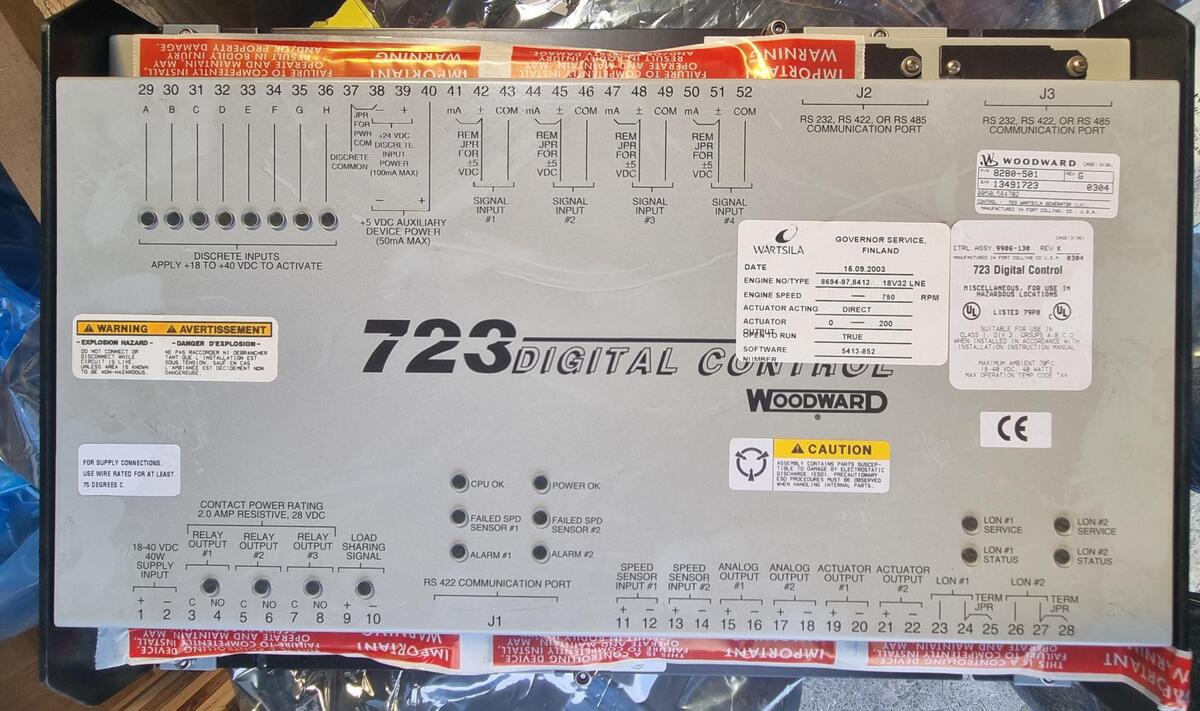

Woodward 723 Digital Control

WOODWARD 723 DIGITAL CONTROL

PRODUCT OVERVIEW

Original Equipment Manufacturer Application
Originally manufactured in Finland at the Wärtsilä facility, this unit represents a proven combination of Woodward's industry-leading governor technology with Wärtsilä's renowned engine platform.

Condition: Used, Fully Tested and Working
Location: Netherlands
Availability: Immediate

COMPLETE SPECIFICATIONS

Control Information

• Woodward      Part Number: 8280-501
• Revision: E
• Serial      Number: 13451723
• Model:      9906-130 (Low Voltage)
• Manufacturing      Date: September 16, 2003
• Manufacturing      Location: Wärtsilä, Finland
• Software      Version: 5413-852

Technical Specifications

Power Supply:

• Input      Voltage: 18-40 Vdc (24 Vdc nominal)
• Power      Consumption: 40W nominal
• Low      voltage model suitable for standard marine electrical systems

Inputs:

• 2x      Speed Sensor Inputs (magnetic pickup or proximity switch)
• 8x      Discrete Inputs (24 Vdc, 10 mA)
• 4x      Analog Inputs (±5 Vdc or 0-20 mA)
• 1x      Load Sharing Input (0-4.5 Vdc)

Outputs:

• 2x      Analog Outputs (0-1 mA or 4-20 mA)
• 2x      Actuator Outputs (0-200 mA) - Direct Acting Configuration
• 3x      Relay Contact Outputs (2.0A @ 28 Vdc)

Communication:

• RS-232,      RS-422, or RS-485 serial ports
• Modbus      ASCII/RTU protocol support
• LON      channels for LinkNet I/O nodes

CERTIFICATIONS & COMPLIANCE

Safety Certifications

• UL      Listed Type 4X - Suitable for outdoor/marine      environments
• CSA      Certified: Class I, Division 2, Groups A, B, C, D,      T4A

• Approved       for hazardous locations (explosive atmospheres)
• Certificate       Number: 2244634

• CE      Compliant:
• EMC       Directive 2004/108/EC
• Low       Voltage Directive 2006/95/EC

CONDITION & FEATURES

Physical Condition:

• Clean      housing with minimal wear
• All      terminal strips intact and labeled
• Warning      labels and nameplate clearly visible
• CE      marking present
• Mounting      holes undamaged

Functional Status - FULLY TESTED: This control has been comprehensively tested and verified to be in full working order.
