TriOs NICO Nitrate Optical Sensor

Ideal Applications

• Water & WasteWater Treatment
• Environmental and water quality monitoring
• Rivers, lakes, reservoirs, and coastal monitoring
• Nitrate (NO₃-N) measurement
• Long-term deployments with antifouling and wiper cleaning
• Academic Research, consulting, and municipal monitoring programs

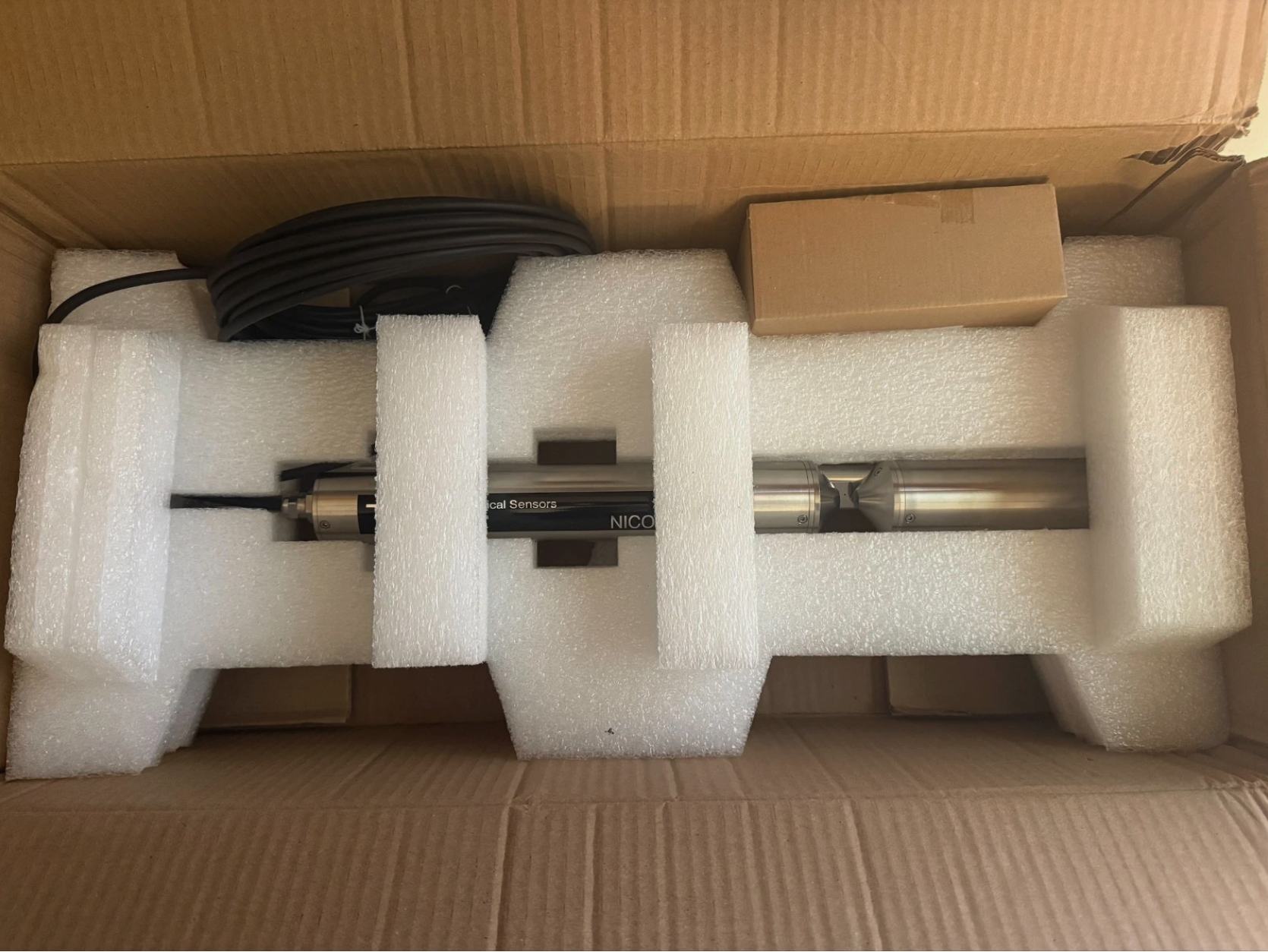

2 Boxes containing:

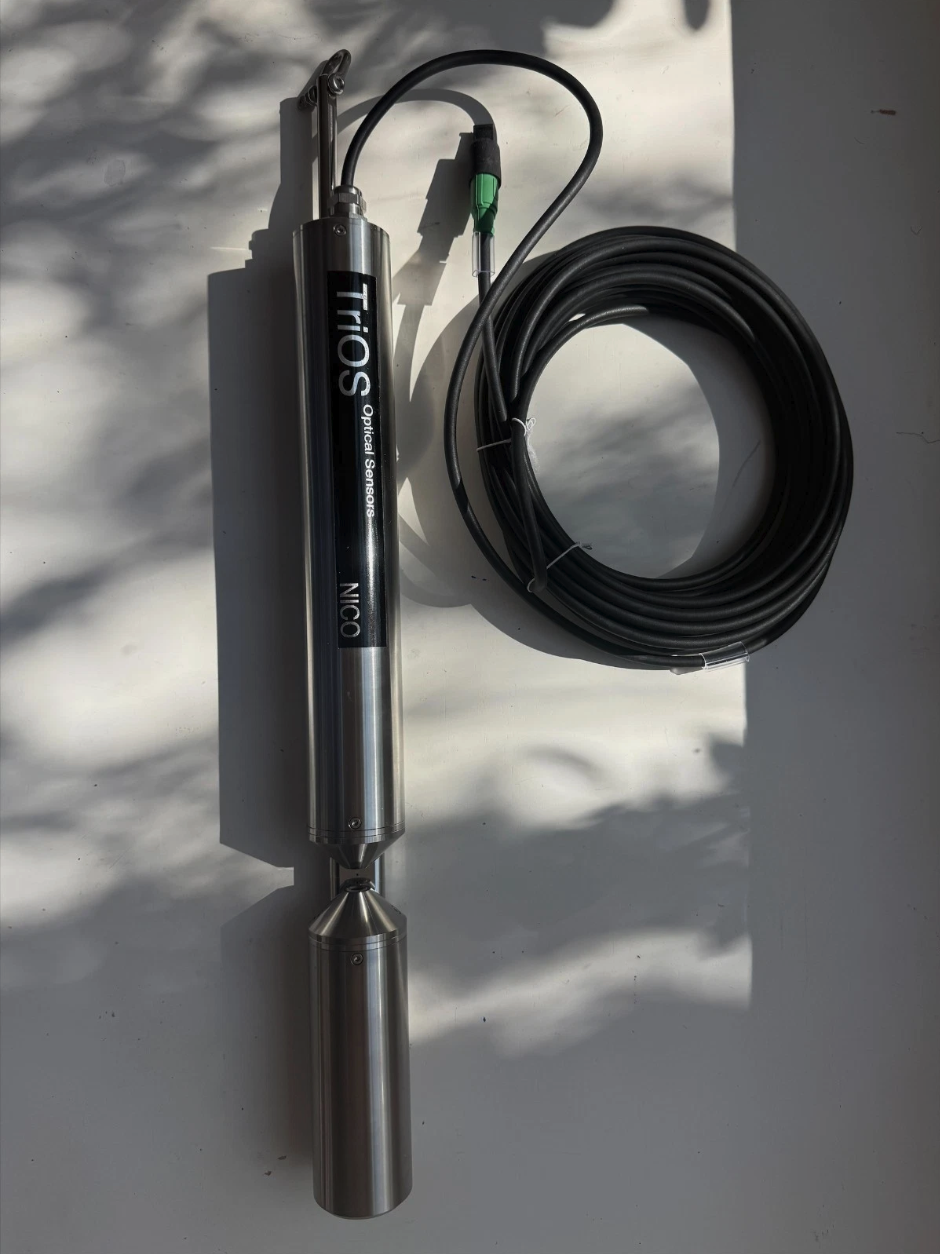

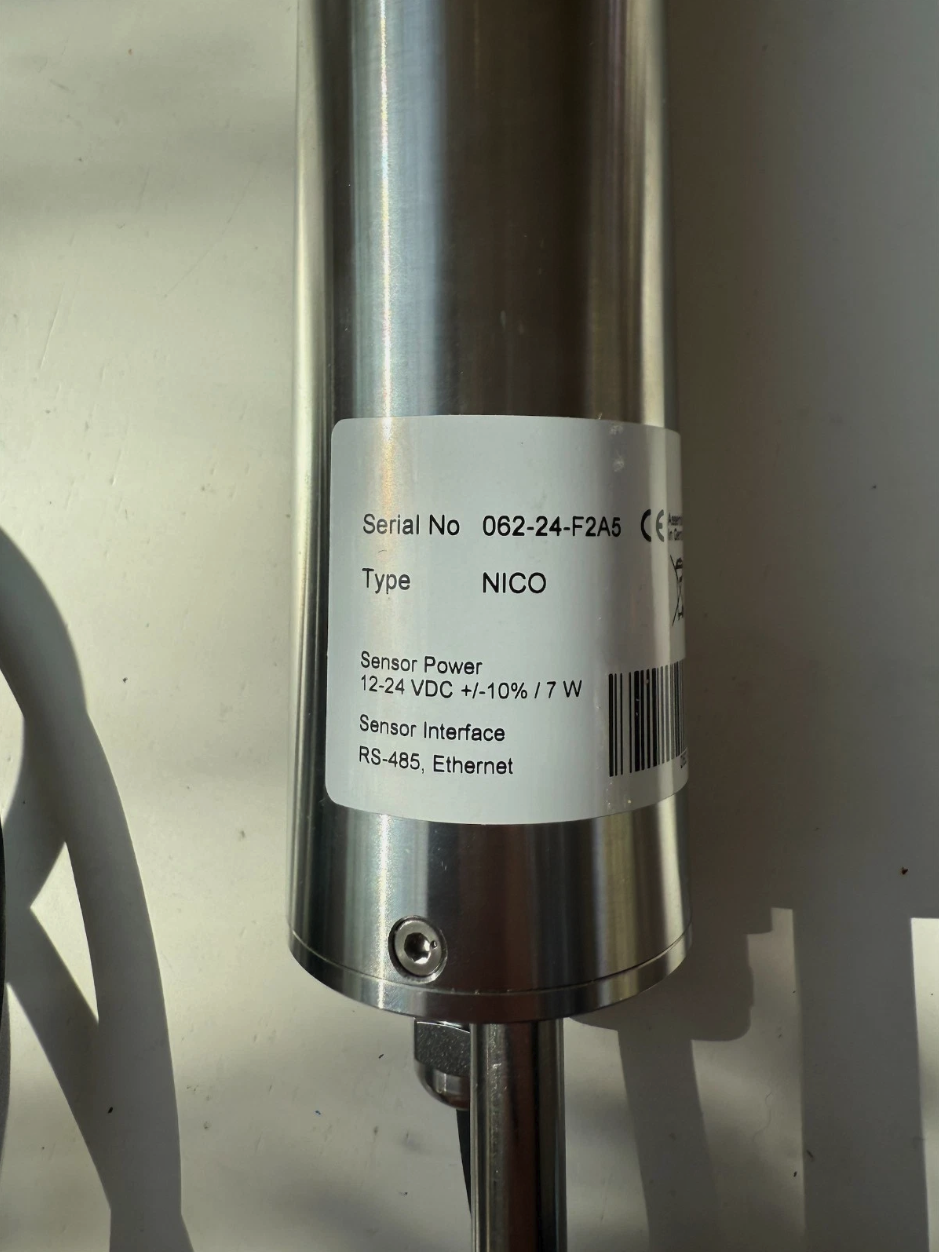

TriOS:NICO-10-VA-D-C TriOS NICO - spectral process sensor with innovative TriOS G2- web configuration interface for easy configuration via web browser

• included parameter: NO3-N
• wavelength range: 200..360nm/ 3 channels
• light source: Xenon flashlamp
• Interface: RS485, network protocol (Modbus,..) selectable via web browser
• internal calculation modul with 2GB memory card
• internal temperature sensor
• nano coated optical lenses for innovative bio-fouling protection

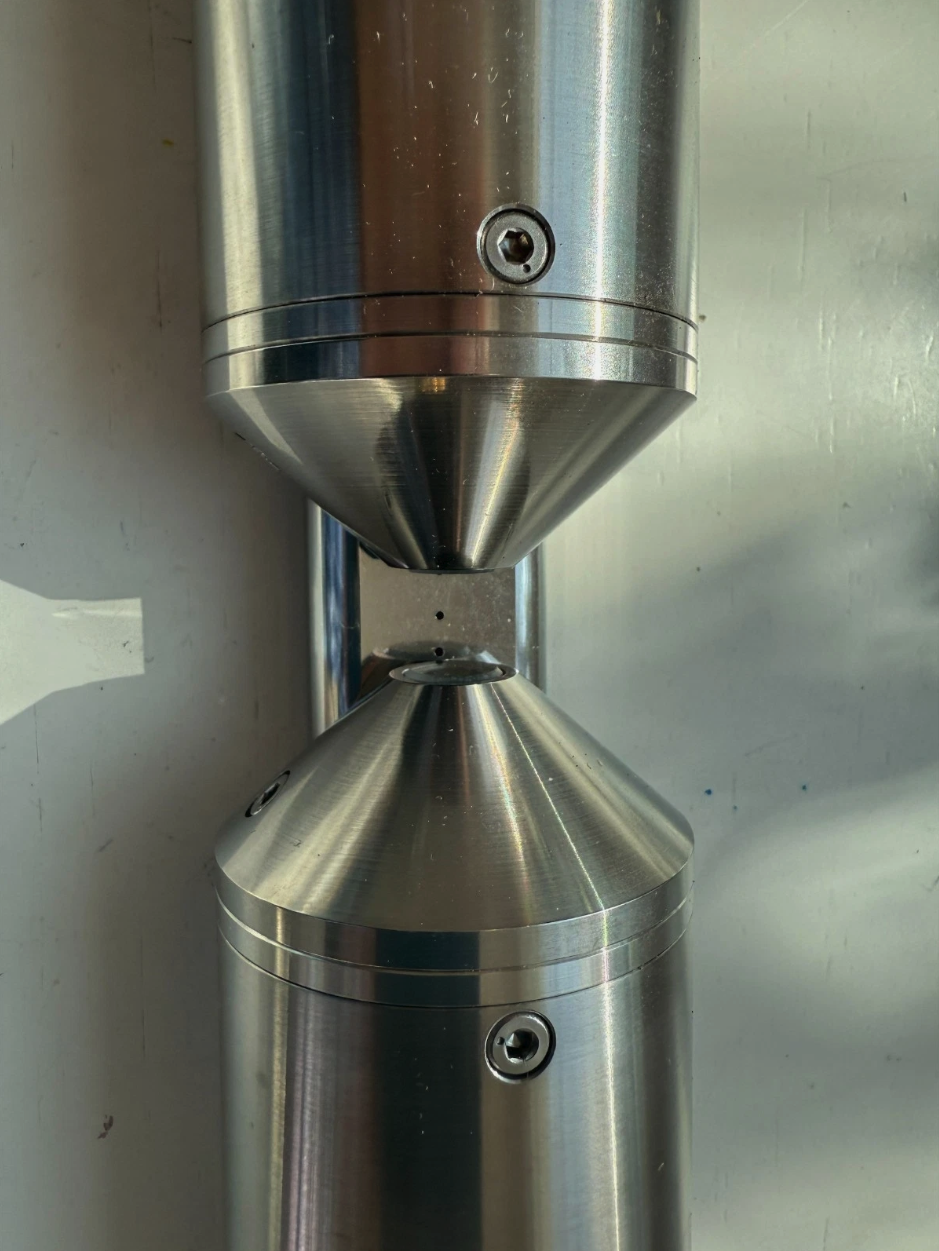

• optical pathlength: 10mm (changeable by additional adapter)
• housing: stainless steel (1.4571) with fitting for compressed air cleaning
• 10m fixed cable with M12 industrial connector, 8pin
• Incl.:
• airclean head
• Manual
• Calibration certificate

CL-48 Mounting Clamps

• 1 set for one fixing point, consisting of
• 2 pc. of mounting clamp for sensor with 48mm diameter
• size: 66 mm x 86mm with 2 bolts and washers
• color: black
• Two fixing points are recommended

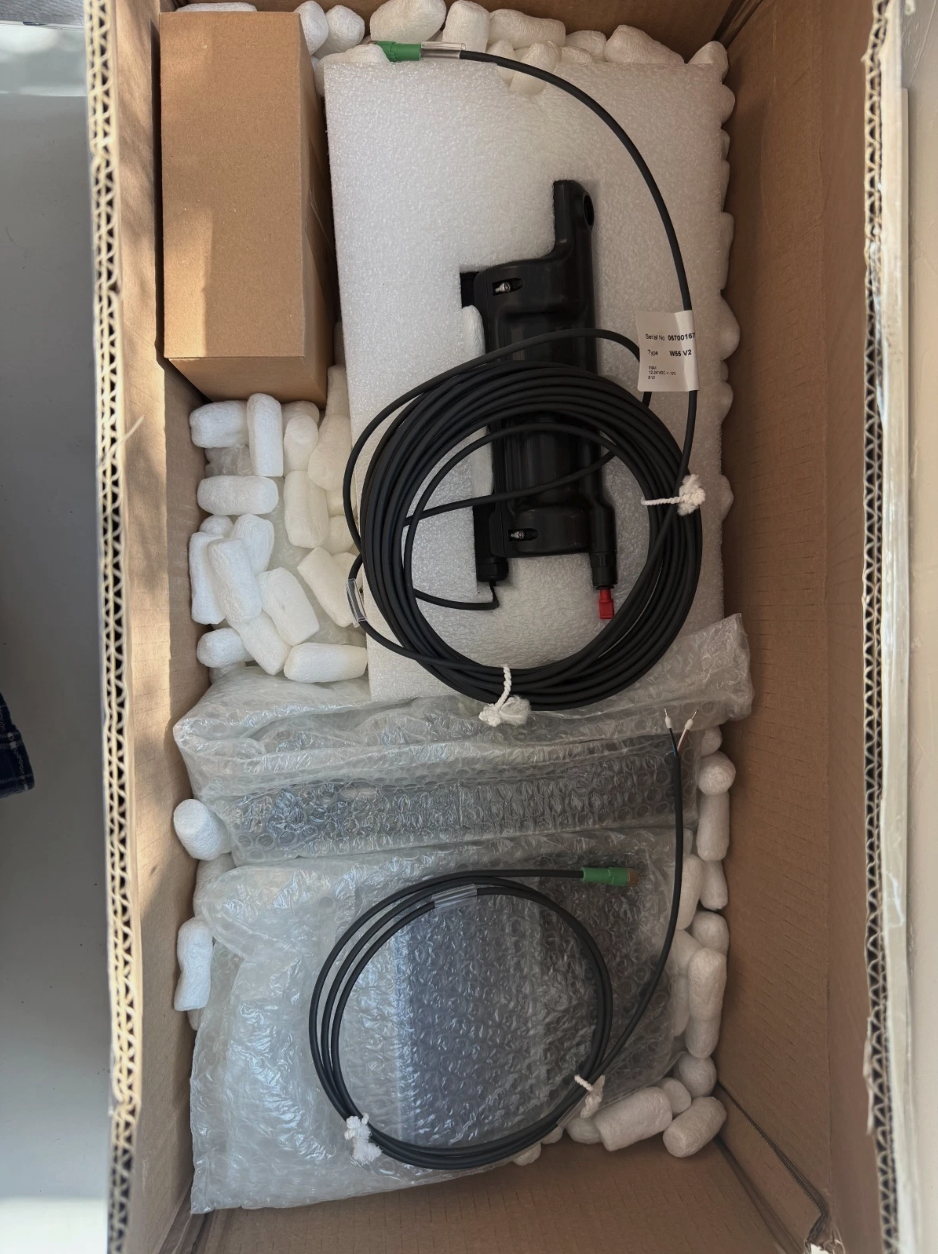

W55 TriOS Wiper

• Wiper cleaning for all TriOS photometer sensors with 10m fixed cable with M8 industrial 4-pole connector
• colour: black
• Power source: TriBox3 or TriBox mini or SDI-12 converter incl. - M8- Open-End cable 1,5m for connection to TriBoxes - magnet

TriOS:Wiper blade 10mm

• path V2
• Wiper blade 10mm path length (5 wiper blades)

TriOS SDI-12 Converter for G2-Sensors incl. Wiper ControlT

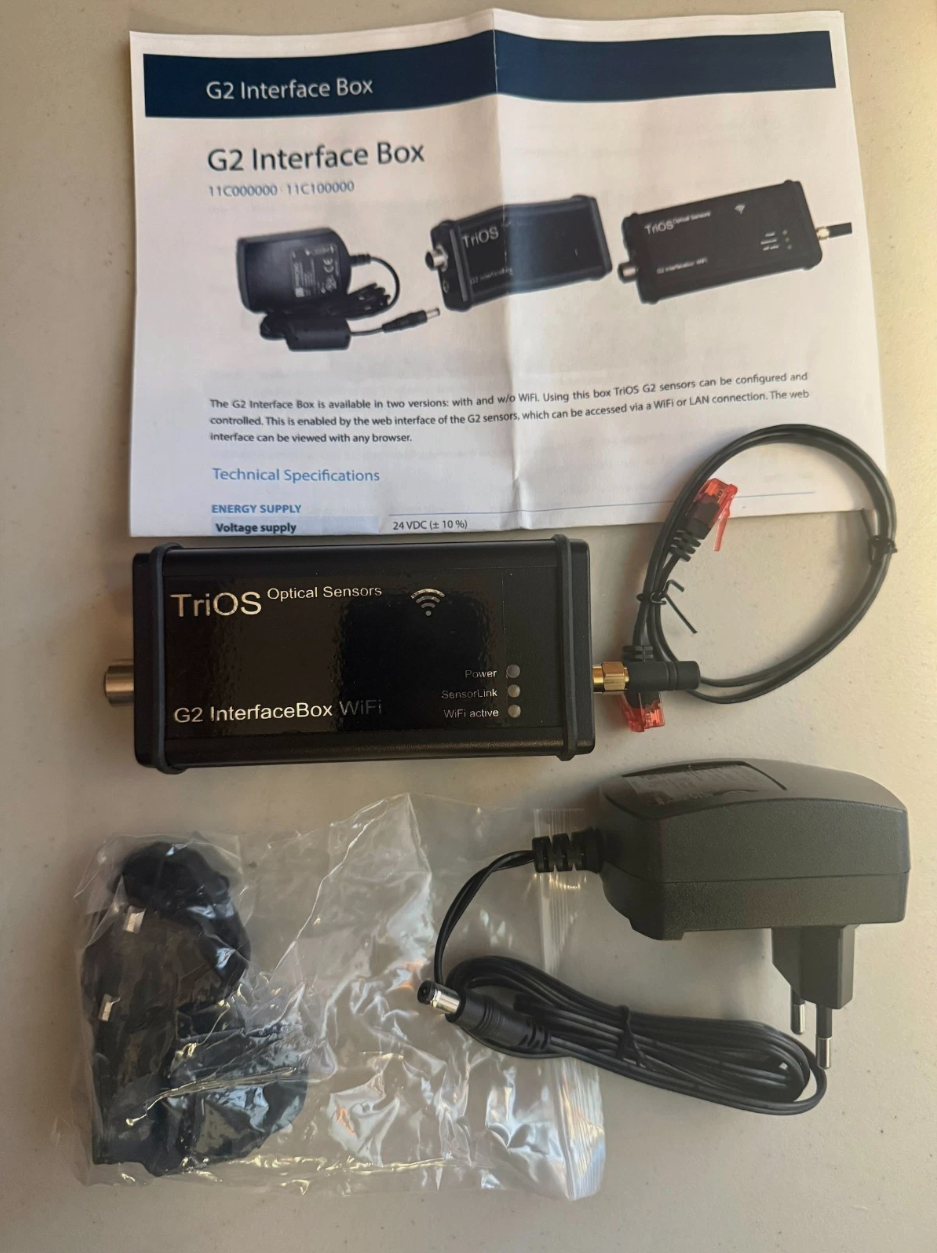

G2 InterfaceBox with WiFi G2 InterfaceBox with WiFi

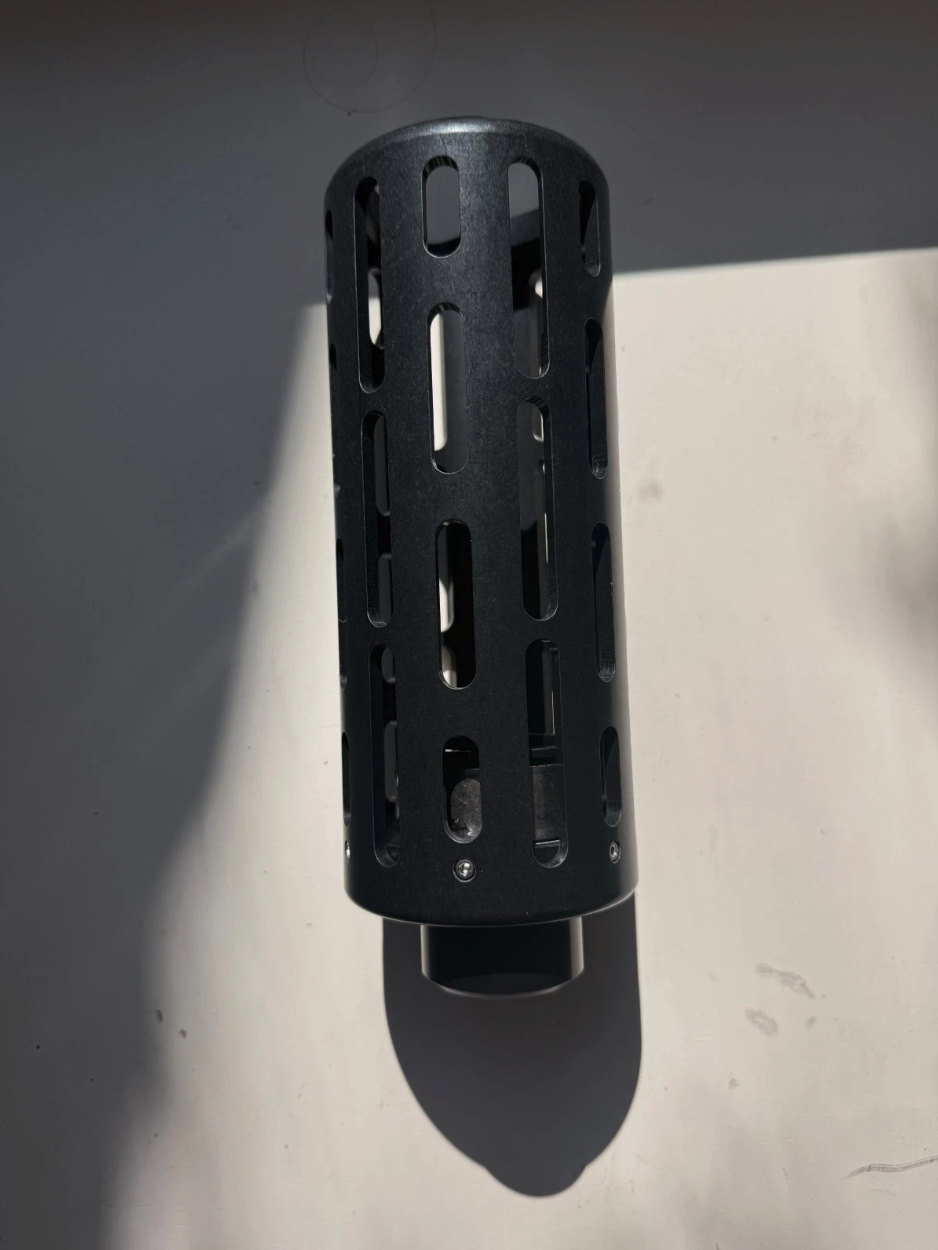

TriOS Protection Cage Wiper
