Fibre Optic Tow Winch

Compact electric winch for survey, towfish and small vessel operations. Comes with powered level wind, fibre optic slipring and fitted with 800m of 9.4mm armoured fibre/ductcore cable. Available immediately.

Details

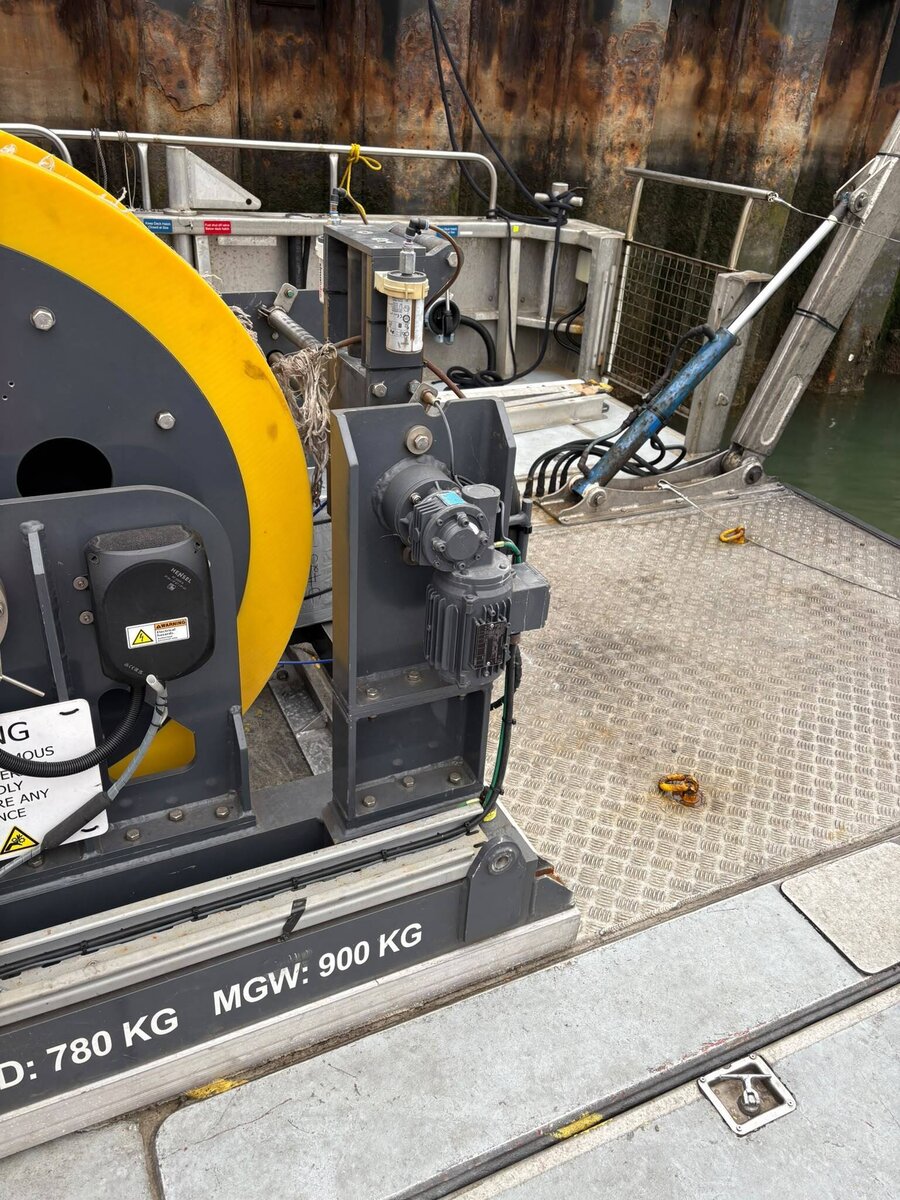

A lightweight aluminium towing winch for survey and towed sensor work. The compact footprint suits small boats, and it is equally at home on larger offshore vessels. A 5kW VFD, independent powered levelwind and combined electrical and single mode fibre slip ring make it a ready package for towfish and similar fibre optic tows.

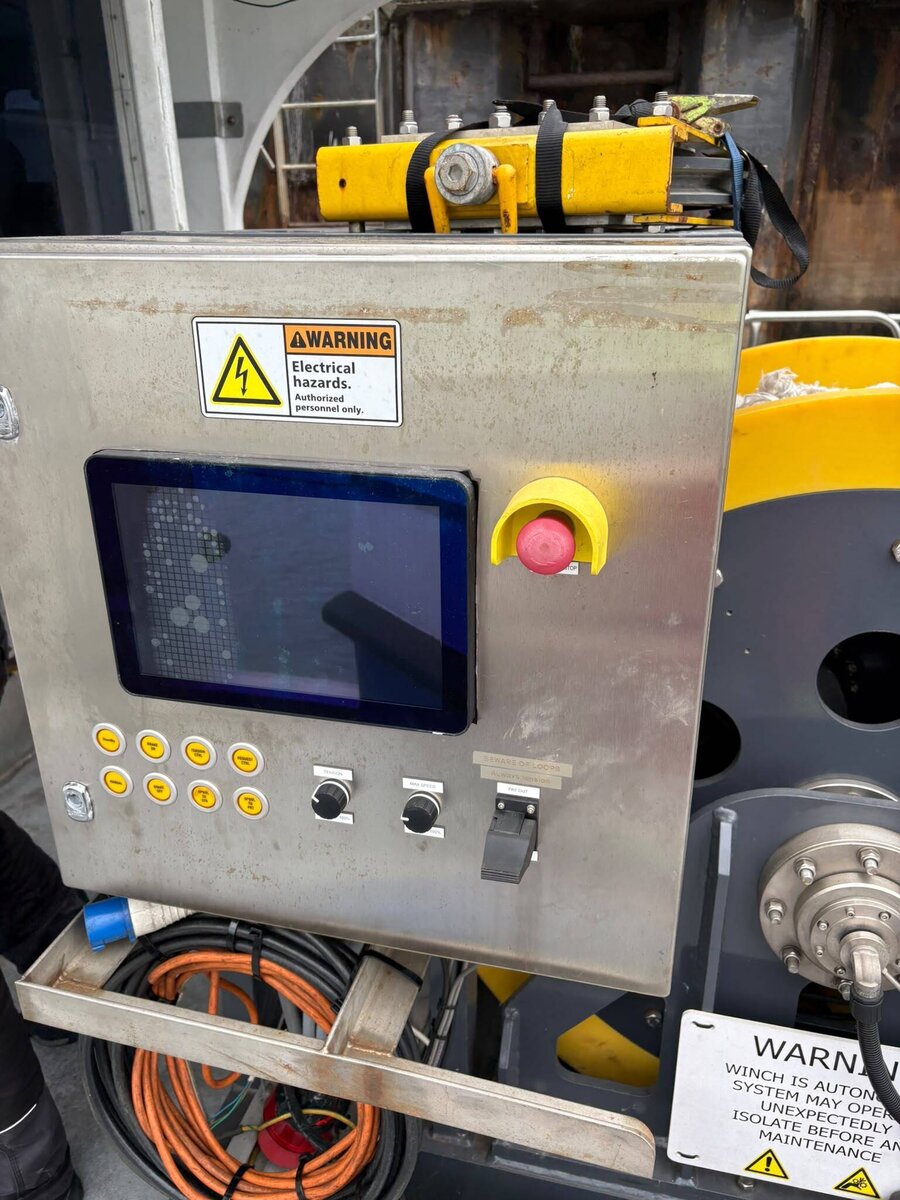

It comes fitted with 800m of armoured fibre/ductcore cable, including 200m of hairy fairing to reduce drag under tow. Control is by local panel, control room HMI or remote, and a sheave wheel is supplied. A 3D CAD model is available on request for deck layout planning.

Key specifications

SWL and line pull: 500kg at core
Line speed: 60m/min at core

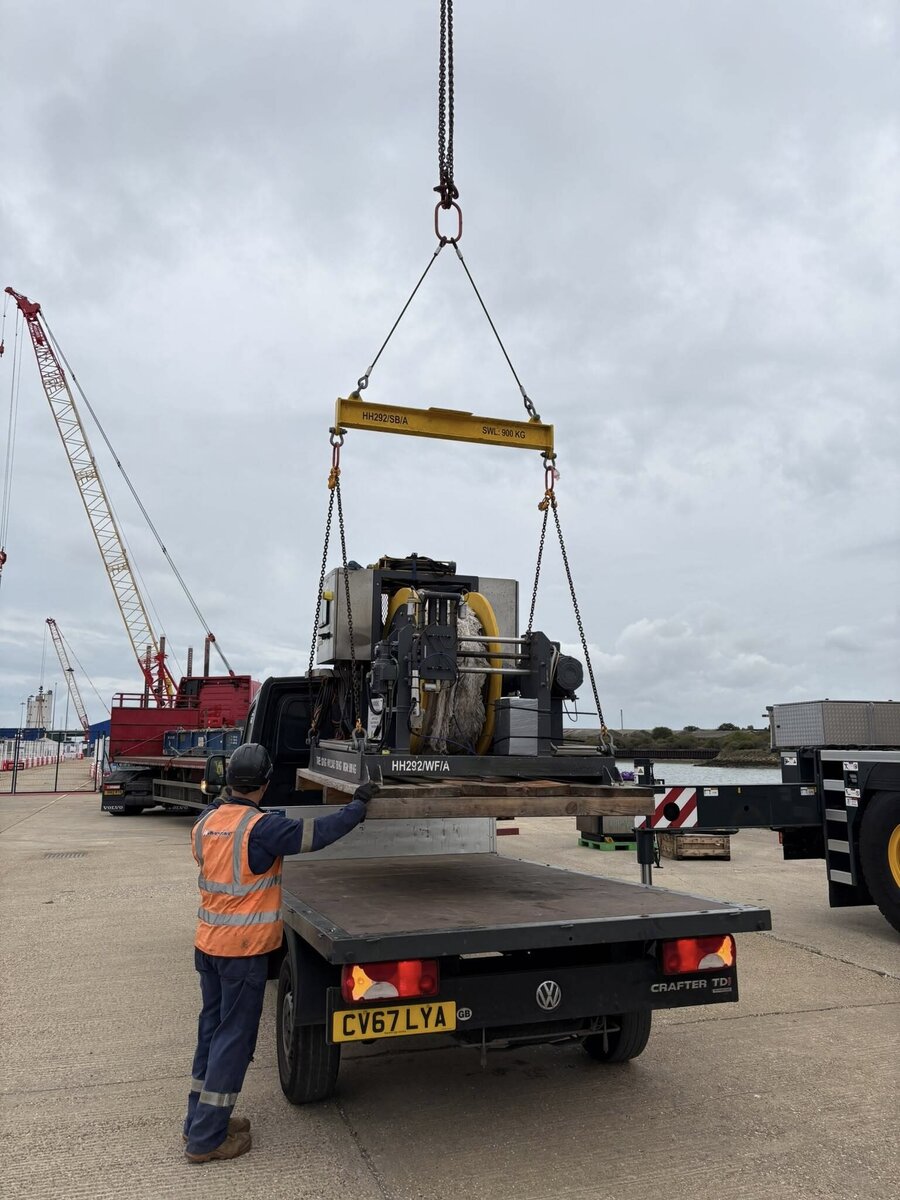

Weight: approx. 900kg
Footprint: 1,800 x 1,556mm, height 1,431mm

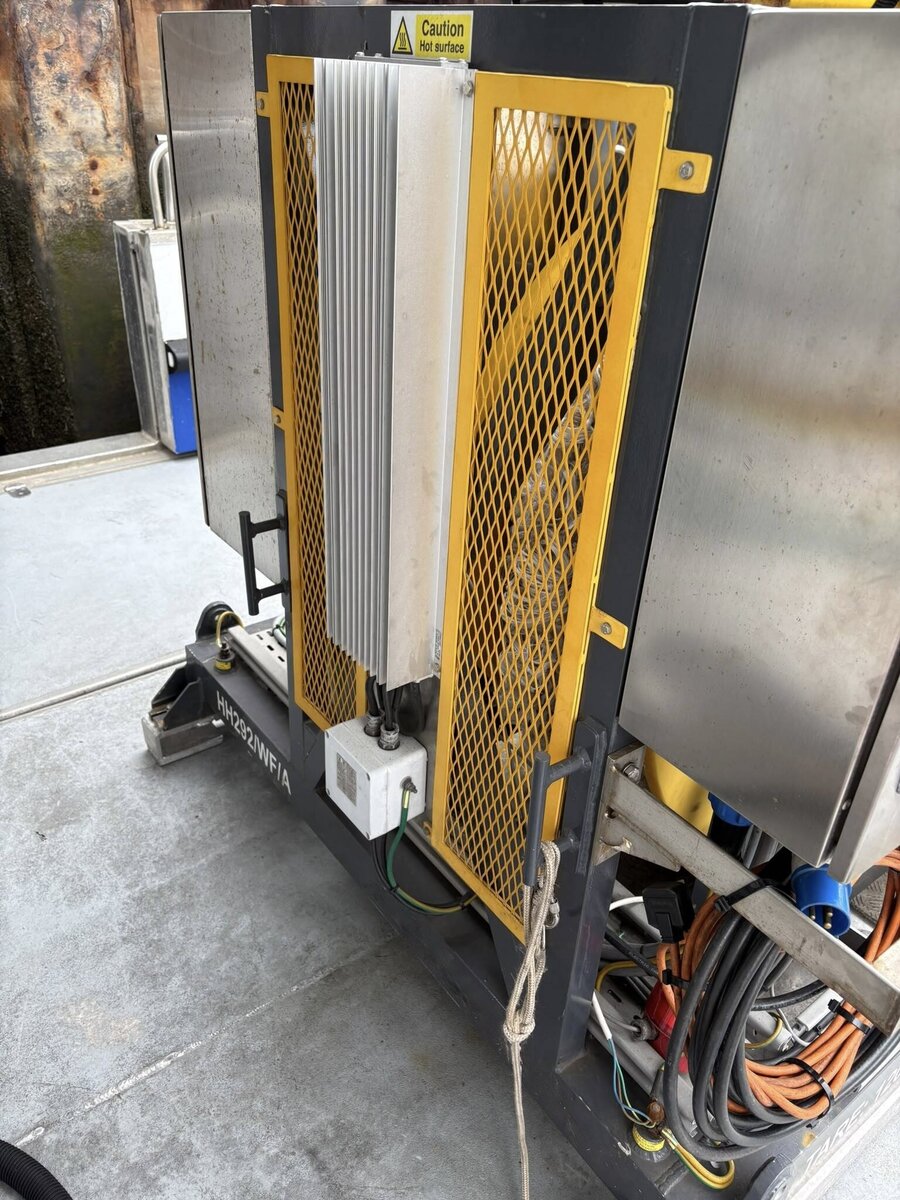

Drive: 5kW electric with VFD
Power: configured for 240V single phase, reconfigurable to 440 V 3 phase

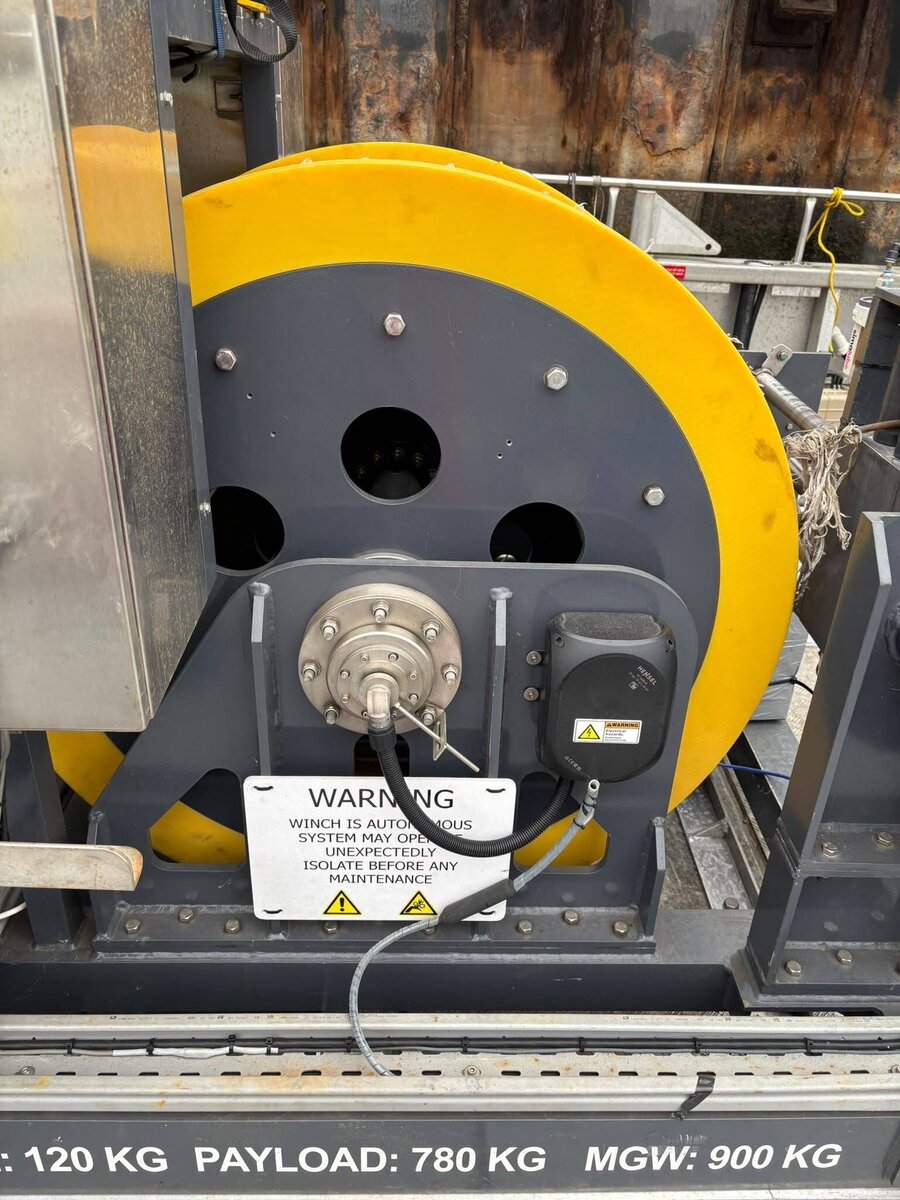

Drum capacity: 1,000m of 9.2mm or 100m of 40mm umbilical
Installed cable: 800m of 9.4mm armoured fibre/ductcore, 200m faired

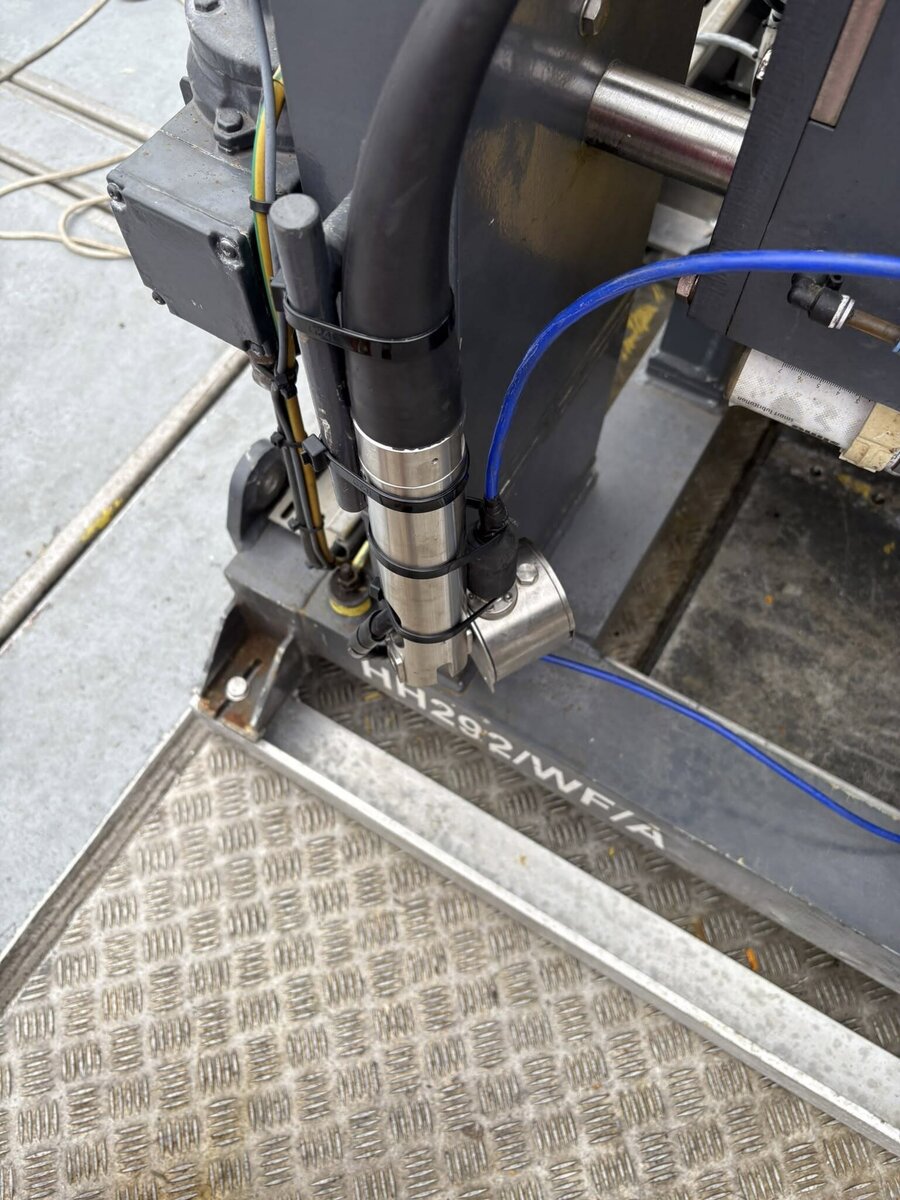

Slip ring: 4 electrical rings rated 5 A, 600 V, plus 1 single pass SM fibre rotary joint
