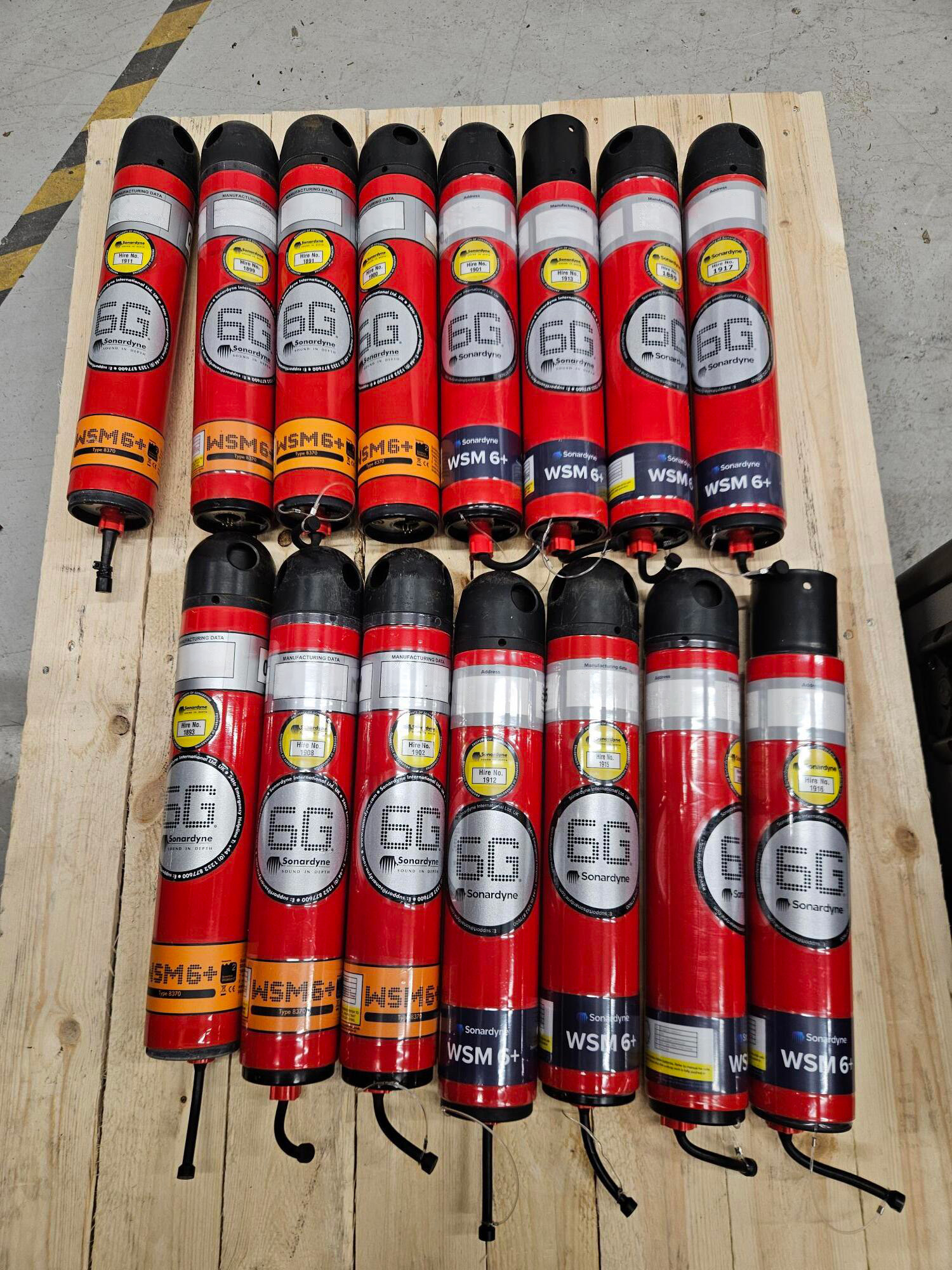

12x Sonardyne WSM 6+ Transponders

Twelve Sonardyne WSM 6+ transponders available for purchase as a single lot. All Type 8370-1111 in 1000m MF omni configuration.

Units are a mixture of ages. The majority are 2021, 2023 and 2024 builds. The oldest unit is a 2018 build and will be supplied with a new battery. Each unit ships in its own transport case with a test report.

Scope of Supply

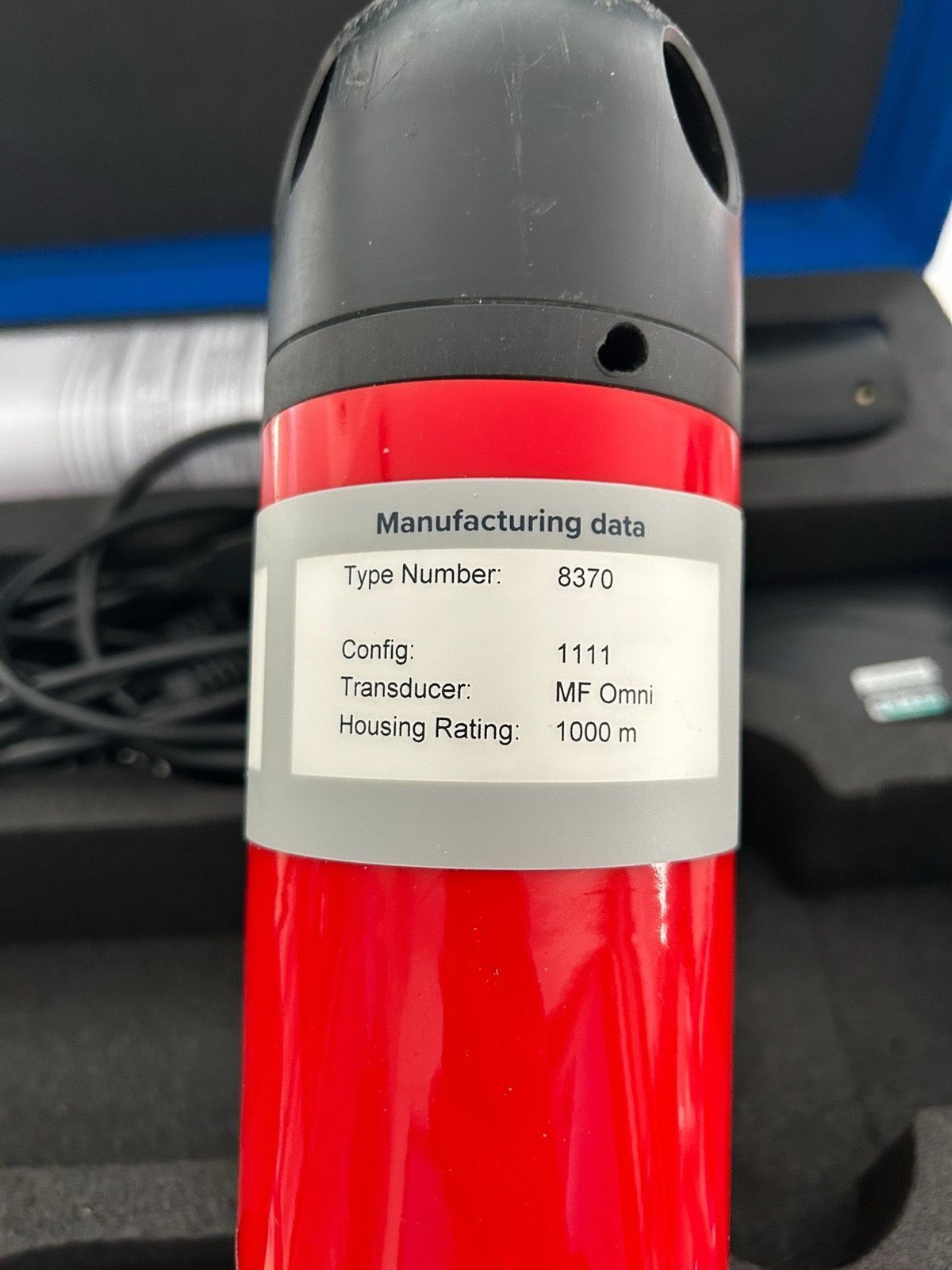

• 12x Sonardyne WSM 6+ transponders, Type 8370-1111, MF omni, 1000m rated

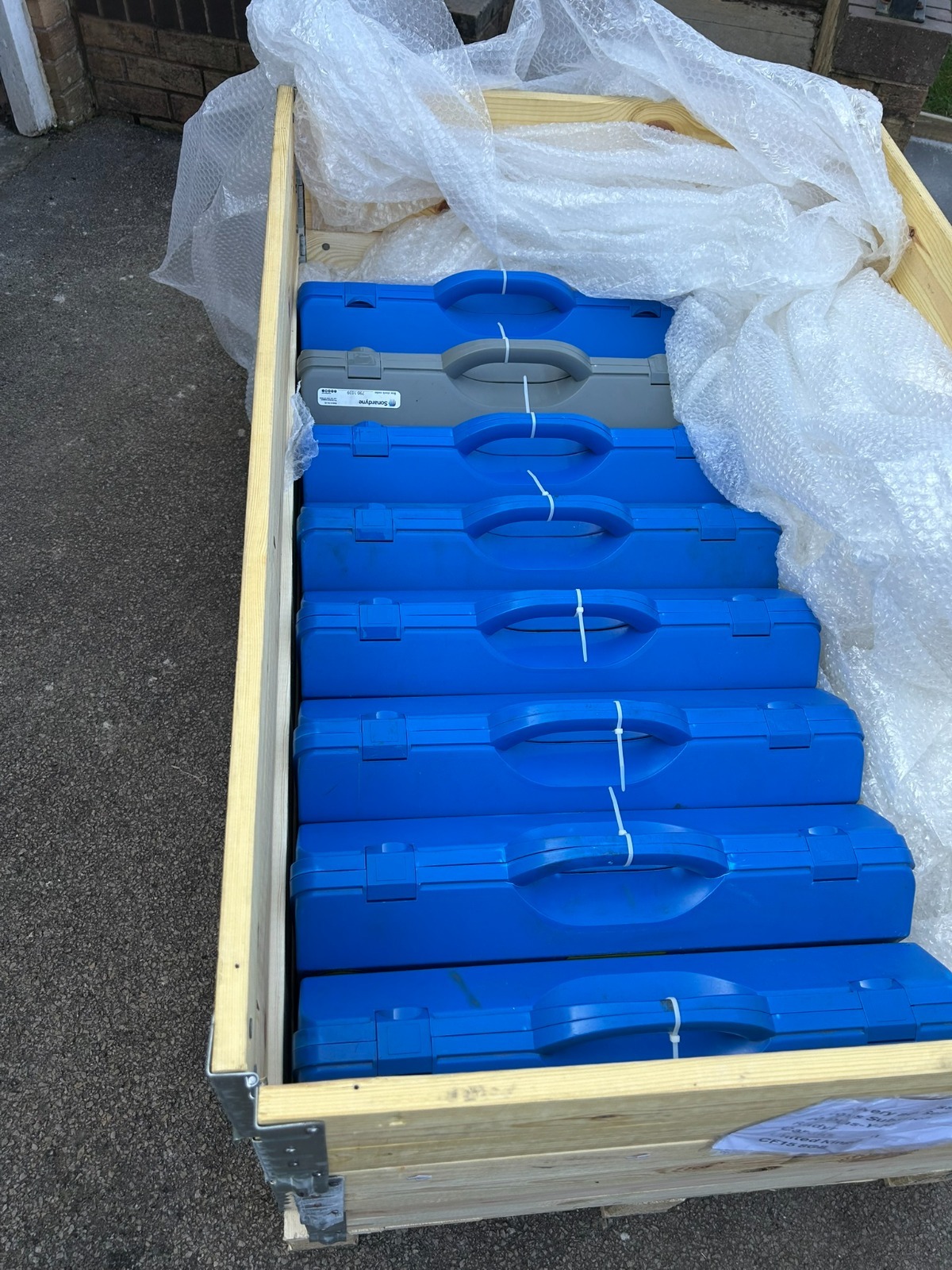

• Individual transport case per unit
• Test report per unit
• New battery fitted to the 2018 build prior to delivery

Key Specifications

• Depth rating: 1000m
• Transducer: MF omni, 20 to 34 kHz
• Compatibility: Sonardyne Wideband 2, Wideband 1 and HPR 400
• Battery: rechargeable NiMH. Over 6 days operating at 1 second update rate, over 35 days quiescent
• External power: 24V via ROV umbilical
• Dimensions: 420 x 75mm
• Weight: 3.2kg in air, 1.3kg in water
• Applications: ROV, TMS, towfish and crane wire tracking, USBL and LBL positioning


Contact us for further information.
