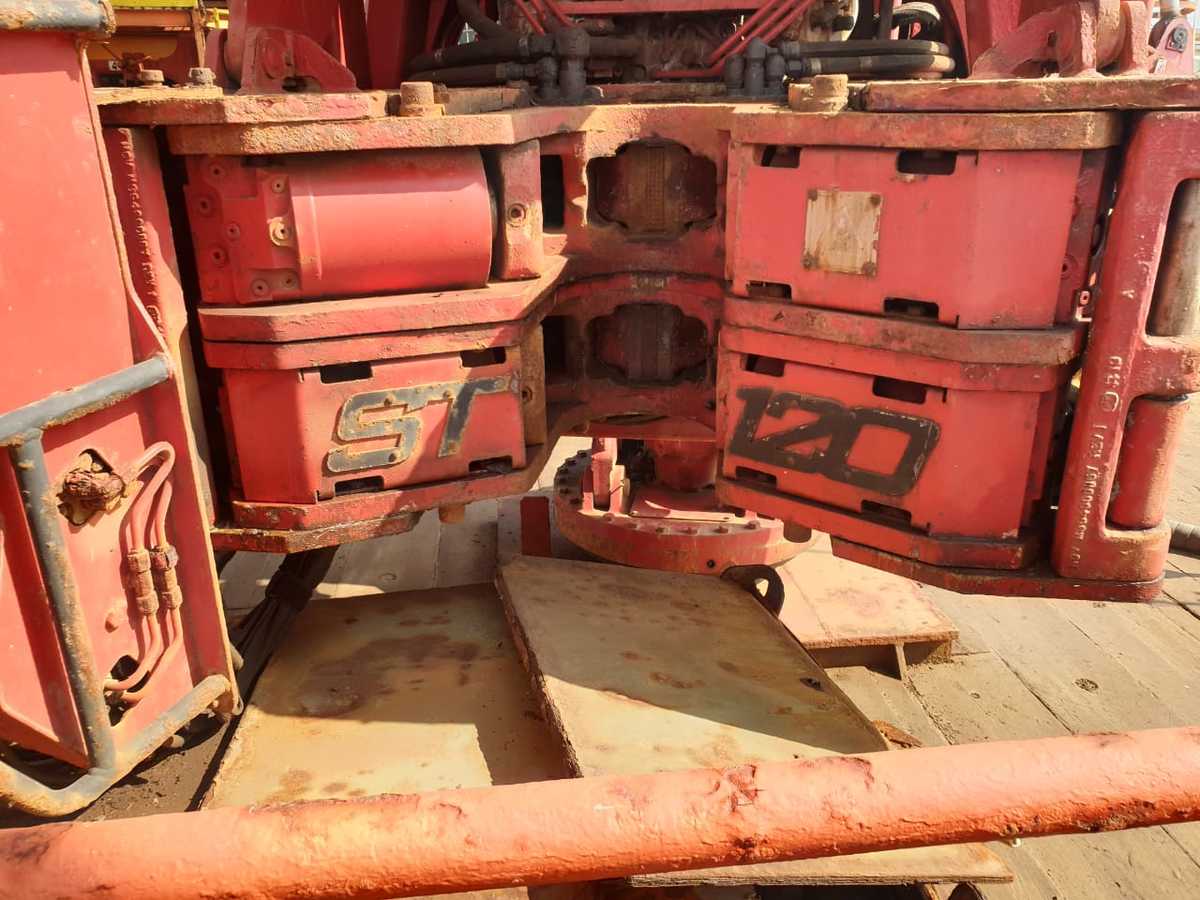

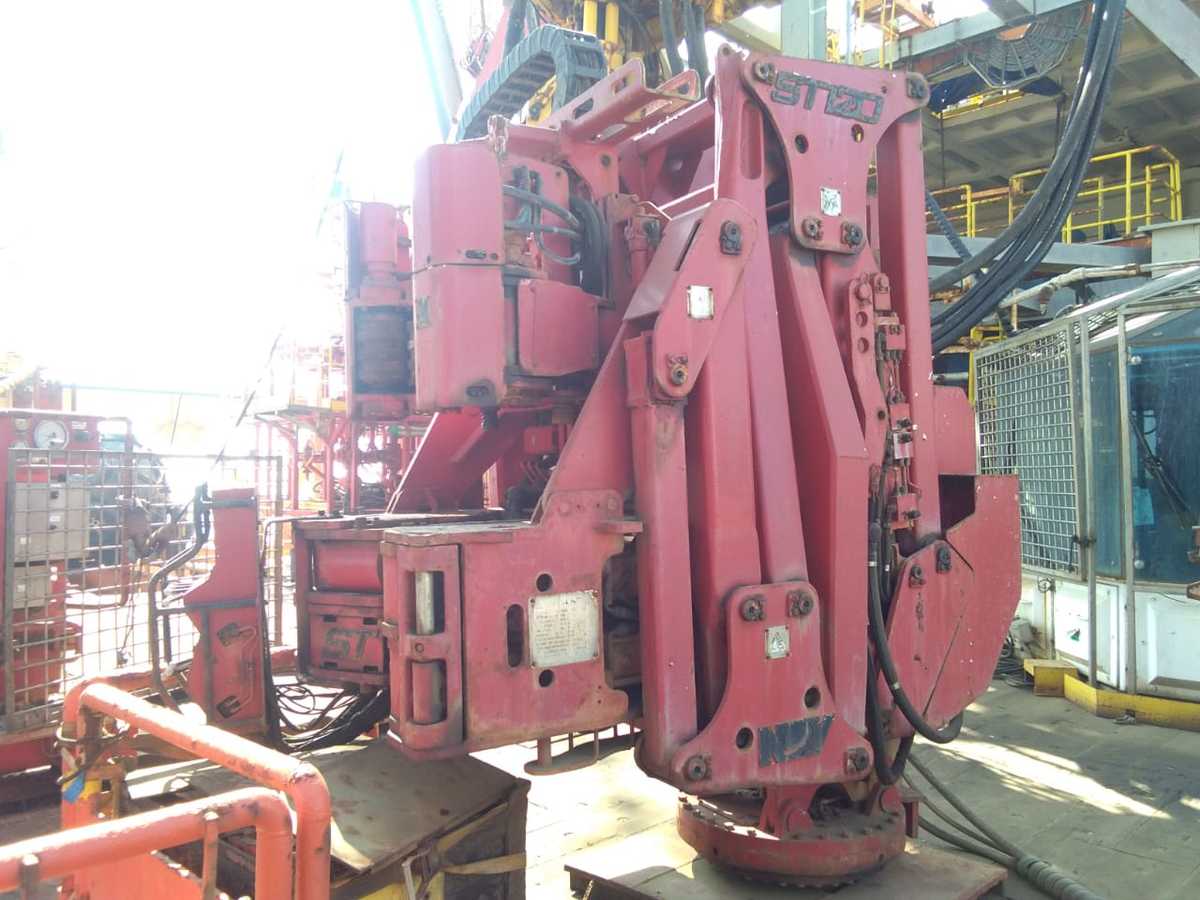

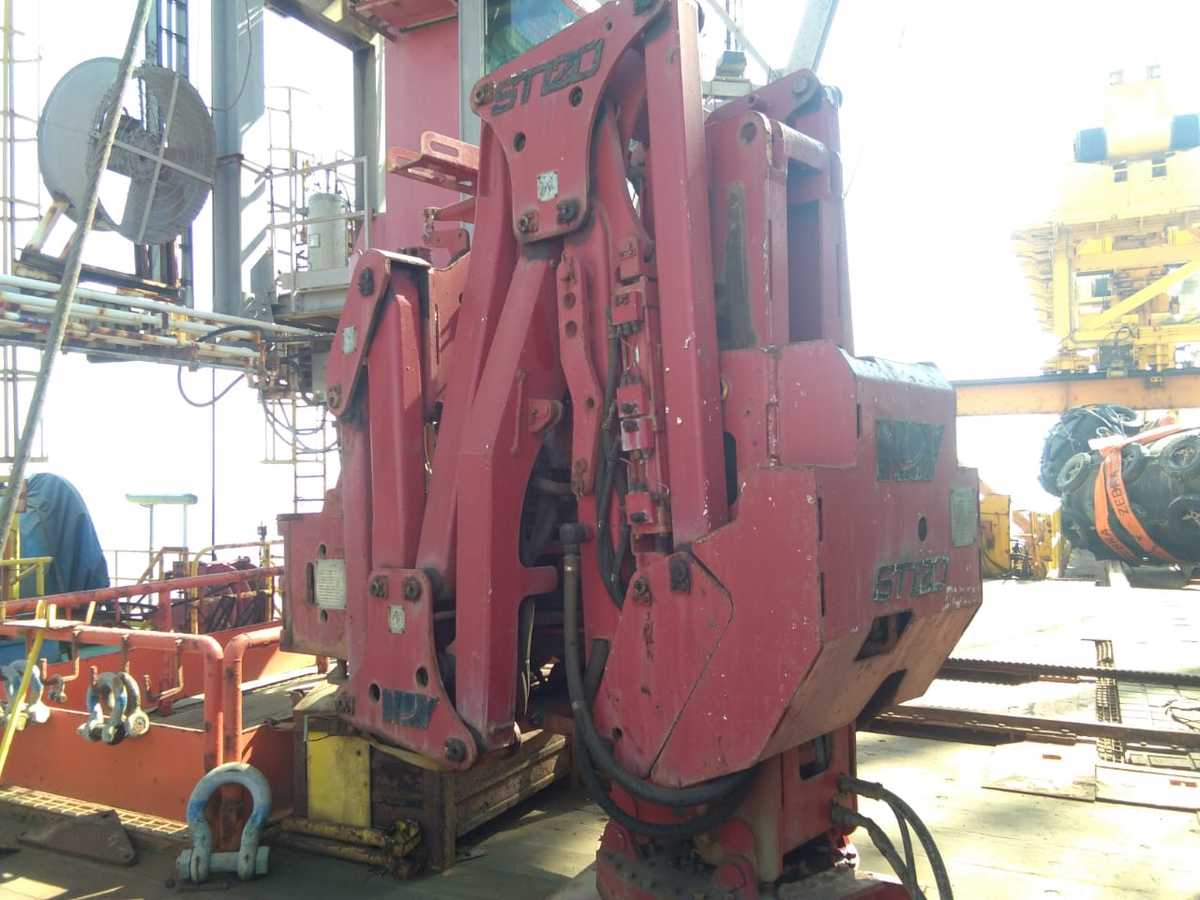

NOV ST 120 Iron Rough Neck

Key specifications:

• Weight: ST-120 Assembly
• 19,800 lbs (8981 kg) (installed weight)
• Hydraulic Requirements: 2,500 psi (172 bar) to 3,000 psi (207 bar) 45 GPM (170 LPM) Min; 65 GPM (245 LPM)
• Max Tubular Range: 3-7/8" to 10" OD (88.9 mm to 254 mm)
• Spin Speed: 80 RPM (nominal on 5" OD)
• Spin Torque: 3,000 Ib-ft (4,067 Nm)
• Maximum Make-Up Torque: 100,000 lb-ft (135,600 Nm)
• Maximum Break-Out Torque: 120,000 lb-ft (162,700 N-m)
• Connection Height: 33.10" to 75.10" (841 mm to 1,908 mm)
• Horizontal Travel: 12 ft (3.66 m)
• TW Vertical Travel: 42" (1 ,067 mm)
• SW Vertical Travel: 42" (1 ,067 mm)  System Control
