Electric winch 5 Te - 5500m

Electric winch with 5 Te Working Load Limit and 5500m capacity available for sale (Ref.: DS05)

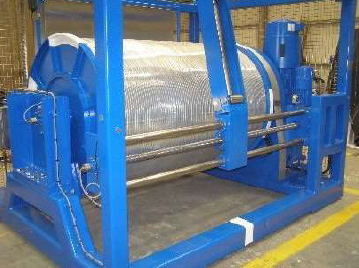

The winch barrel is mounted on an externally toothed slewing bearing. The bearing is driven by a pinon mounted on the output shaft of a SEW Electric Geared Motor fitted with a failsafe brake unit. The brake, being failsafe, always defaults to on should, for any reason, electrical supply is lost the brake will automatically be applied.

The Level wind electrically driven from the 0.75 kW SEW Electric Gearmotor. The level wind is PLC controlled, is automatic with a manual override. The Level wind can be adjusted to accept a variety of cable diameters if required.

Speed control is continuously variable in increments of less than 0.05 m/s via the proportional joystick and a HMI displays Line Speed, Line Load, Line Out and Line In.
