Hydraulic Winch 3.5 Te WLL 40m

Hydraulic Winch with 1.7 Te working load limit and 40m capacity available for sale (Ref.: DS16)

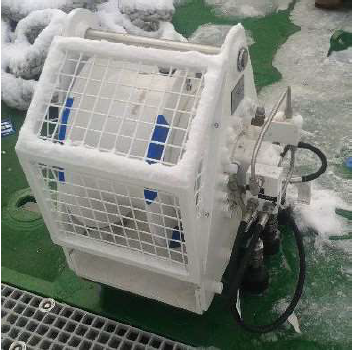

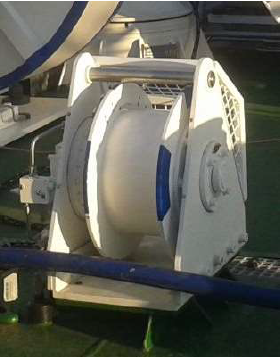

The Winch barrel is mounted directly between two side supports. One side support houses the Gearbox and Hydraulic Motor and the other houses the bearing assembly. The hydraulic motor drives the gearbox assembly and thus turn the winch barrel in either direction. The gear box is fitted with a hydraulically actuated spring applied failsafe brake unit and an open loop orbital low speed hydraulic motor. The hydraulic signal to the failsafe brake is achieved via a brake shuttle valve within the load control valve.

Dynamic braking is achieved via a load control valve mounted directly onto the hydraulic motor. Static braking is via the failsafe brake unit fitted in between the hydraulic motor.

The winch is controlled via a 3 position, spring return to centre directional control valve, fitted with a motor spool.
