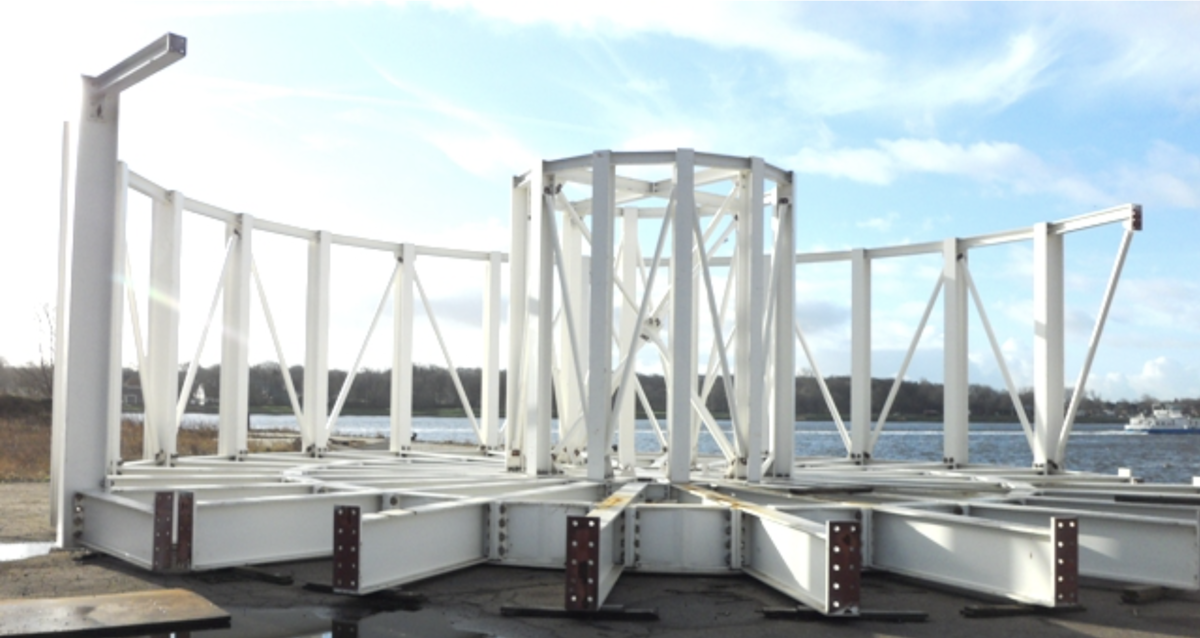

2000te Carousel System

Technical specification

• Maximum load capacity - 2000 Te
• Total width of foundation - 16,000 mm
• Total length of foundation - 19,000 mm
• Outer diameter of basket - External -  19,000 mm
• Outer diameter of basket - Internal - 18,000 mm
• Inner diameter of basket (core diameter) -  5,000 mm
• Total height of cable carousel - 6,950 mm
• Internal net height of basket - 5,000 mm
• Total height of basket -  5,700 mm
• Volume of basket -   1175 cubic meter
• Total weight of carousel - 275 Te
• Basket weight without floor plates: 133 Te
• Basket weight with floor plates:  150 Te
• Foundation weight -  125 Te
• Maximum speed carousel - 0,5 RPM
• Maximum deck load - 7.5 Te/m2
• Acceleration, fully loaded - 0 to 0,5 RPM in 6 seconds
• Emergency stop, fully loaded - 0,5 to 0 RPM in 4 seconds
• Normal stop, fully loaded - 0,5 to 0 RPM in 6 seconds
