880te Carousel (Rental only)

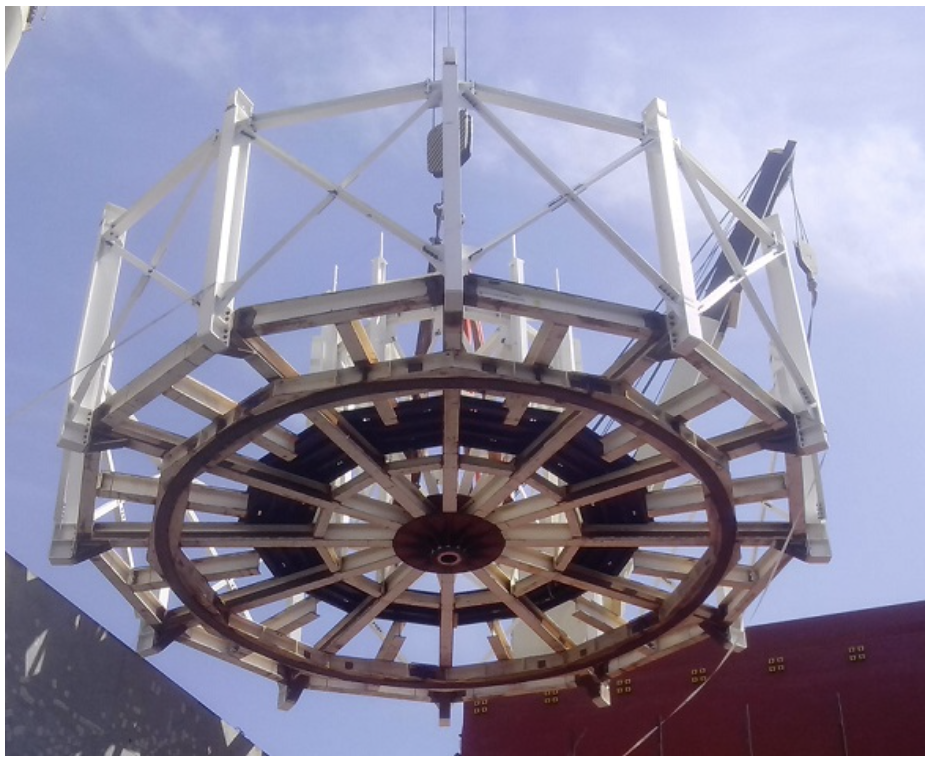

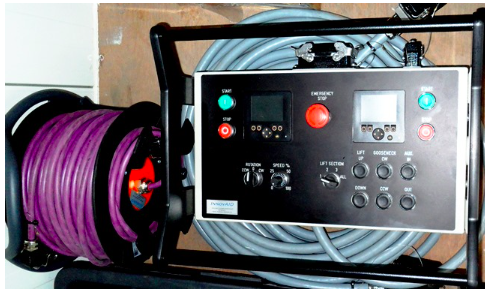

The modular design enables the Carousel components to be easily transported by road, or containerised, to ship to any Port of mobilisation. Once assembled, the carousel comprises the Carousel Basket, the Foundation, HPUs and portable control unit (RCU).

Technical specification

• Maximum load capacity 880 Te
• Total width of foundation - 16,000 mm
• Total length of foundation - 19,000 mm
• Total height of foundation – under-rollers up - 780 mm
• Outer diameter of basket - external - 16,040 mm
• Outer diameter of basket - internal - 15,000 mm
• Inner diameter of basket (core diameter) - 6,000 mm
• Total height of basket/foundation - 5,640 mm excluding safety rail (+ 1005mm)
• Internal net height of basket - 5,500 mm
• External height of basket -6,000 mm
• Volume of basket - 561 m3
• Total weight of carousel/Foundation - 220Te (with floor plates)
• Total weight basket - 100Te (without floor plates)
• Total weight basket - 115Te (with floor plates)
• Total weight foundation (including drives) - 105Te
• Maximum speed carousel - 0,5 RPM
• Maximum deck load - 8.0 Te/m2
• Acceleration, fully loaded - 0 to 0,5 RPM in 6 seconds
• Emergency stop, fully loaded - 0,5 to 0 RPM in 4 seconds
• Normal stop, fully loaded -0,5 to 0 RPM in 6 seconds
