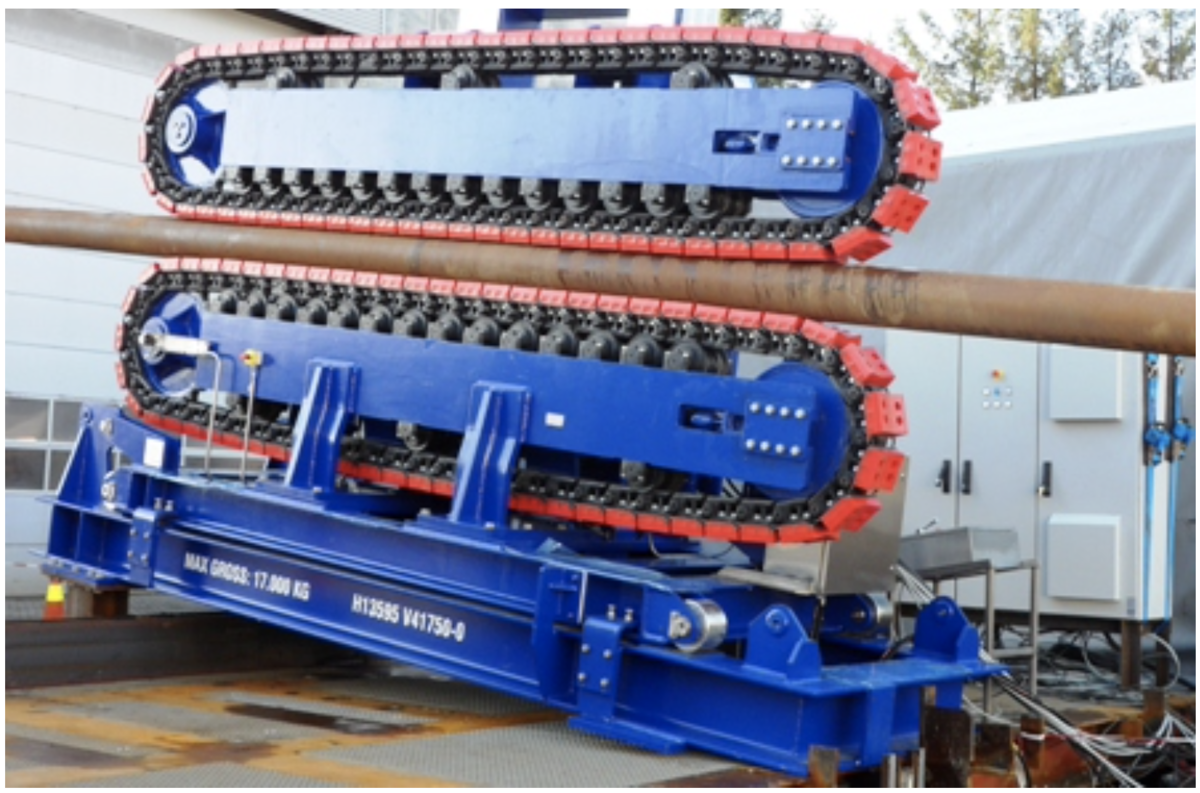

15T SH Tracked Tensioner System (Rental only)

15te SH Tracked Tensioner System available for rent. See below for further details or contact owner for price and availability.

Details

15Te Tensioner system comprising tensioner, remote control unit (RCU) and braking resistor. Siemens PLC control system consists of one portable RCU (with 9" colour touch screen monitor) which can be located at a operator position and one emergency operation console located within a stainless steel box mounted on the tensioner.

Tensioner Dimensions:

  • Length: 5,000 mm
  • Width: 2,500 mm
  • Height: 3,300 mm

HPU Dimensions:

  • Length: 1,100mm
  • Width: 930mm
  • Height: 1.025mm

Combined weight – Tensioner/HPU: 15,000kg

Power Consumption: 90 Amp approximately

  • Caterpillar Track performance @ 50Hz
  • Maximum pull – laying: 150kN
  • Nominal Speed: 740m/h
  • Maximum Push: 120kN
Show more
Show less
MAIN DETAILS
Manufacturer
tbc/unknown
Rental Price
Contact seller
LISTING ID
2626
Year built
Not known
Location
Europe
