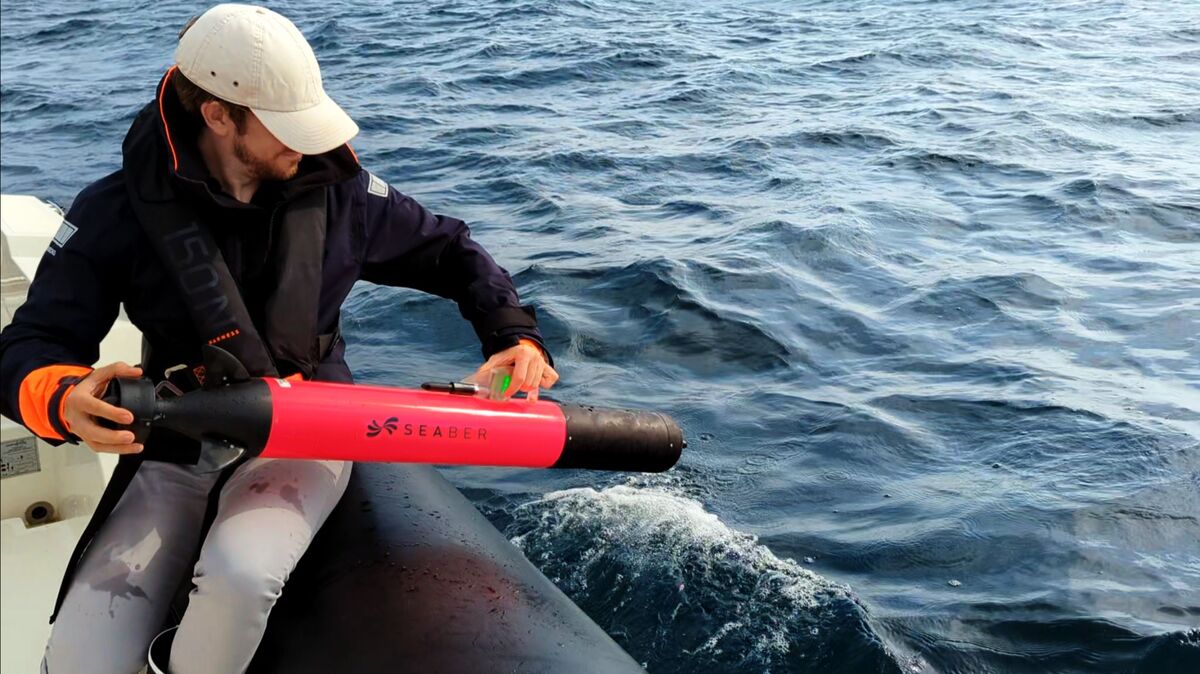

Yuco-PAM Micro AUV

Technical features

• Length: 98cm
• Diameter: 12cm
• Weight in air: 9kg
• Depth rating: 300m
• Speed: 2 to 6 knots
• Endurance: 10 hours at 2.5 knots
• Accurate navigation: Better than +2%

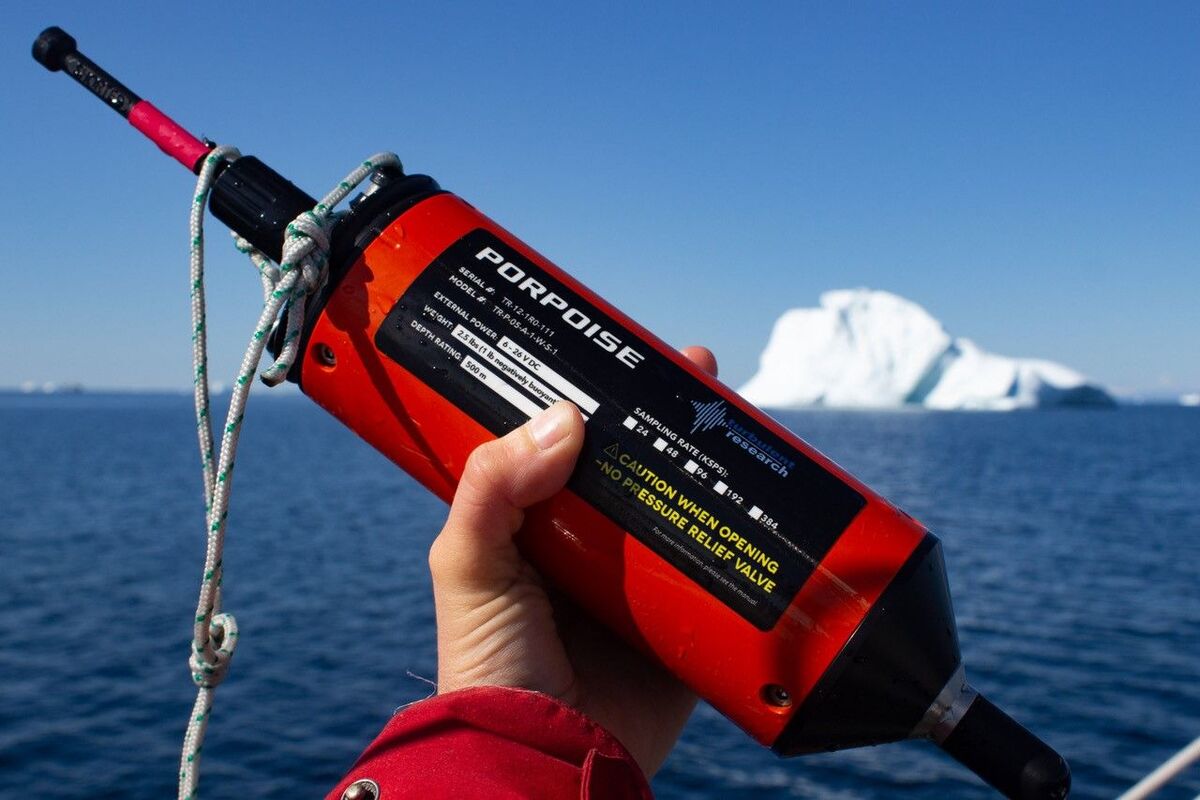

Payload Section

• Analogue bandwidth: 160 kHz
• ADC: 24 Bits Stigma Delta
• Dynamic Range: 110dB (full bandwidth)
• Configurable Gain: 0dB – 45 dBz
• Maximum Sensivity: -165dB Re 1 V/µPaz
• Sampling rates supported: 2 kHz yo 384 kHzA
• Up to 4 TB internal removable SD card storage
• Configurable recording, schedule and duty cycling

Contact us for further information on pricing
