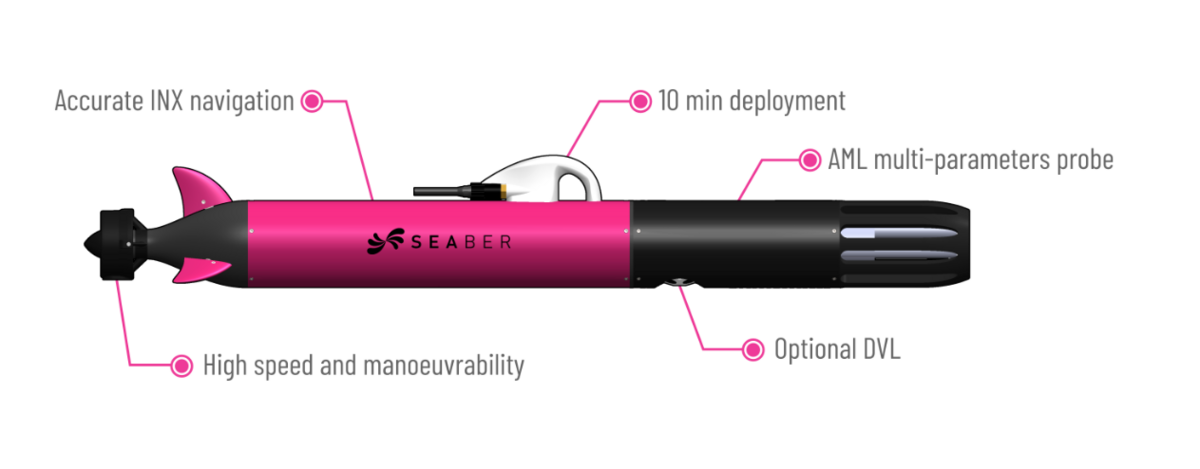

Yuco-Physico Micro AUV

Technical features

• Length 123 cm
• Body Diameter 12 cm
• Weight in air 9.5 kg
• Depth rating 300 m
• Speed 3 to 6 knots
• Endurance 10 hours @ 3 knots and 6 hours @4 knots (for Li-Ion battery)
• Navigation accuracy ±2%of distance travelled when using the DVL
• Energy
  • Li-Ion : rechargeable 600Wh/14.8V
  • NiMH : rechargeable 200Wh/14.4V
• Battery Charger 100 to 240 VAC 50 to 60 Hz
• Programming interface: SEAPLAN software by SEABER
• Surface Communication
  • LoRa UHF point-to-point communication with SEACOMM device (see below)
  • For YUCO status messages and orders
  • 868Mhz frequency range (depends on region)
  • PYCOM LOPY4 chip with available regions: AS923, AU915, EU868, US915, IN865
  • TX Power: 25mW
• Available Accessories
  • Rugged transport case
  • Spare parts and tools in waterproof bag

Sensors

• AML- RT3
  • Data storage 30 GB
  • Maximum sample data: 20 Hz
  • Temperature: -20 °C to +45 °C
• [Optional] DVL
  • Model: Waterlinked A50
  • Frequency: 1 MHz
  • Beam angle: 22.5 degrees
  • Ping rate: 4-26 Hz
  • Max altitude: 50 meters
  • Max velocity: 3.75 m/s
  • Velocity resolution: 0.1 mm/s

Contact us for further information on pricing
