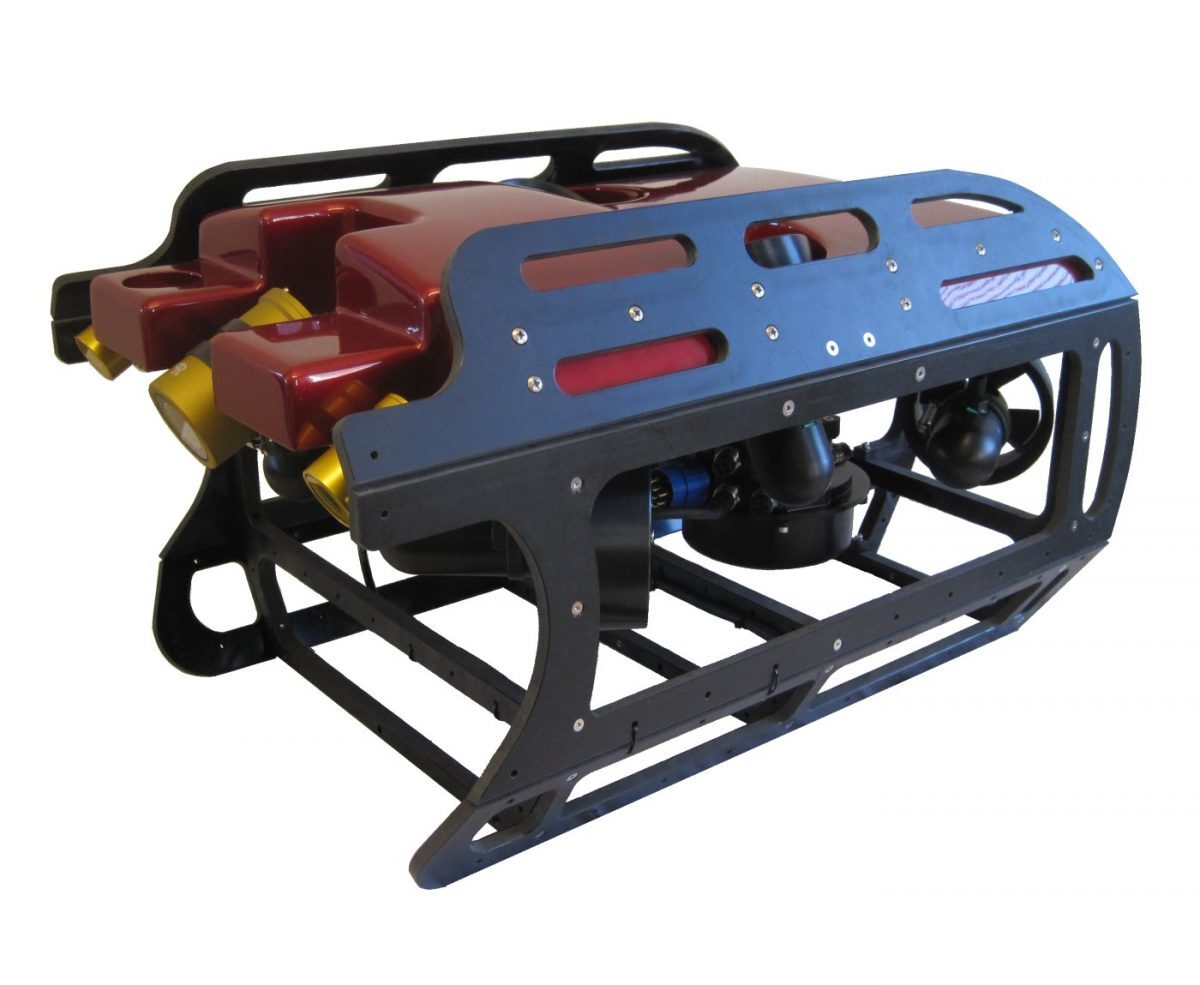

Aegir 25 ROV

Technical specifications:

Survey connections on vehicle

  For communication between the ROV and the surface the setup looks as follows:

•  Up to 4x video channels, switchable (Single or dual real-time transmission)
•  1 x DATA

 Tooling power supplies

 The standard connections for external power include:

•  1 x 24VDC, up to 250W
•  1 x ±24VDC, 3A

 Camera system and tilt

  The ROV comes with 1/2 camera connections as standard:

• Analog video (PAL/NTSC) + 24VDC

 Lighting System

  The vehicle comes equipped with 2/3 LED lights, each individually controllable. Data per  light:

• 3500lumen light output
• 24VDC, 40W
• Fully dimmable, digital control with presets for all lights.

 Sensors

The vehicle is as standard equipped with:

• 1 x depth sensor with over-depth warning
• 1 x IMU with 3D magnetometer, accelerometer and gyro
• Water ingress alarms
• Earth leakage alarms

Sonar and Transponder

 The vehicle can be fitted with any sonar and transponder. To keep the precise control char acteristics of the ROV please consult with Ocean Robotics to get units that match the rest  of the systems layout.

Auto Functions

Standard (all can be disabled by user under operation):

• Depth
• Heading

Optional:

• Altitude (requires altimeter or DVL)
• AutoPilot / Station-keep

 Contact us for more information on pricing about spare parts package list and other accessories.
