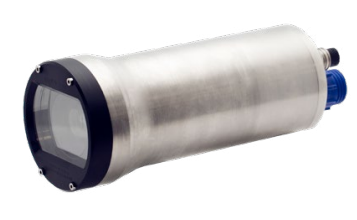

Rayfin Benthic 6000m Camera

Technical specifications

• Sensors & Lenses
  • Sensor: Exmor RS™ CMOS 12-bit
  • Image Size: 12.3MP - 4056 x 3040
  • Max. Exposure Setting: Shutter Speed 1/65000, ISO 3200
  • Lens: 4.52mm f/2.0
  • Zoom: 12.3MP sensor zoom (5x optical equivalent)
  • Focus Range: 15cm to infinity
• Internal  Recording  System
  • Image Format: JPEG and RAW
  • Still Rate: 3Hz (JPEG) / 0.5Hz (RAW)
  • Recording Resolution: HD and 4K UHD
  • Recording Capacity: 40hr (HD) / 10.5hr (4K) - 512GB *Optional 1TB
  • Recording Format: H.265 and H.264 - MP4
  • Media Transfer: Real-time over Ethernet
  • Clock Sources: Internal and NTP Server
  • Data Logging: NMEA 0183/2000 format @ 1Hz
  • Integrated Sensors: For Rayfin HDE option - Tilt and Roll *Optional Depth, for  Rayfin HDC & Rayfin UHDF options - Tilt and Roll
• Live Video
  • Live Video Standards: for Rayfin HDE option - IP Ethernet *Optional Composite, for  Rayfin HDC option - HD over Coax  IP Ethernet, for Rayfin UHDF option - 4K over Fiber  IP Ethernet
  • Live Video Resolution: for Rayfin HDE option - 1080/30p/25p (480/30p/25p), for  Rayfin HDC option - 1080/30p/25p, for Rayfin UHDF option - 1080/30p/25p, 4K/30p/25p
  • Live Video Latency: for Rayfin HDE option - 225ms ± 50ms, for  Rayfin HDC & Rayfin UHDF options - 85ms ± 25ms
• LiquidOptics
  • Diagonal FOV: 81˚ min
  • Horizontal FOV: 71˚ min
  • Vertical FOV: 57˚ min
  • Distortion: Less than 3.4%
• Electrical
  • Voltage: 16.5 - 32.5 Vdc
  • Power (W): 7.5 (idle), 8 (recording), 13.5 (peak)
  • Control: Ethernet, Serial RS-485
  • Protection: Short circuit, under/over voltage, ESD, over-temperature
• Mechanical
  • Materials: Sapphire, Grade 5 Titanium
  • Weight: 1.6kg in water, 3.2kg in air
  • In-water OperatingTemperature: -20˚C to +30˚C
  • Depth Rating: 6000m
  • Dimensions: Length: 242mm, Front Ø: 101mm, Back Ø: 89mm
