Subsea Camera

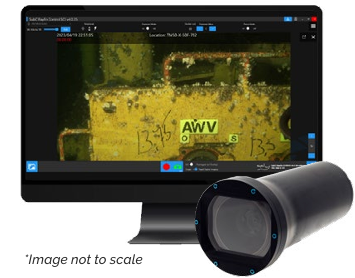

The Lightweight Subsea Camera with Rayfin Micro is designed for observation-class ROVs, delivering reliable, high-quality imaging for inspections and surveys. May be available in stock—contact us for further information, including delivery time.

Details

Technical specifications

Sensors & Lenses
- Lens and Optics: Water-corrected, scratch-resistant sapphire LiquidOptics™
- Angle of View (in water): 81° diagonal with less than 3.4% distortion
- Image Sensor: 12.3MP | 4056 x 3040 pixels | 12-bit CMOS
- Zoom: Digital (5x Optical zoom equivalent)
- Focus Range: 15cm to infinity
Data Formatting
- Ethernet Video: RTSP H.264 - 1080p | 720p | 4K coming soon
- Rapid Digital Imaging (RDI) Continuous Stills: Configurable, 2Hz (2 per second) tp 0.1Hz (1 every 10 seconds)
- Rapid Digital Imaging (RDI) Media transfer: Real-time digital stills and data to topside over Ethernet. Stored on HDD, SSD or NAS
- Media Formats: Video: MPEG4, H.264, H.265 | Stills: JPEG | Data: CSV
- Control: Over Ethernet with provided SubC software | Rayfin API is available for 3rd party integration
- Data Logging: NMEA 0183 & 2000 format @ 10Hz
- Clock Sources: NTP Server, Time from Data string
Electrical & Mechanical
- Aux Ports: 2 ports, capable of powering and controlling LED Strobe/Lamps, Lasers and other devices
- Voltage & Maximum Power: 12 - 32.5 Vdc @ 12Watts
- Protection: Short circuit | Under-over voltage | ESD | Over-temperature
- Temperature (in water): -20°C to +30°C
- Depth Rating: 500m
- Materials: Anodized 6061-T6 Aluminum, Delrin, Sapphire
- Weight (in water): 0.46kg
- Dimensions: Ø 77.5 | 165mm x 64.5mm
