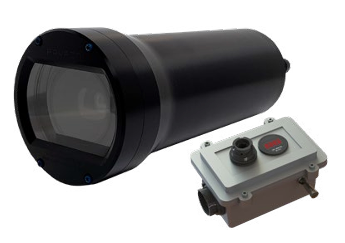

Rayfin Mk2 Coastal Subsea Camera

The Rayfin Mk2 Coastal Camera reduces costs by enabling power, video, control, and data over a single twisted pair or upgrading ROVs for topside video and data monitoring with live control. Contact us for further details, including delivery time.

Details

Technical specifications

Sensors & Lenses
- Sensor: Exmor RS™ CMOS 12-bit
- Image Size: 12.3MP - 4056 x 3040
- Max. Exposure Setting: Shutter Speed 1/65000, ISO 3200
- Lens: 4.52mm f/2.0
- Zoom: 12.3MP sensor zoom (5x optical equivalent)
- Focus Range: 15cm to infinity
Internal Recording System
- Image Format: JPEG and RAW
- Still Rate: 3Hz (JPEG) / 0.5Hz (RAW)
- Recording Resolution: HD and 4K UHD
- Recording Capacity: 40hr (HD) / 10.5hr (4K) - 512GB *Optional 1TB
- Recording Format: H.265 and H.264 - MP4
Live Video
- Live Video Standards: RTSP H.264
- Live Video Resolution: 1080/30p/25p or 720/30p/25p
- Latency: 225ms ± 50ms
LiquidOptics
- Diagonal FOV: 81˚ min.
- Horizontal FOV: 71˚ min
- Vertical FOV: 57˚ min
- Distortion: Less than 3.4%
Electrical
- Voltage: for Rayfin BPC option - 40-78 Vdc, for Rayfin ETP option - 18-32 Vdc
- Power (W): for Rayfin BPC option - 11 (idle), 12.4 (recording), 18.4 (peak) , for Rayfin ETP option - 7 (idle), 8 (recording), 13.5 (peak)
- Control: for Rayfin BPC option - SubC Boost Power Comms , for Rayfin ETP option - Ethernet over Twisted Pair
- Protection: Short circuit under/over voltage, ESD, over-temperature
- Bitrate: (<200m - 8MB/sec.), (325m - 6MB/sec.), (500m - 1.5MB/sec.)
- Built-in Sensors: for Rayfin BPC option - Depth, water temperature, tilt and roll , for Rayfin ETP option - Tilt and roll
Mechanical
- Materials: Sapphire, Anodized Aluminum
- Dimensions: Length: 241.56mm, Front Ø: 101mm, Back Ø: 89mm
- Weight: for Rayfin BPC option - 0.8kg in water, 2.4 kg in air, for Rayfin ETP option - 0.75 kg in water, 2.2kg in air
- In-water OperatingTemperature: -20˚C to +30˚C
- Depth Rating: 500m
