2.75 Te WLL ROV LARS and HPU

ROV LARS and HPU with 2.75 Te working load limit available for sale (Ref.: DS62)

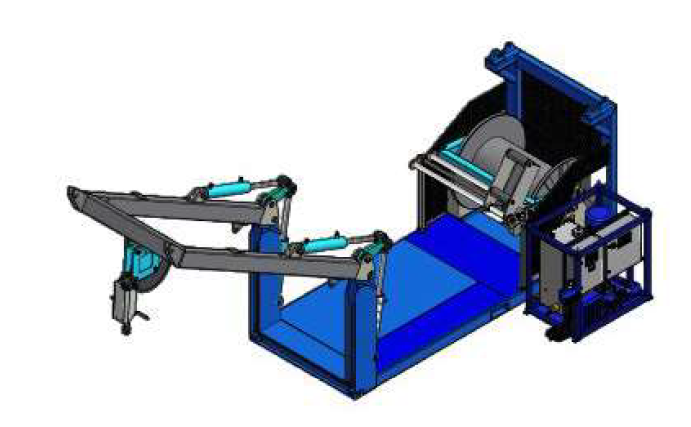

The ROV LARS comprises of an A-Frame that is mounted on a common skid complete a sheave wheel and latch mechanism, an umbilical winch with level wind and is connected to its own dedicated 37kW HPU. The LARS has the ability to land the ROV on the A-frame skid.

The A-Frame incorporates a head sheave with a 900mm tread diameter, a latch, docking cushion, load cell and 220° rotator together with through frame damping control of the latch function. The sheave mounting pivots to fleet with the umbilical, further the sheave is mounted and damped to allow a transverse off lead angles of 45° outboard and 15° inboard.
