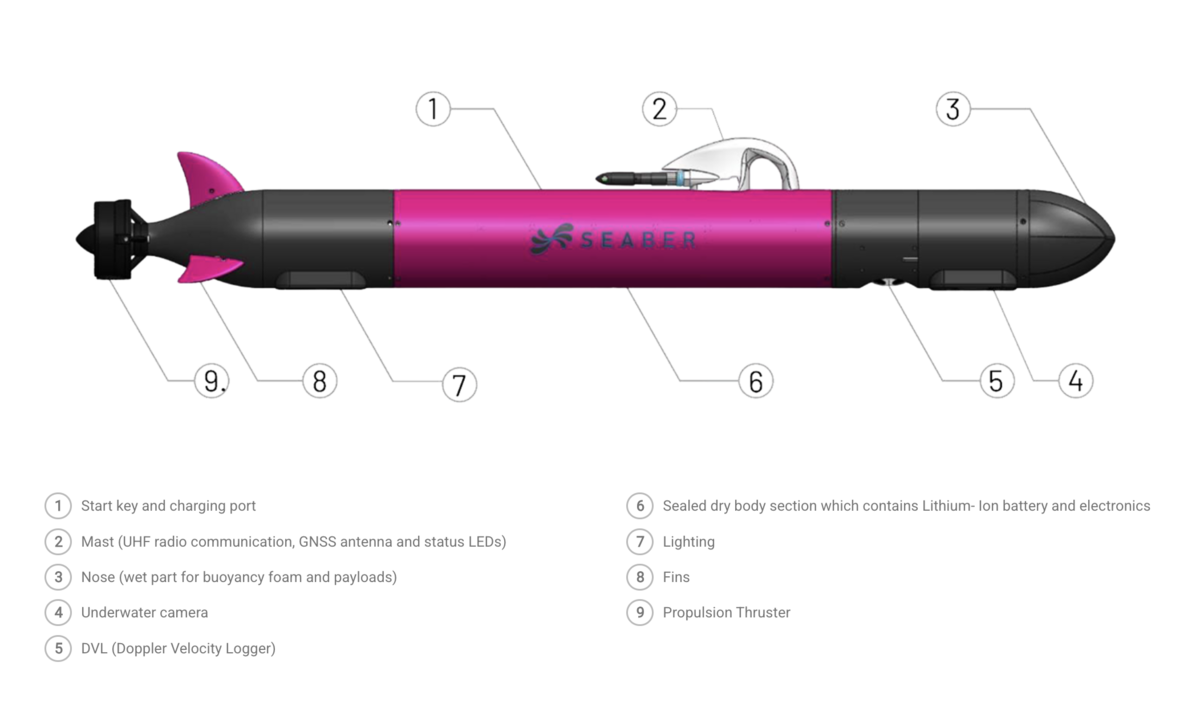

Yuco-Lumen AUV

The YUCO-LUMEN features an underwater camera from Arctic Rays for geo-referenced digital capture of still images and video. For further information and expected delivery timelines, reach out to us.

Details

This AUV comes with a DVL, to compensate current drift, improve positioning and keep altitude from the sea floor. It can be equipped with underwater acoustic positioning and communication module.

Technical features

Length: 110 cm
Body Diameter: 12 cm
Weight in air: 10 kg
Depth rating: 300 m
Speed: 2 to 6 knots
Endurance: 10 hours @ 3 knots / 6 hours @4 knots (with Li-Ion battery)
Navigation accuracy <5m absolute positioning within USBL surface module range
Energy Rechargeable: 600Wh/14.8V Li-Ion
Battery Charger: 100 to 240 VAC 50 to 60 Hz
Programming interface: SEAPLAN software by SEABER
Surface Communication
- LoRa UHF point-to-point communication with SEACOMM device For YUCO status messages and orders
- 868Mhz frequency range (depends on region)
Accessories
- Rugged transport case
- Spare parts and tools in waterproof bag

Sensors

DVL
- Model Waterlinked A50
- Frequency: 1 MHz
- Beam angle: 22.5 degrees
- Ping rate: 4-26 Hz
- Max altitude: 50 meters
- Max velocity: 3.75 m/s
- Velocity resolution: 0.1 mm/s
