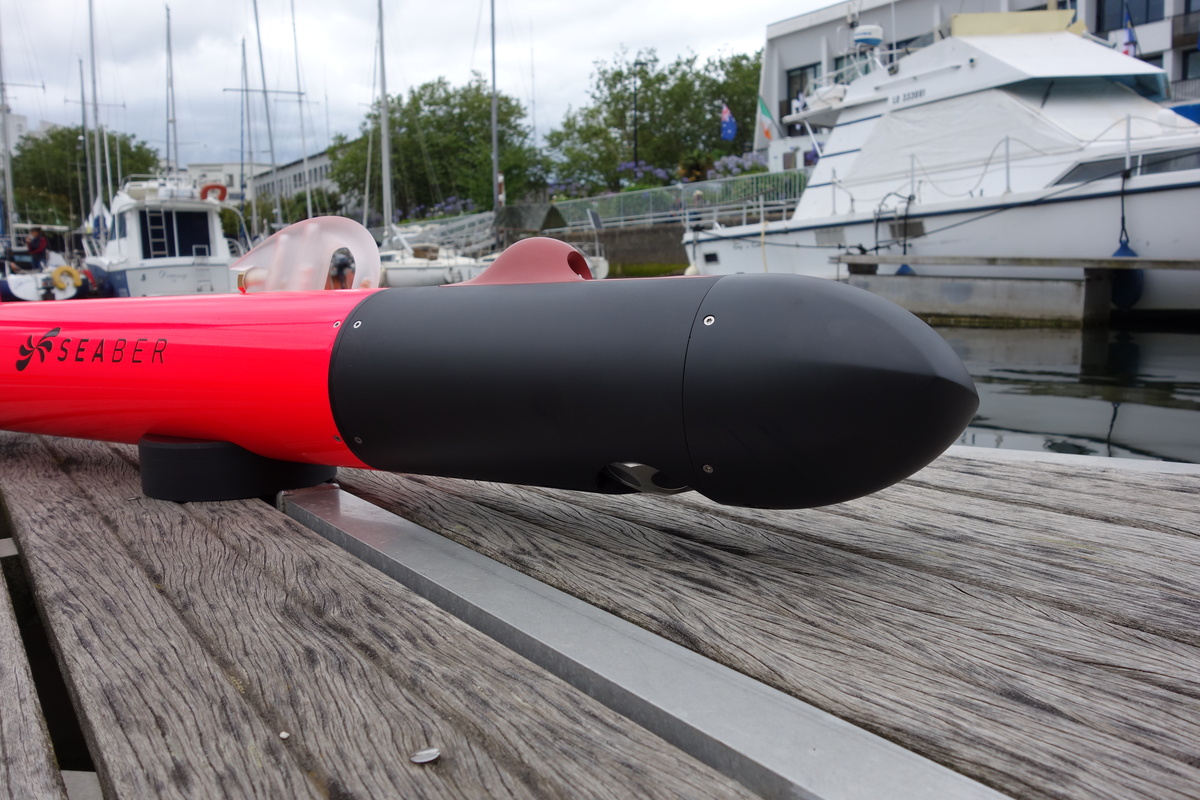

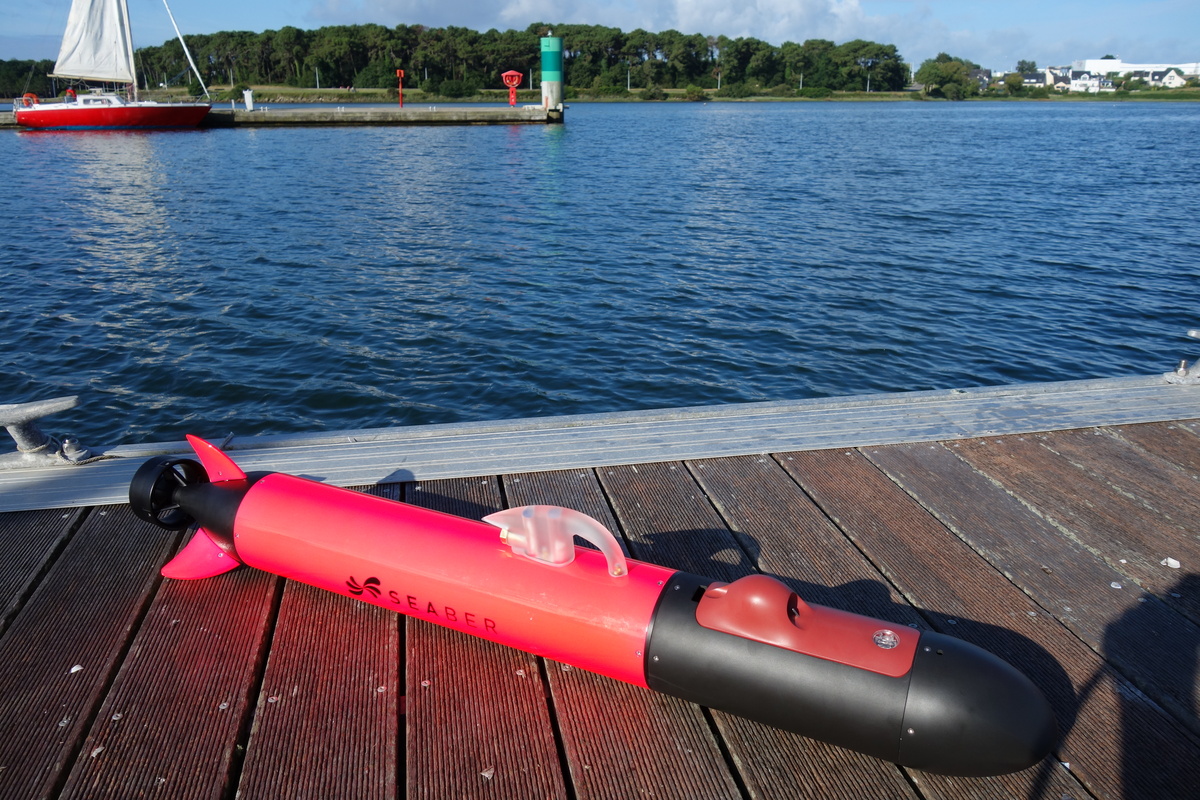

Yuco-CTD Mini AUV

Technical features

• Length: 112 cm
• Body Diameter: 12 cm
• Weight in air: 10 kg
• Depth rating: 300 m
• Speed: 3 to 6 knots
• Endurance: 10 hours @ 3 knots / 6 hours @4 knots (with Li-Ion battery)
• Navigation accuracy: ±2%of distance travelled with DVL
• Energy Rechargeable: 600Wh/14.8V Li-Ion or rechargeable 200Wh/14.4V NiMH
• Battery Charger: 100 to 240 VAC 50 to 60 Hz
• Programming interface: SEAPLAN software by SEABER
• Surface Communication
  • LoRa UHF point-to-point communication with SEACOMM device (see below)
  • For YUCO status messages and orders
  • 868Mhz frequency range (depends on region)
  • PYCOM LOPY4 chip with available regions: AS923, AU915, EU868, US915, IN865
  • TX Power: 25mW
• Available Accessories
  • Rugged transport case
  • Spare parts and tools in waterproof bag

Sensor

• CTD
• Temperature
  • Range: -5 °C to 42 °C
  • Initial accuracy:
    • ±0.002° (-5 to +35 °C)
    • ±0.004° (+35 to +42 °C)
  • Resolution: 0.00005 °C
  • Typical stability: ±0.002 °C per year
  • Time constant: < 1 s (standard), <0.1 s
    • Conductivity
  • Range: 0 to 85 mS/cm
  • Initial accuracy: ±0.003 mS/cm
  • Resolution: 0.001 mS/cm
  • Typical stability: ±0.010 mS/cm per year
  • Resolution
    • 0.00005 °C
    • 0.00005 °C
• DVL
  • Model: Waterlinked A50
  • Frequency: 1 MHz
  • Beam angle: 22.5 degrees
  • Ping rate: 4-26 Hz
  • Max altitude: 50 meters
  • Max velocity: 3.75 m/s
  • Velocity resolution: 0.1 mm/s

Contact us for further information on pricing
