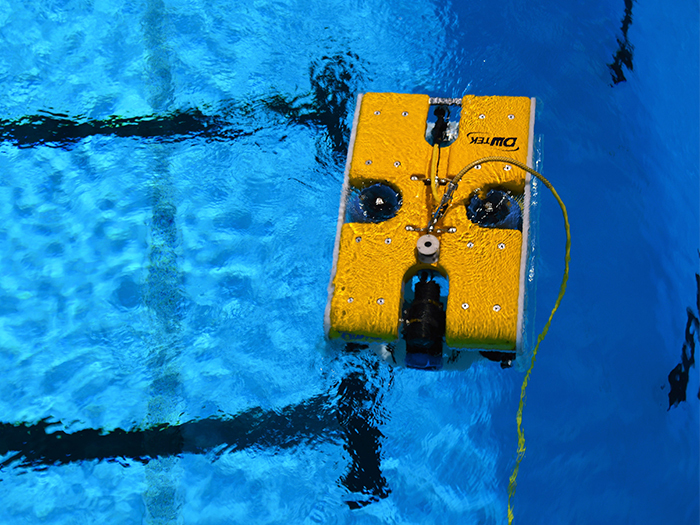

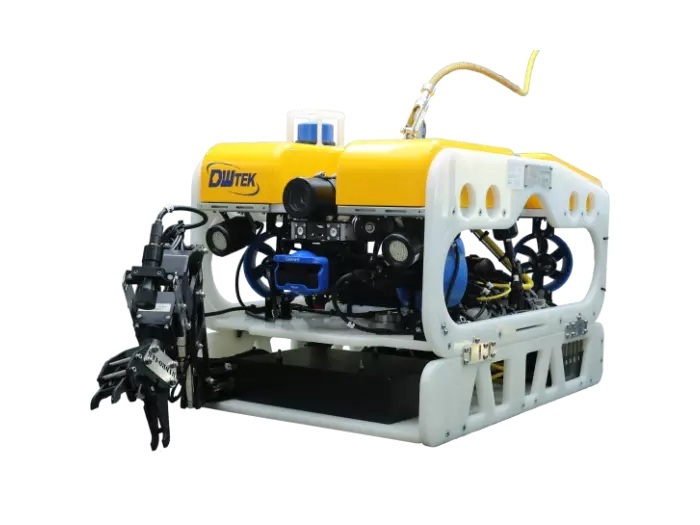

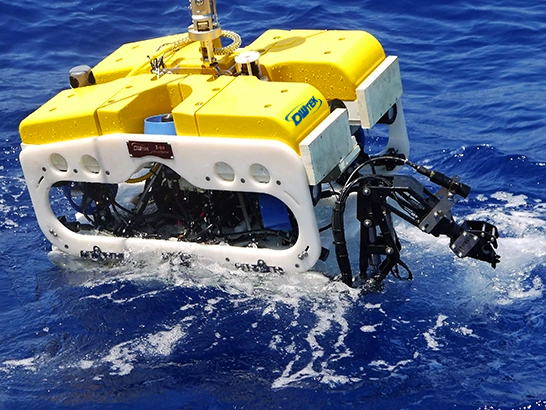

Investigator 90+ ROV

Technical specifications

• Dimensions (L x W x H): 1100 x 700 x 530 mm
• Weight in air: 130 kg
• Depth rating: 500 m (standard)1,000 m (optional)
• Payload: 25 kg (adjustable)

Vehicle Power and Performance

• Propulsion
  • Horizontal thruster: DWT8537 x 4
  • Vertical thruster: DWT8537 x 2
• Thrust
  • Forward/reverse: 70 kgf
  • Lateral: 60 kgf
  • Vertical: 48 kgf

Vehicle Manipulators and Tooling

• ManipulatorUp to  5 axis manipulator x1(optional)
• Wrist camera assemblySD Camera x1 (optional)
• LaserOptional
• CP ProbeOptional

Vehicle Camera and Lighting

• Camera
  • HD x1 (standard)
  • Up to SD x4  (optional)
• Lighting
  • 150W x2  (standard)

Vehicle Control and Navigation

• Automatic control: Optional
• Heading and altitude sensors
  • Heading (standard)
  • Altitude (optional)
• Depth sensor: Standard
• Obstacle avoidance sonar: Optional
• DVL: Optional
• INS: Optional
• USBL: Optional
• Cable tracking system: Optional

Vehicle optional Power and Data Interfaces

• Data linksOptical fiber
• Power
  • Input (VAC): 220V - Phase 50/60Hz
  • Output (VDC): 300V(6kW)

Tether Management System (TMS)

• Type: Cage
• Electro-optical tether: 150 m
• Cameras
  • SD x2 (standard)
  • Up to SD x2 (optional)
• Lighting
  • 23W x2 (standard)
  • Up to 23W x4 (optional)
• Optional: USBL/Current meter/Sonar/Depth

Launch and Recovery Systems

• (LARS): Optional

Contact us for further information on pricing
