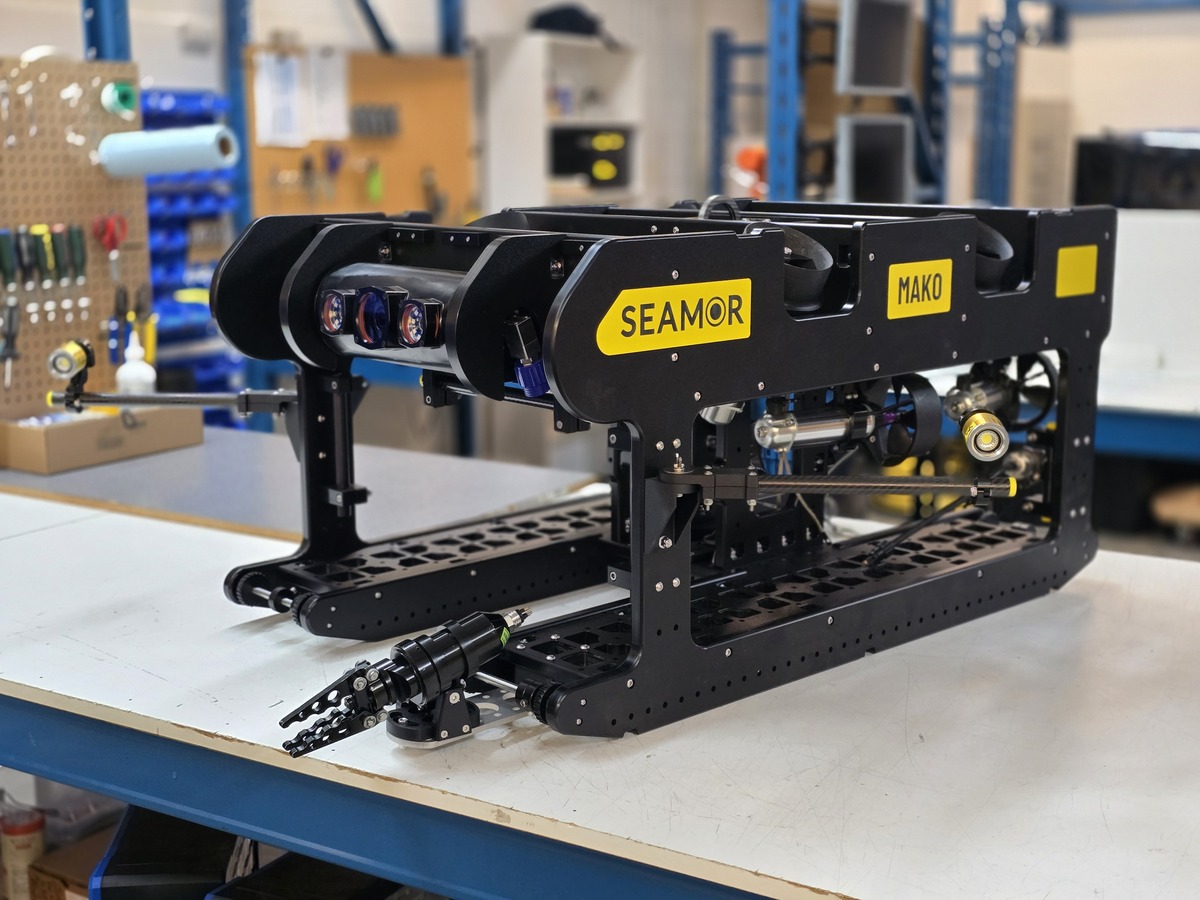

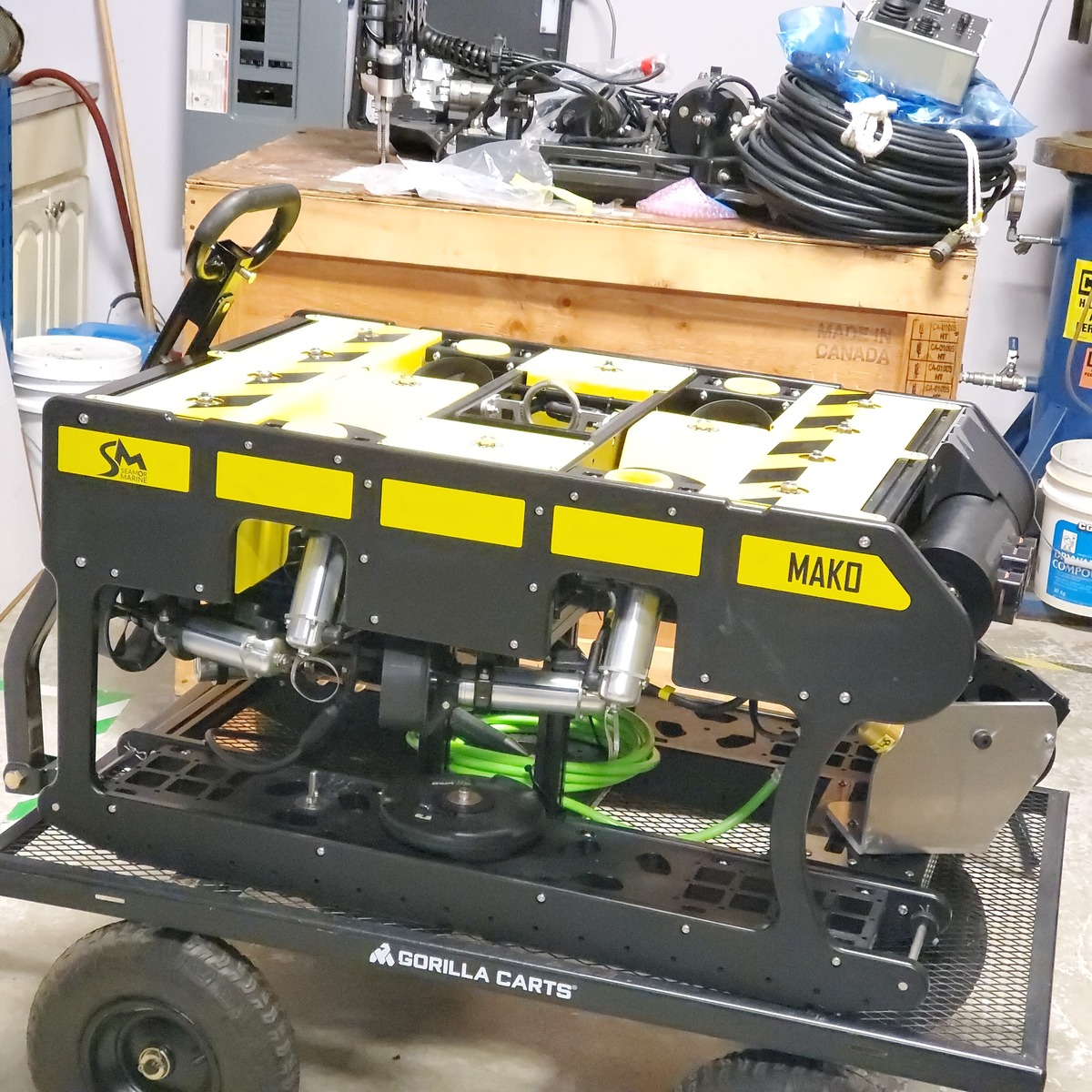

Seamor Mako Obs ROV

Seamor MAKO ROV features 8 thrusters, HD cameras, 14–22.5 kg payload, and a 300–600 m depth rating. It offers modular design, high manoeuvrability and ease of deployment for versatile underwater operations.

DIMENSIONS & ATTRIBUTES

• Depth Rating – 300 m (1,000 ft) or 600 m (2,000 ft)
• Size (L x W x H) – 840 mm x 635 mm x 674 mm (33” x 25” x 26.5”)
• Diagonal – 890 mm (35”)
• Weight in Air – 72 kg (160 lb) (8-thruster vehicle trimmed for fresh water)
• Construction – Anodized aluminum, stainless steel, syntactic foam & marine-grade polymers
• Payload – 14 kg (30 lb) standard; can be upgraded to 22.5 kg (50 lb)

THRUSTERS

• Configuration – 4 horizontal & 4 vertical/lateral thrusters, built-in short-circuit protection on each channel
• Speed – 2 knots (dependent on environment & configuration)

AUXILIARY CAMERA WITH BUILT-IN LED LIGHTING

• Type – Colour or black & white, low light
• Format – NTSC or PAL
• Focus – Fixed

TETHER

• Available in twisted pair or fibre optic configurations
• Length – 335 m (1,100 ft) standard starting length; max. std. length 500 m (1,640 ft) for twisted pair; 625 m (2,050 ft) for fiber optic, on manual reel
• Diameter – 10 mm / 0.4" (nominal)
• Breaking Strength – 700 kgf, Kevlar reinforced
• Weight in Water – Neutrally buoyant in fresh water

FORWARD CAMERA & LIGHTS

• Format – NTSC or PAL (full broadcast-quality)
• Focus – Manual & Automatic
• Zoom – 3x optical, up to 32x total zoom
• Tilt Range : +/- 90 degree rotation
• Lights : 2 x 1,500 lumens (3,000 lumens) dimmable high-intensity LED
• Lasers – Optional parallel green lasers on 150 mm (6") baseline for scale reference

CONTROL SYSTEM

• Pelican Case mounted controller
• Built-in 15” LCD monitor
• Digital video recorder included
• Video Overlay – Depth, heading, auto-depth, auto-heading, pitch/roll, tether turns counter, date & time

SENSORS

• Pressure / Depth
• Compass Heading
• Pitch & Roll
• Dedicated leak & Temperature Sensors – Dedicated in both the electronics & camera canister

 OPTIONS

• Aux Camera
• High brightness monitor
• Extra monitor in power   supply case
• Upgraded payload   (22.5 kg/50 lb)
• Hand-held controller
• Laser
• HD video
• Sonar integration (Imagenex, Blueview, Soundmetrics, Tritech, etc)
• Tritech Micron Echosounder
• Coda Octopus Echoscope
• C500 #D Sonar
• USBL integration:
• LinkQuest Tracklink 1500LC USBL
• Tritech MicronNav USBL MicroNav USBL GPS antenna option
• SEAMOR Auxiliary LED lights
• Dual-function gripper (open/close & jaw rotation)
• 7 Function Hydraulic  Articulating Robotic  Manipulator (7 F-H-ARM
• Interchangeable skid-  mounted instrumentation or tooling platforms
• CT & UT probe integration
• Altimeter with auto-altitude
