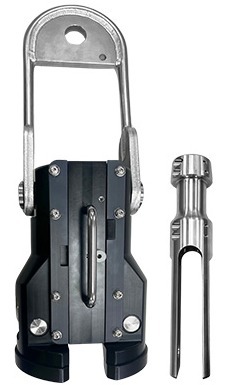

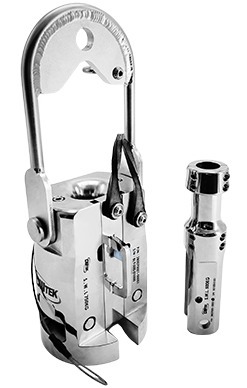

ROV Lock and Latch

The ROV Lock and Latch System (running latch) is designed for the deployment and recovery of ROVs operating in free-swimming mode. Stock available for immediate dispatch. Contact us for further details.

Details

ROV Lock and latch comes in three configurations

Bullet 20mm
- Model: DWLH-2005
- Max. Cable Diameter 20 mm
- Bullet Length: 160 mm
- Safe Working Load: 0.5 ton
- Material
  - Latch: Stainless Steel
  - Bullet: Stainless Steel
- Weight in Air: 5.5 kg
Bullet 22mm
- Model: DWLH-2205
- Max. Cable Diameter: 22 mm
- Bullet Length: 200 mm
- Safe Working Load: 0.5 ton
- Material
  - Latch: Stainless Steel
  - Bullet: Stainless Steel
- Weight in Air: 5.5 kg
Bullet: 35mm
- Model: DWLH-3520
- Max. Cable Diameter: 35 mm
- Bullet Length: 320 mm
- Safe Working Load: 2 ton
- Material
  - Latch: Hard Anodized 6061-T6 Aluminum
  - Bullet: Stainless Steel
- Weight in Air: 10 kg
