Seamor Chinook Obs ROV

 DIMENSIONS & ATTRIBUTES

• Depth Rating - 300 m (1,000') or 600 m (2,000') with deep water model
• Format  Size (L x W x H) - 686 mm x 384 mm x 406 mm (27” x 15.1” x 16”)
• Diagonal - 533 mm ( 21”)
• Weight in Air - 33 Kg (72 lbs) (6-thruster vehicle trimmed for fresh water)
• Construction - Anodized aluminum, stainless steel, syntactic foam & marine-grade polymers

 THRUSTERS

• Configuration -  2 or 4 horizontal & 2 vertical/lateral   thrusters, built-in short-circuit   protection on each channel
• Speed -  2 knots (dependent on   environment & configuration)

 AUXILIARY CAMERA & LIGHTS

• Type -  Colour or black & white, low light
• Format -   NTSC or PAL
• Focus -   Fixed
• Light -   2 x 1,500 lumens (3,000   lumens total) on/off control

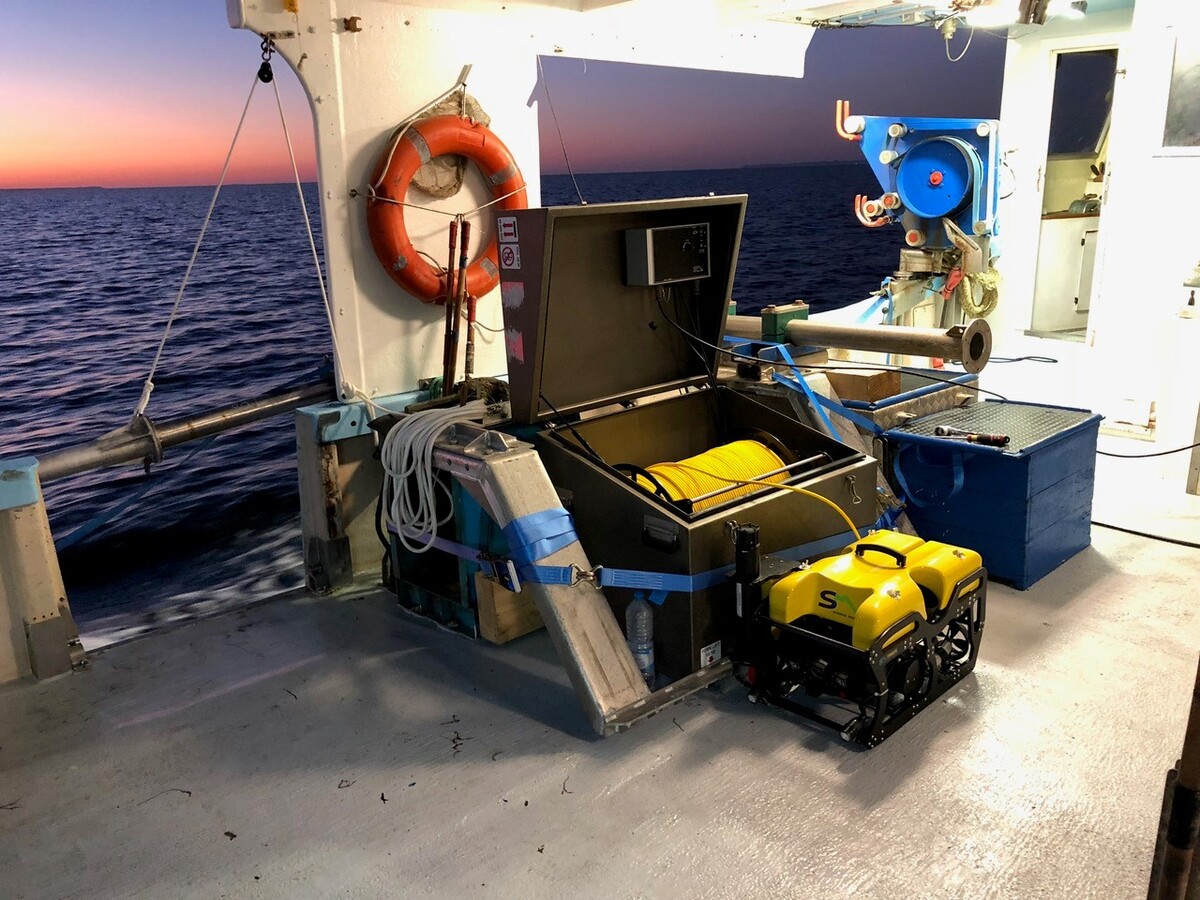

• TETHER - Available in twisted pair or fibre optic configurations
• Length -  335 m (1,100') standard starting  length; max. std. length 500 m (1,640') for twisted pair; 625 m (2,050') for fibre optic, on manual reel Diametre - 10 mm / 0.4" (nominal)
• Breaking Strength - 700 kg f, Kevlar reinforced
• Weight in Water - Neutrally buoyant in fresh water

 FORWARD CAMERA   & LIGHTS

•  Format - NTSC or PAL (full broadcast-  quality)
•  Focus - Manual & Automatic
•  Zoom - 3x optical, up to 32x total zoom
•  Tilt Range : +/- 90 degree rotation
•  Lights - 2 x 1,500 lumens (3,000 lumens) dimmable high - intensity LED
•  Lasers -  Optional parallel green lasers on 150 mm (6")  baseline for  scale reference

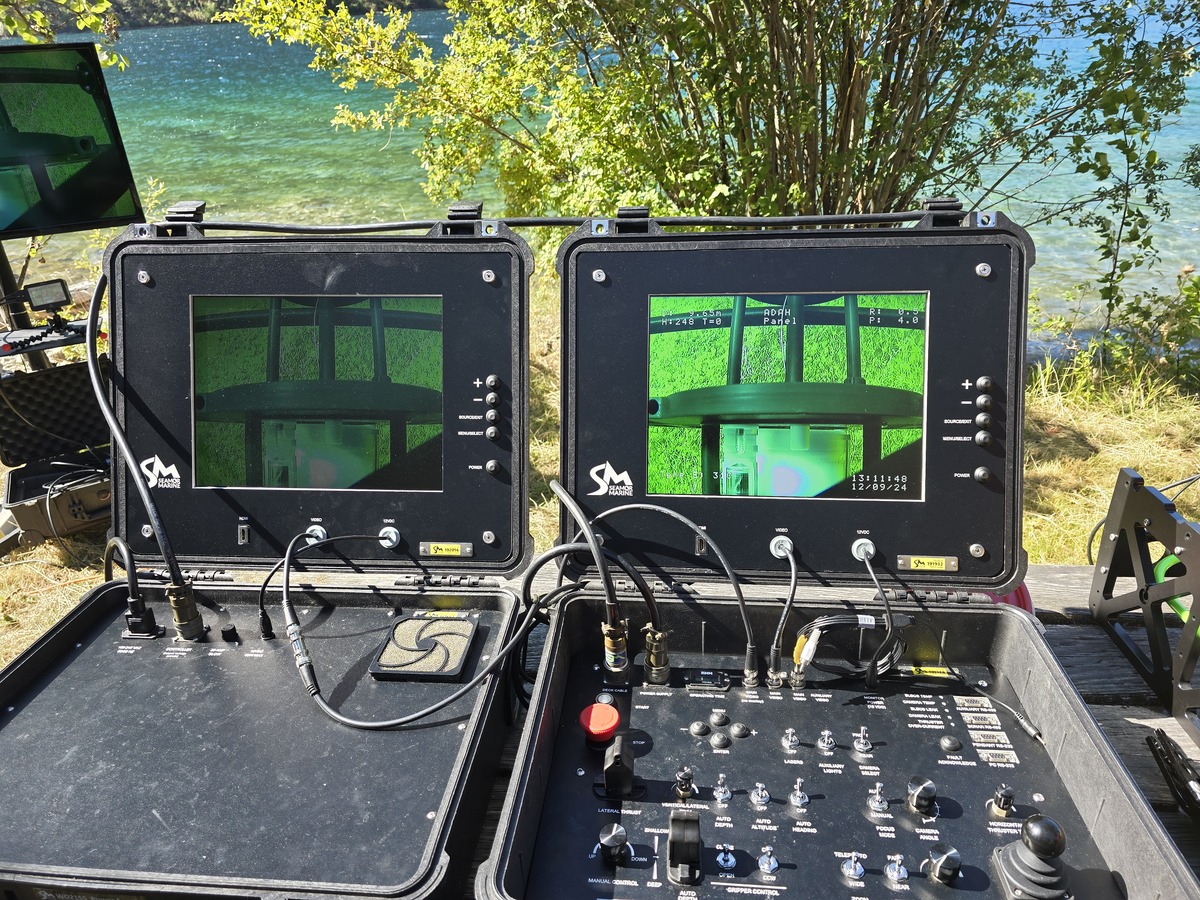

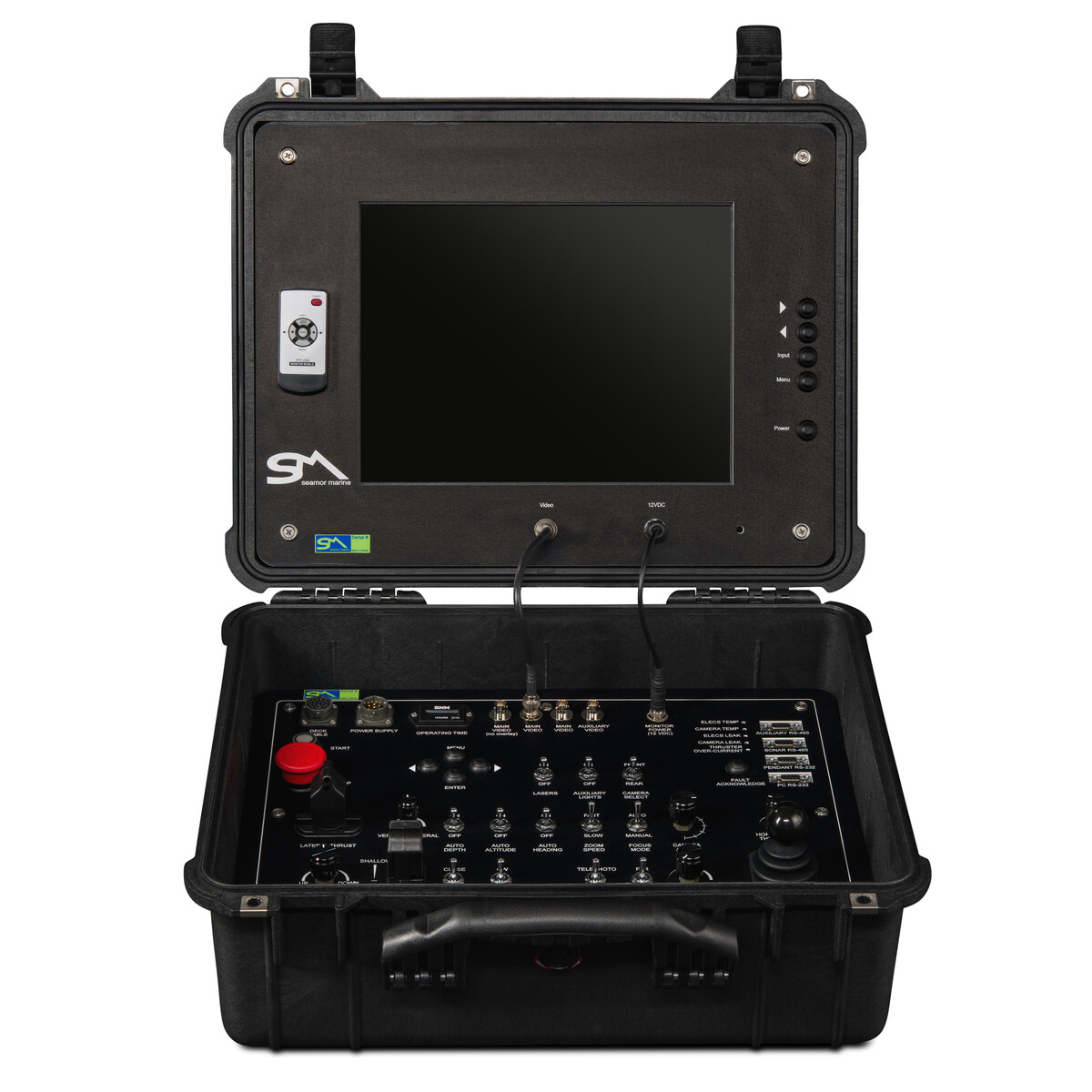

 CONTROL SYSTEM

• Pelican Case mounted controller
• Built-in 15” LCD monitor

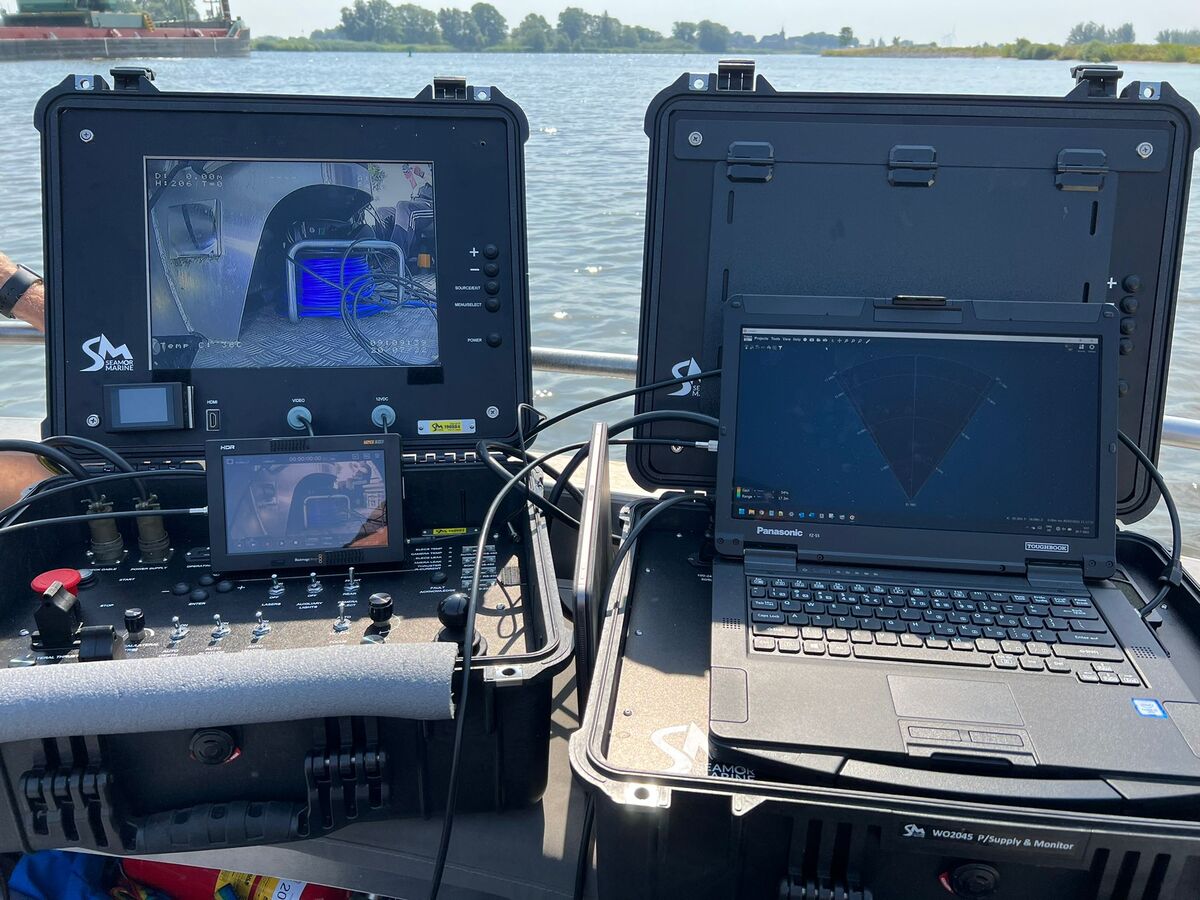

• Digital video recorder  included
• Video overlay: depth, heading, auto-depth, auto-heading, pitch/roll, tether turns counter, date & time

 SENSORS

• Pressure/depth
• Compass heading
• Pitch & roll
• Dedicated leak & temperature sensors in both the electronics & camera canisters

  OPTIONS

• Aux Camera
• High brightness monitor
• Extra monitor in power supply case
• Aux float that adds extra payload (1.5lbs/0.7kg)
• Hand-held controller
• Laser
• HD video

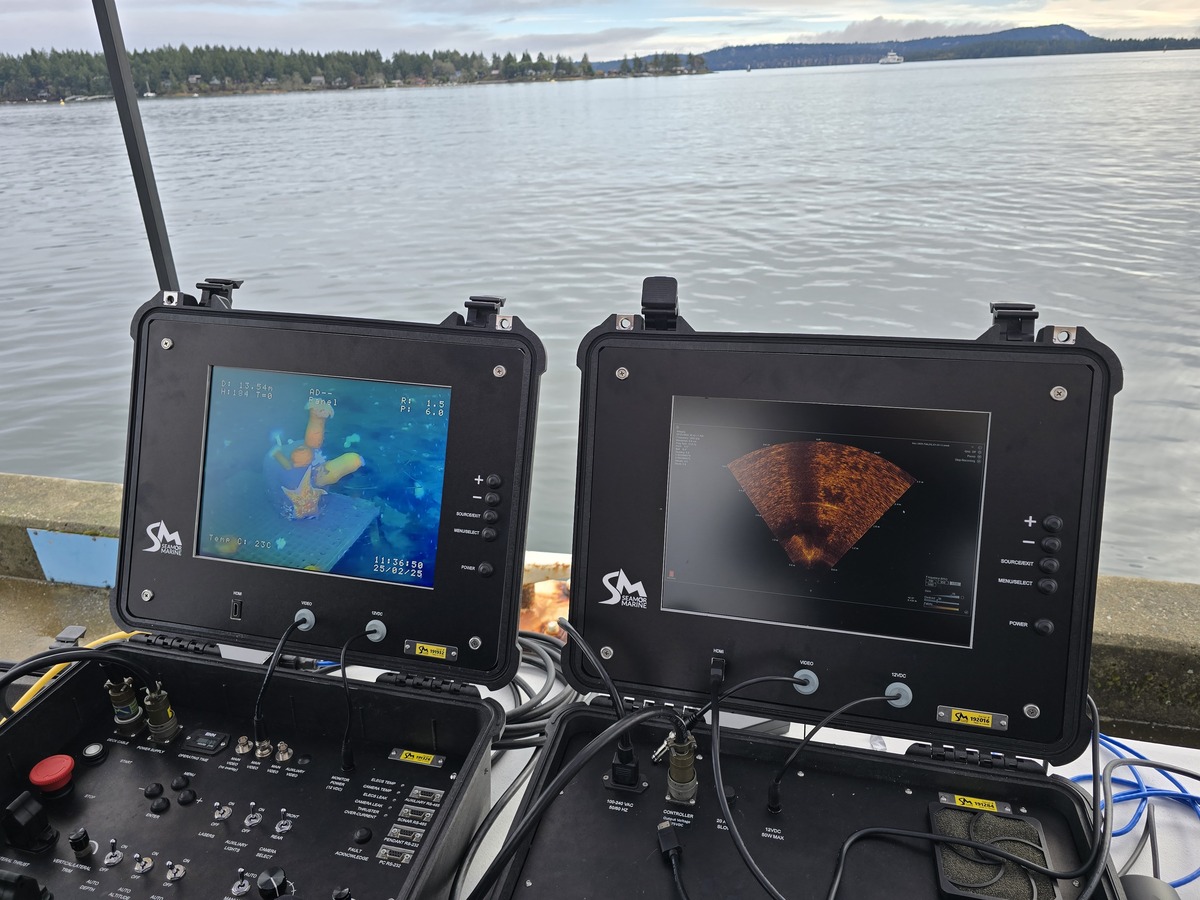

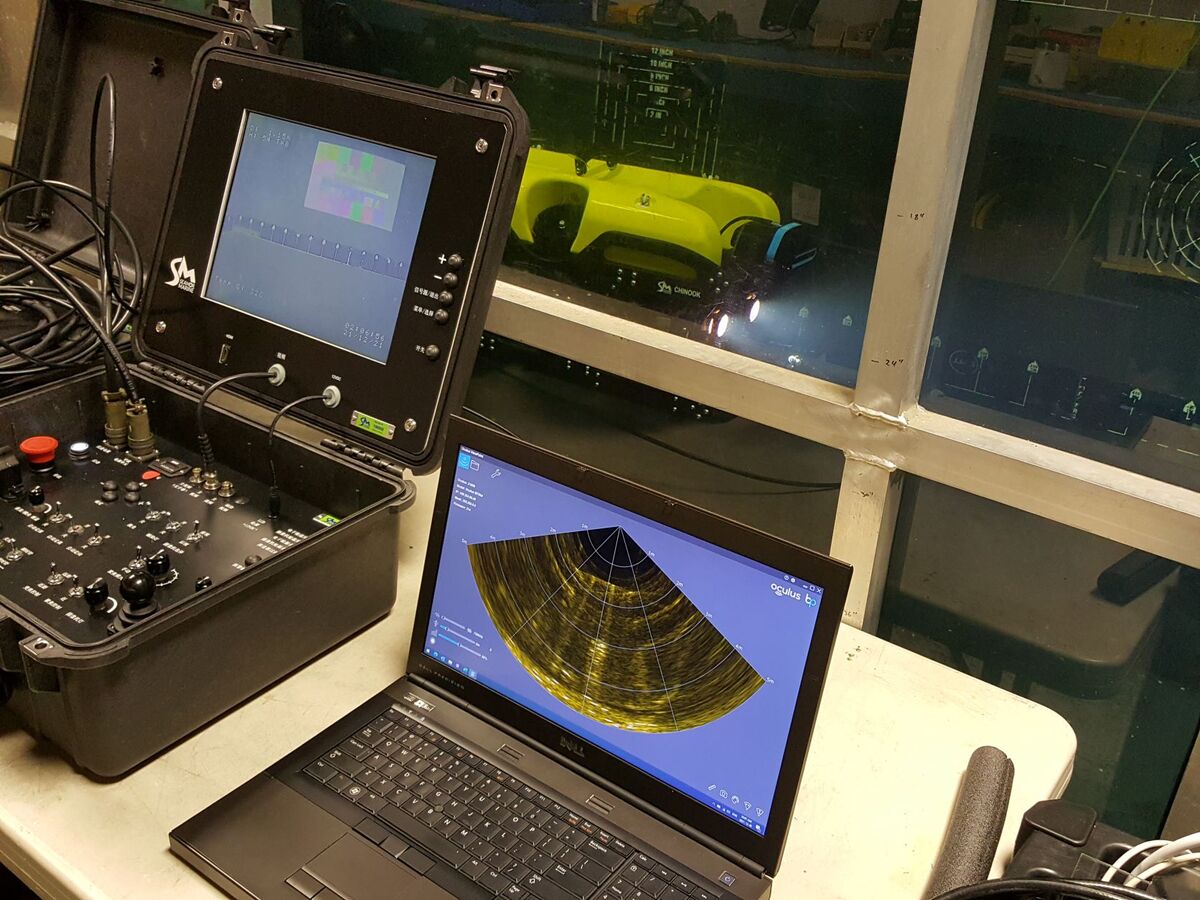

• Sonar integration:
  • Imagenex 852 Sonar

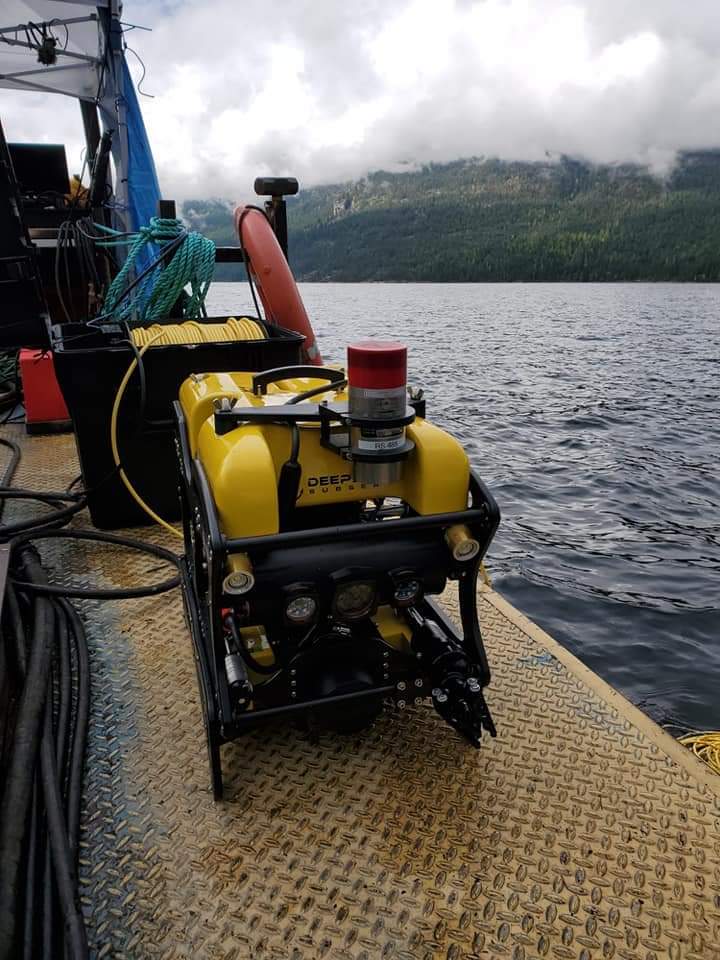

  • Imagenex 881A Sonar
  • Imagenex 965A Sonar
  • Blueview M900
  • Soundmetrics Aris 3000

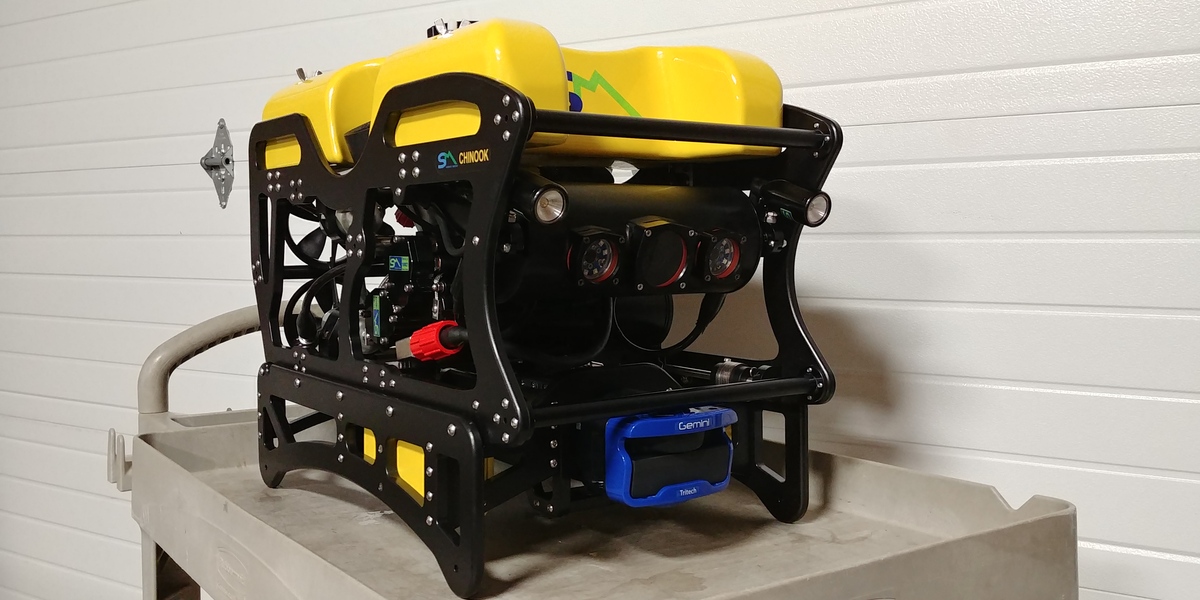

  • Tritech Gemini 720is
  • Tritech Gemini 720im

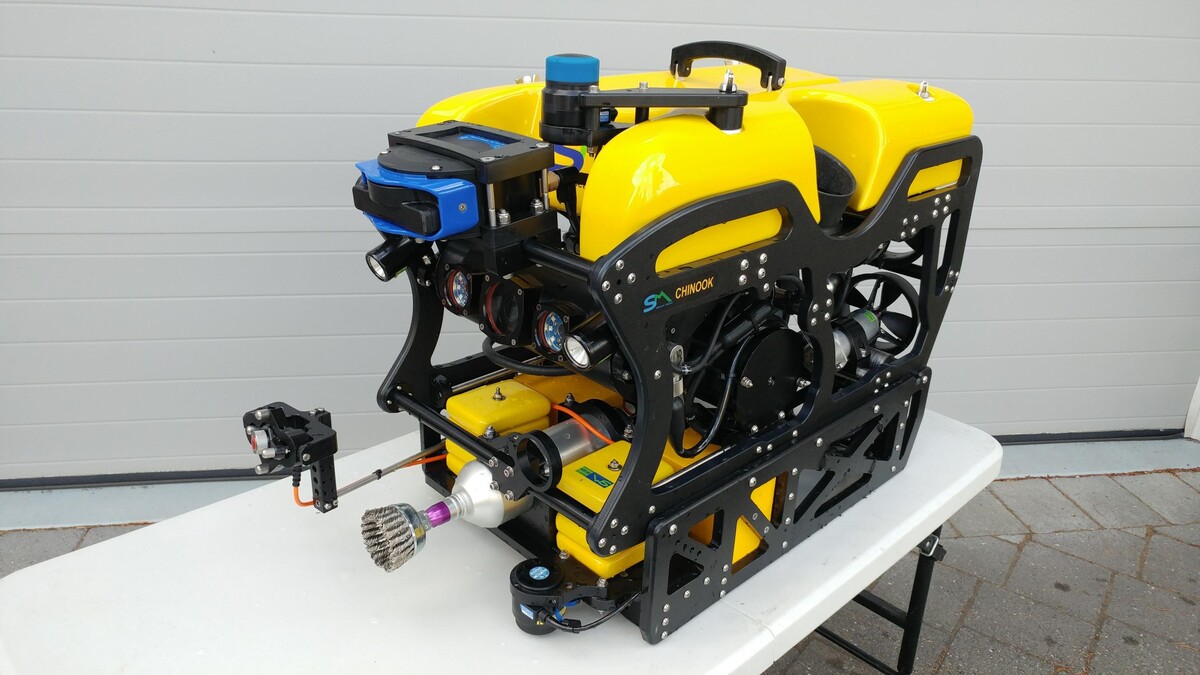

  • Tritech Gemini 720ik
  • Tritech Micron DST sonar
  • Tritech MicronNav USBL
  • MicroNav USBL GPS  antenna option
  • Tritech Micron Echosounder
• USBL integration:
  • LinkQuest Tracklink 1500LC  USBL
  • Tritech MicronNav USBL  MicroNav USBL GPS  antenna option
• SEAMOR Auxiliary LED lights

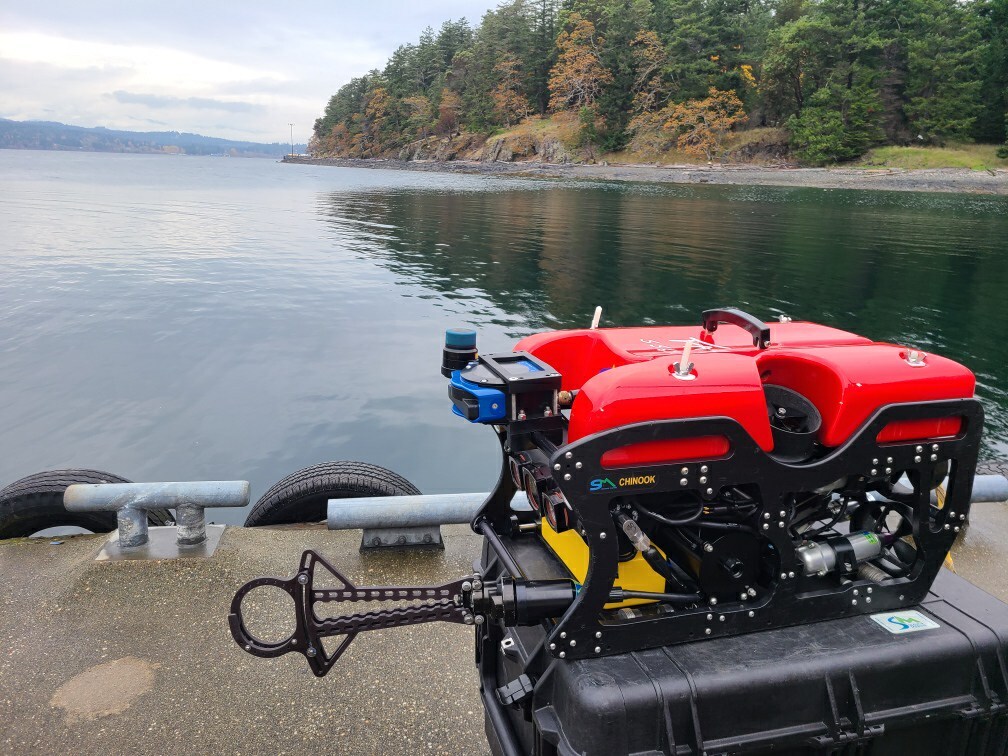

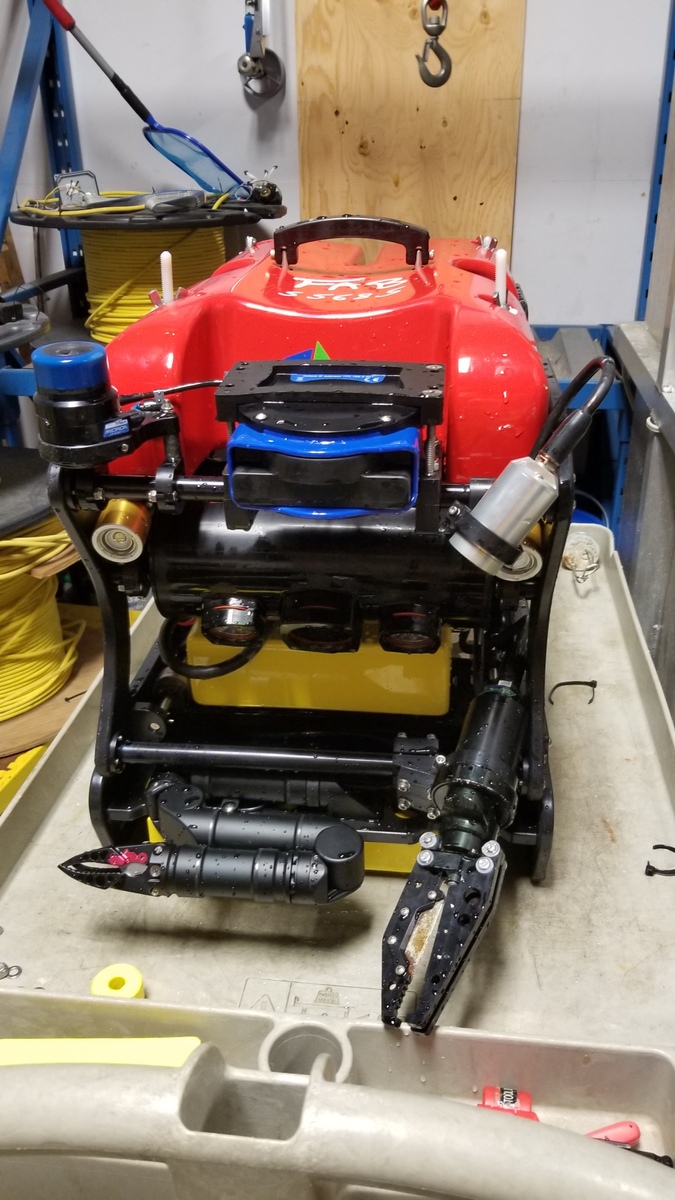

• Dual-function gripper (open/close & jaw rotation) &/or cutter
• Rotating Brush
• Interchangeable skid- mounted instrumentation or tooling platforms

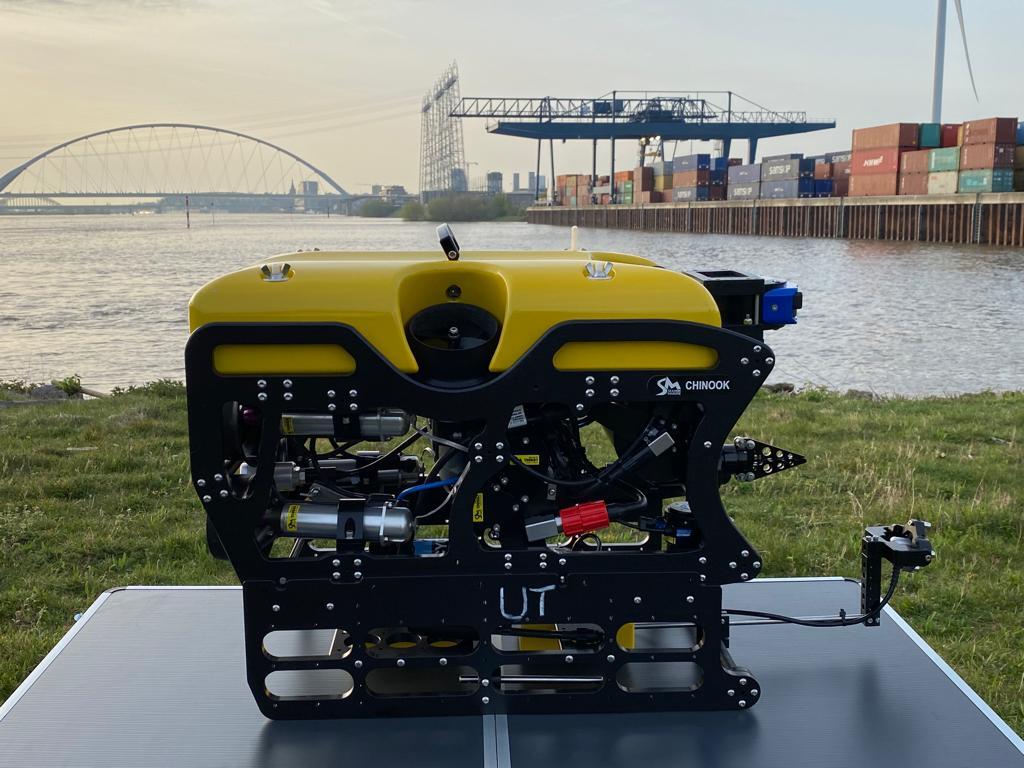

• CT & UT probe integration
• Altimeter with auto altitude control
